2009 Subaru Outback F4-2.5L SOHCFACTORY OEM SERVICE PROCEDURE
Tightening Torques
Cylinder Head Specifications
Camshaft Cap Specifications
Cylinder block connecting bolts Specifications
Connecting rod nut 45 Nm (4.6 kgf-m, 33.2 ft lb)
Crank pulley bolt Specifications
Flywheel M/T 72 Nm (7.3 kgf-m, 53.1 ft lb)
Drive plate A/T 72 Nm (7.3 kgf-m, 53.1 ft lb)
Oil Pump 6.4 N-m (0. 7 kgf-m, 4.7 ft-lb)

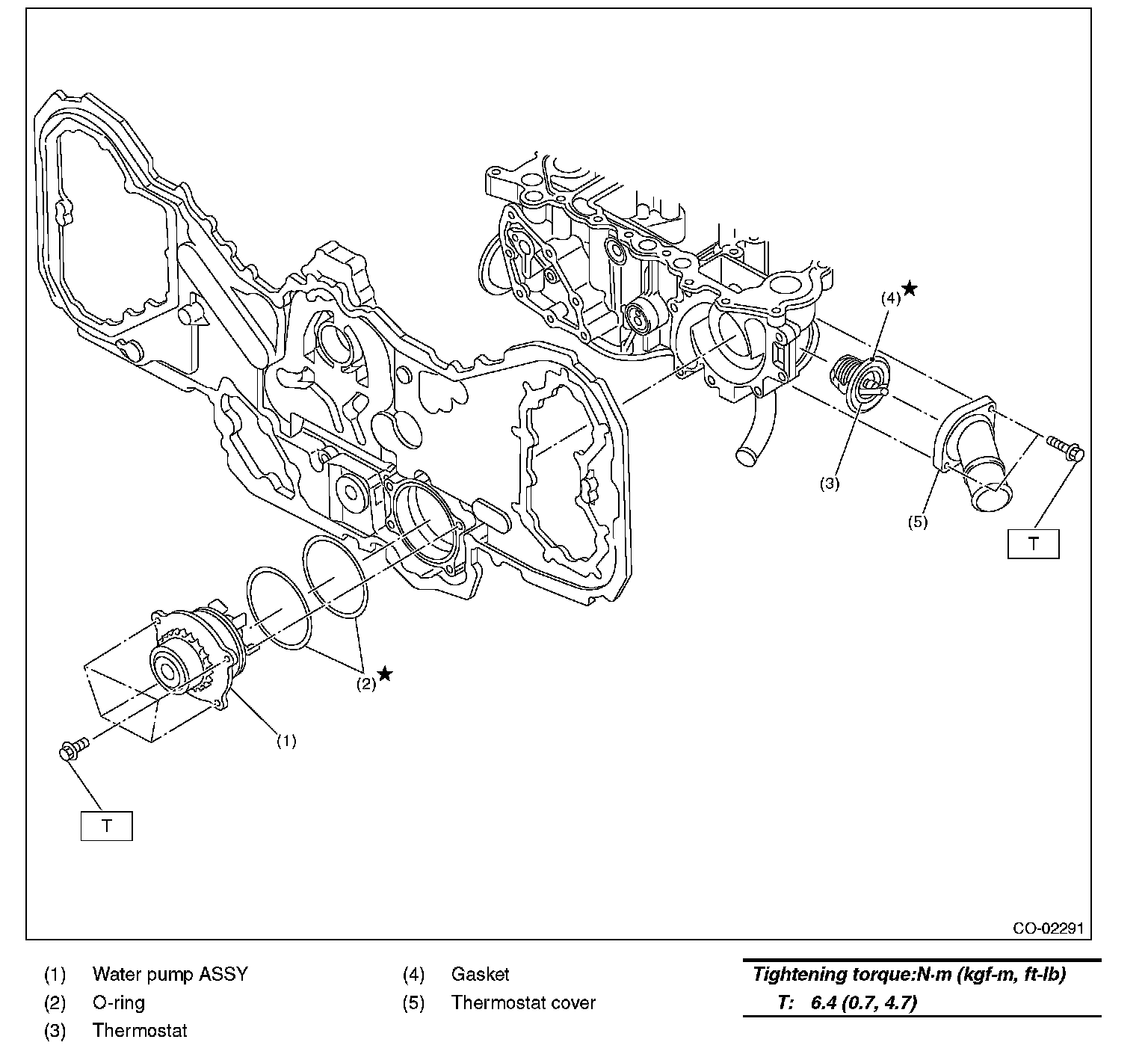

Water Pump
Camshaft Cap Specifications
Cylinder block connecting bolts Specifications
Connecting rod nut 45 Nm (4.6 kgf-m, 33.2 ft lb)
Crank pulley bolt Specifications
Flywheel M/T 72 Nm (7.3 kgf-m, 53.1 ft lb)
Drive plate A/T 72 Nm (7.3 kgf-m, 53.1 ft lb)
Oil Pump 6.4 N-m (0. 7 kgf-m, 4.7 ft-lb)
Water Pump
