2009 Subaru Legacy RFACTORY OEM SERVICE PROCEDURE
Fuel Pump Control Unit: Removal
- Disconnect the ground cable from battery.
- Remove the rear quarter trim of the left side. (Wagon model) Refer to REMOVAL , Rear Quarter Trim.
- Peel the trunk side trim of the left side. (Sedan model)

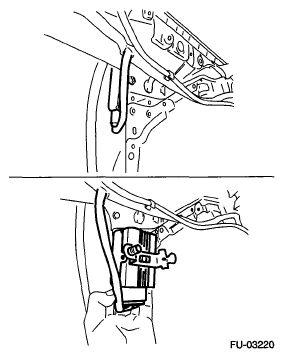

- Remove the fuel pump control unit. Wagon model
- Sedan model
- Sedan model
- Disconnect the connector from fuel pump control unit.
