2009 Subaru Legacy LimitedFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal
- Set the vehicle on a lift.
- Disconnect the ground cable from battery.
- Lift up the vehicle.
- Remove the under cover.
- Drain approximately 3.0 fi (3.2 US qt, 2.6 lmp qt) of coolant. Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
- Remove the air intake chamber. Refer to REMOVAL , Air Intake Chamber.
- Disconnect the throttle position sensor connector (A) and manifold absolute pressure sensor connector (B).

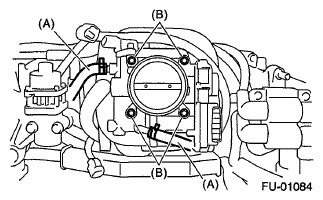

- Disconnect the engine coolant hoses (A) from the throttle body.
- Remove the bolts (B) which secure the throttle body to the intake manifold, and remove the throttle body.
