2009 Subaru Forester XTFACTORY OEM SERVICE PROCEDURE
LH Side
- Remove the collector cover.
- Remove the battery and battery carrier.
- Disconnect the air duct from the secondary air pump.

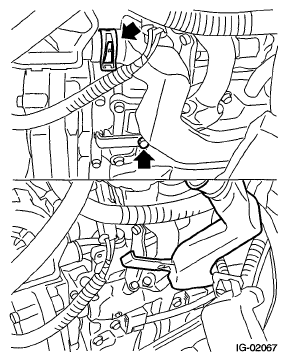

- Remove the bolts that attach the air pump duct to the rocker cover LH, and raise the air pump duct.
- Disconnect the connector from ignition coil.
- Remove the ignition coil.NOTE: Turn #4 ignition coil by 180 degrees to remove it.
