2008 Subaru Outback F4-2.5L SOHCFACTORY OEM SERVICE PROCEDURE
Computers and Control Systems: Locations
AIR INTAKE SYSTEM
CRANKSHAFT POSITION, CAMSHAFT POSITION AND KNOCK SENSORS
ENGINE
Control module
Sensor
Solenoid valve, actuator, emission control system parts and ignition system parts

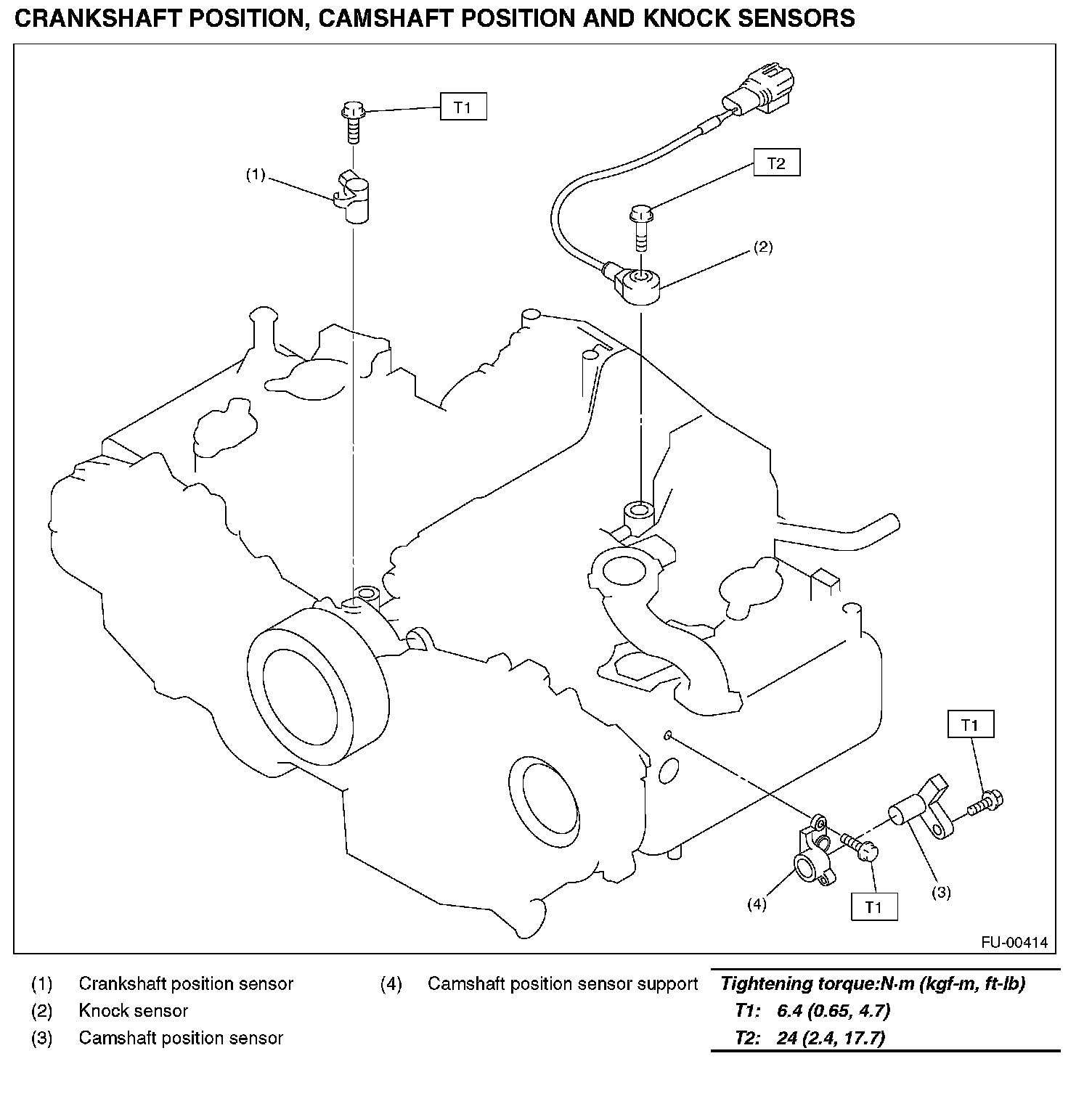

CRANKSHAFT POSITION, CAMSHAFT POSITION AND KNOCK SENSORS
ENGINE
Control module
Control Module:

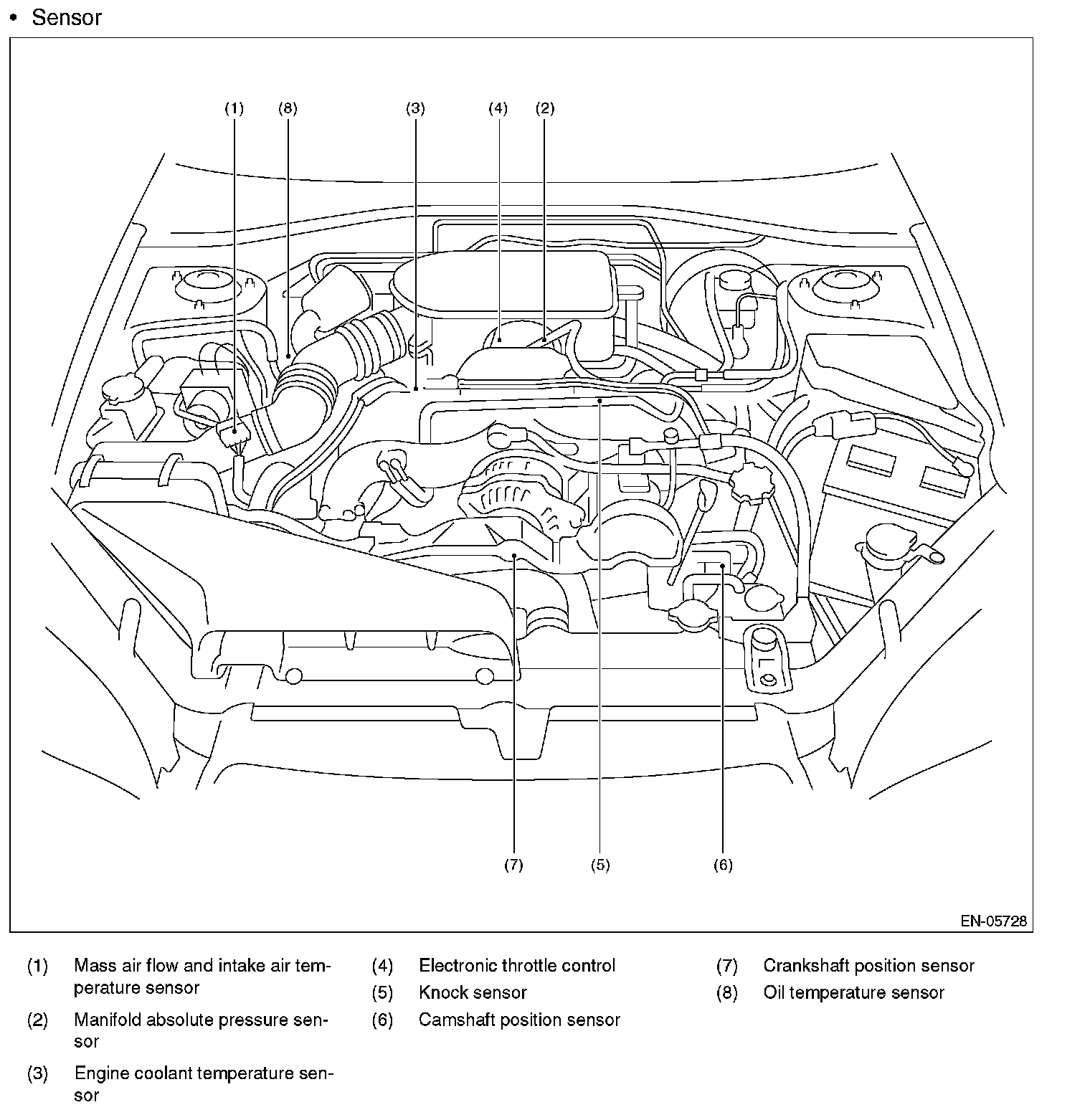

Sensor
Sensor (Part 1):
Sensor (Part 2):
Sensor (Part 3):
Sensor (Part 4):

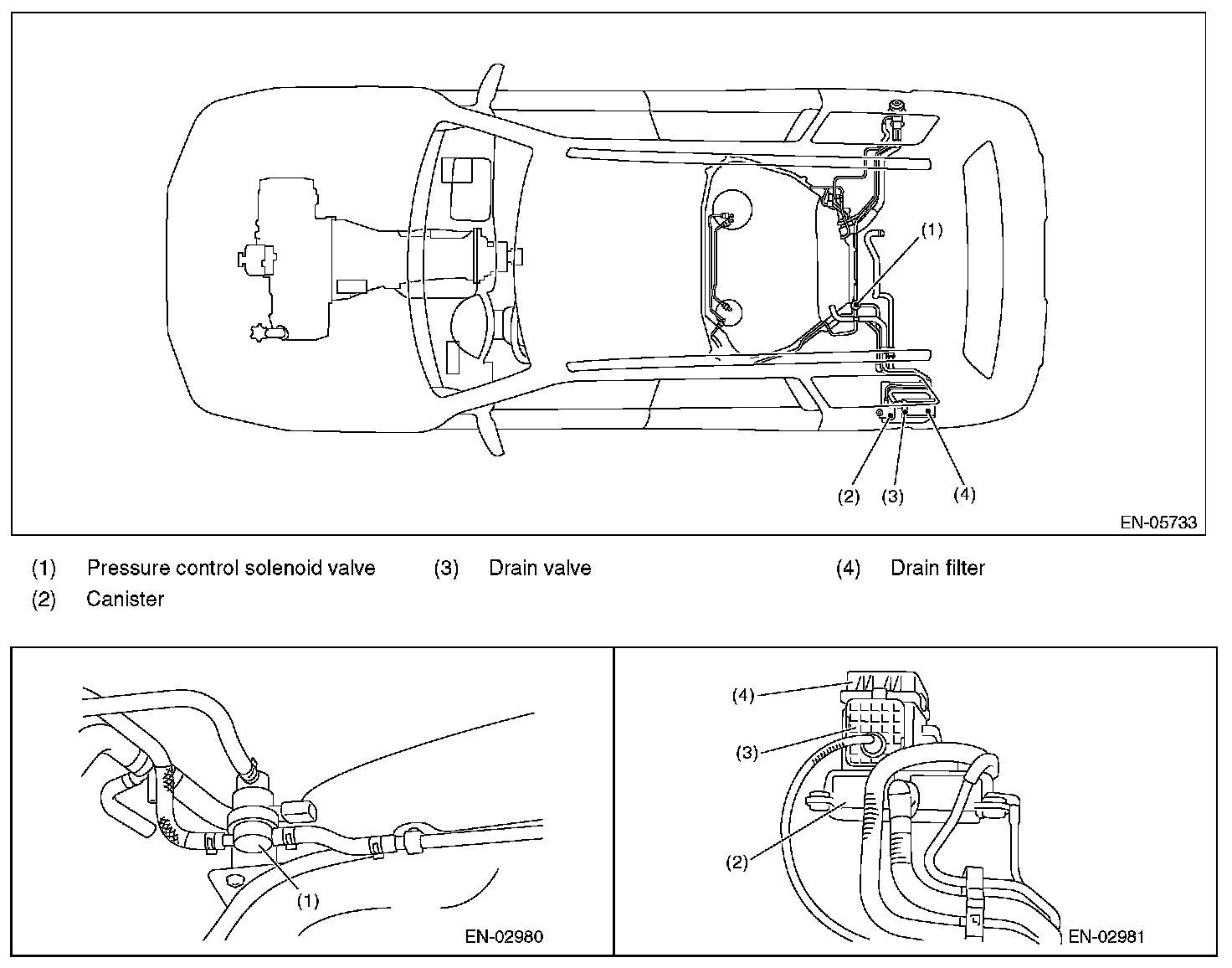

Solenoid valve, actuator, emission control system parts and ignition system parts
Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 1):
Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 2):
Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 3):
Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 4):
