2008 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

5MT non-turbo model

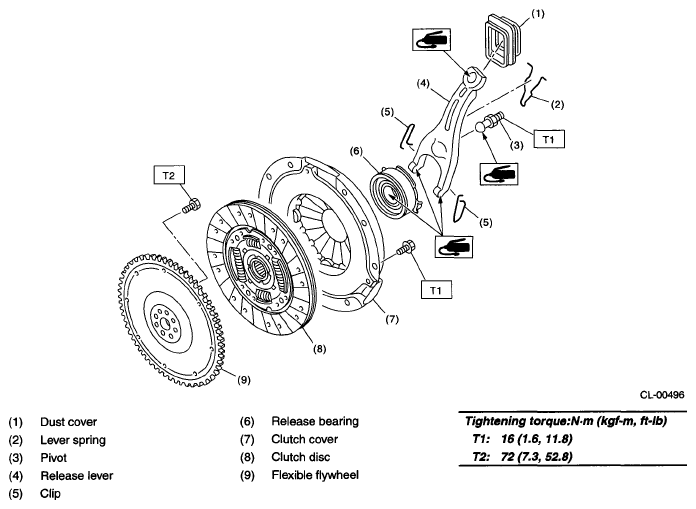

Fig 1: Clutch Assembly Replacement Components (5MT Non-Turbo Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
5MT turbo model

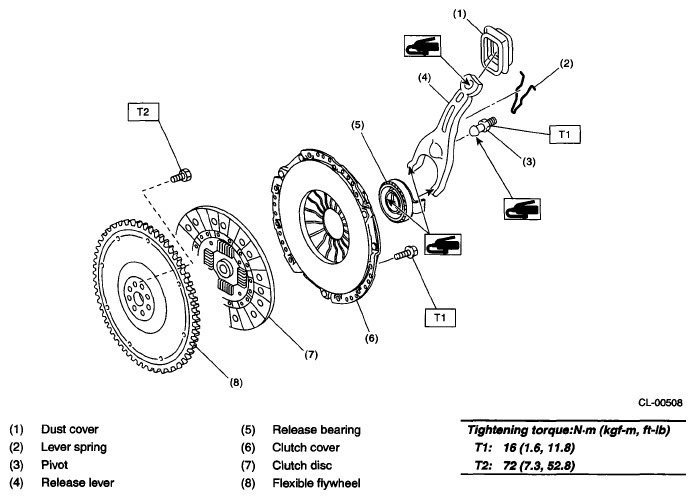

Fig 2: Clutch Assembly Replacement Components (5MT Turbo Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
6MT model

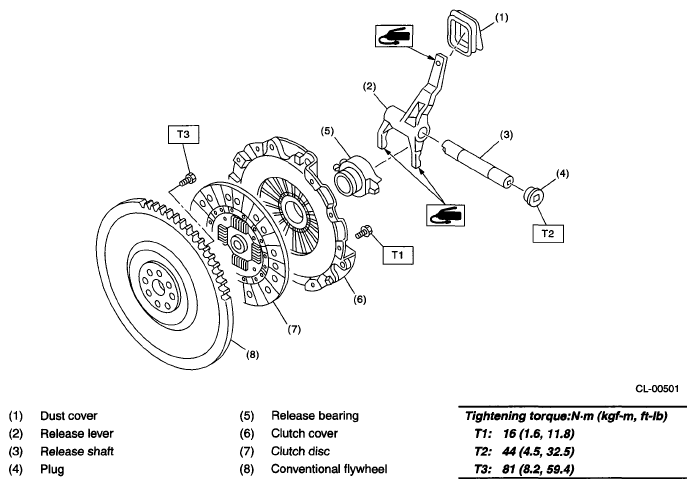

Fig 3: Clutch Assembly Replacement Components (6MT Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
