2005 Subaru Outback XT, StandardFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Removal
- Remove the collector cover.

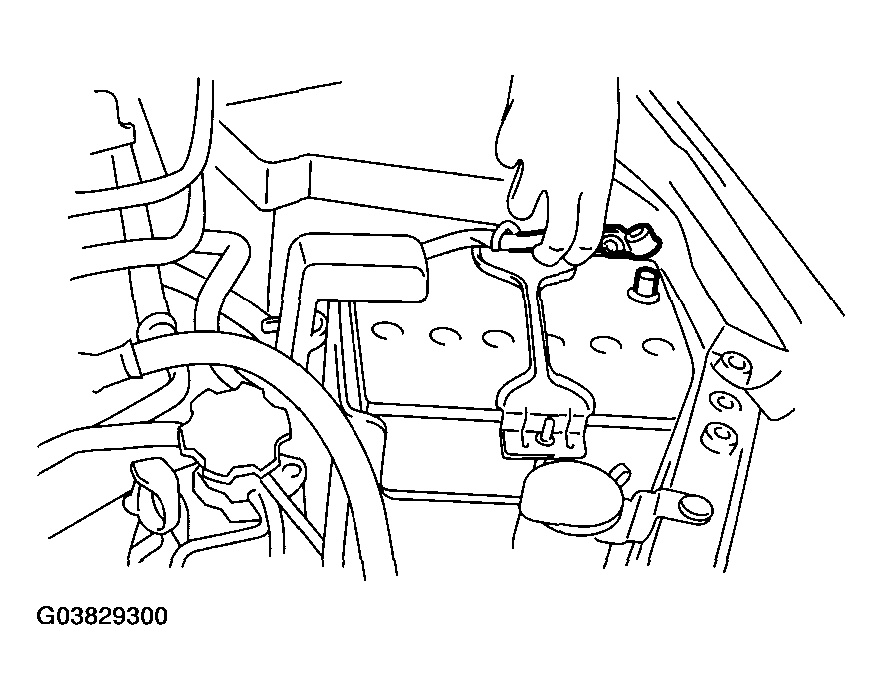

- Disconnect the ground cable from battery.

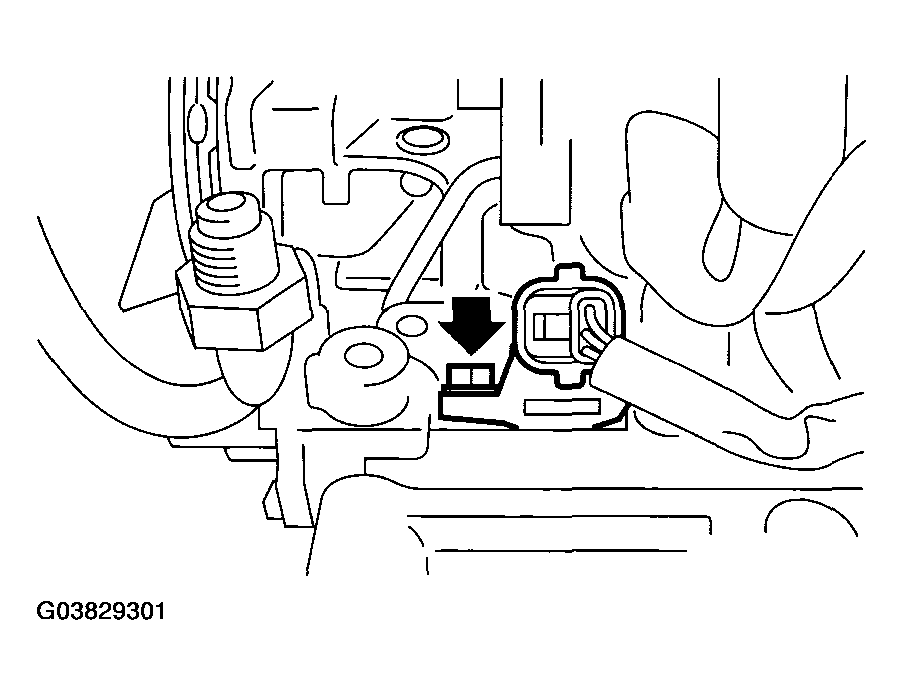

- Disconnect the connector from camshaft position sensor RH.
- Remove the camshaft position sensor RH from the rear side of cylinder head.
- Remove the camshaft position sensor LH in the same procedure as RH.
