2005 Subaru Outback XT, AutomaticFACTORY OEM SERVICE PROCEDURE

Select Lever: Disassembly

  1. Shift the select lever to "N" range.

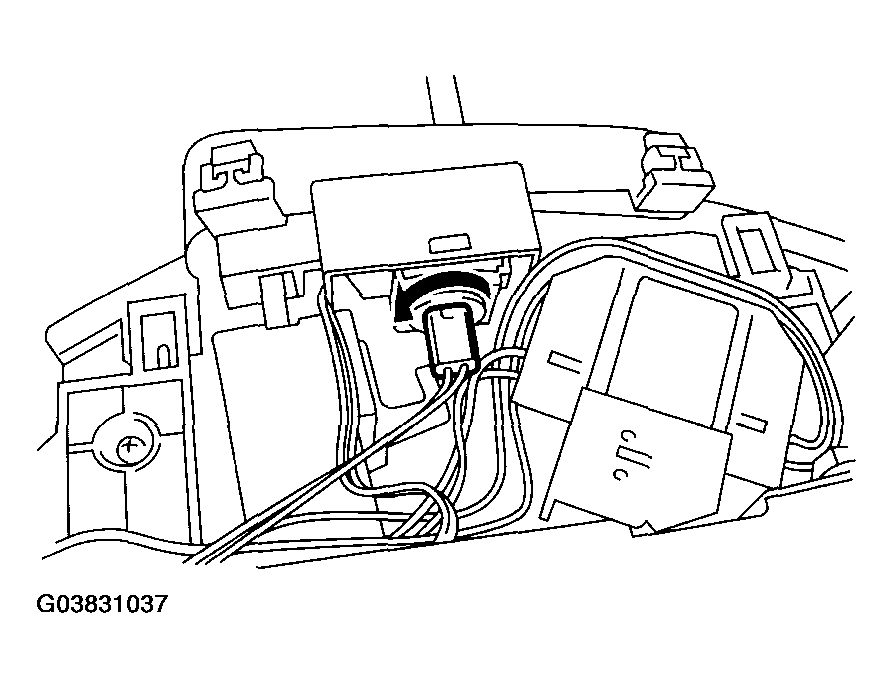

  2. Remove the indicator light.
    Fig 1: Removing Indicator Light
    G03831037Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the grip.
  4. Remove the indicator assembly.

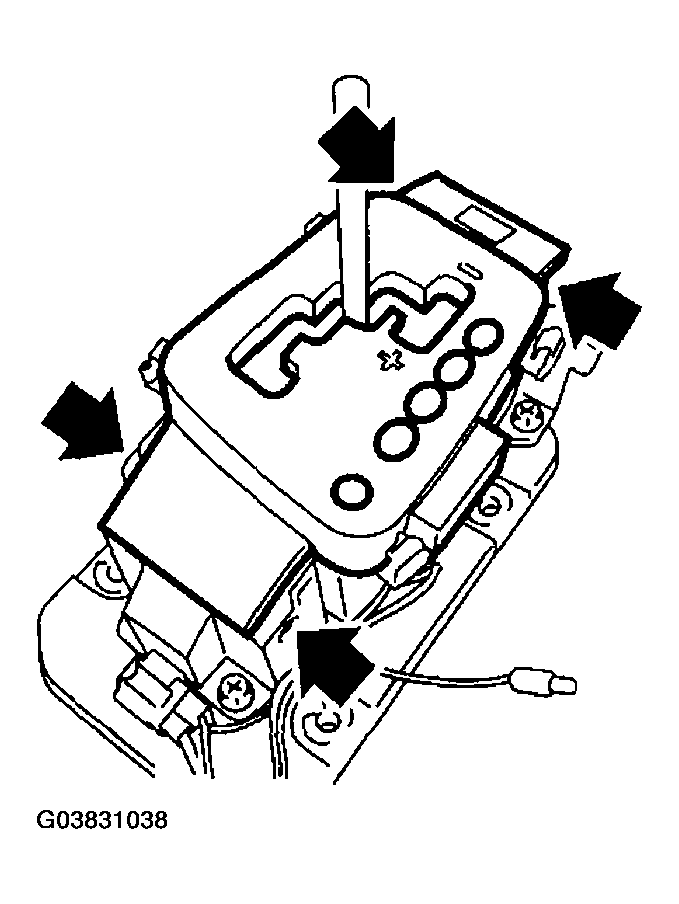

    Fig 2: Removing Indicator Assembly
    G03831038Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the blind.

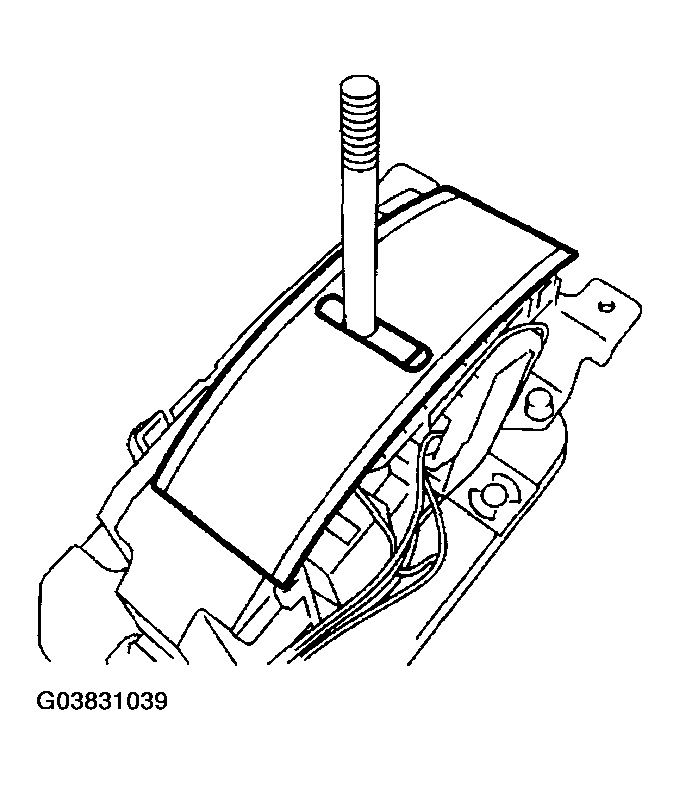

    Fig 3: Removing Blind
    G03831039Courtesy of SUBARU OF AMERICA, INC.

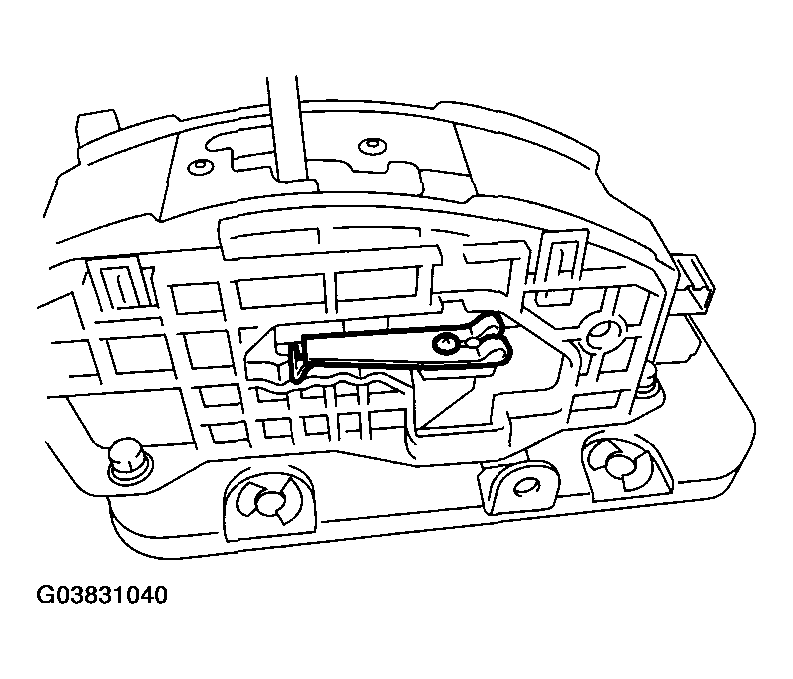

  6. Shift the select lever to "N" range, and then remove the detent spring.
    Fig 4: Removing Detent Spring
    G03831040Courtesy of SUBARU OF AMERICA, INC.

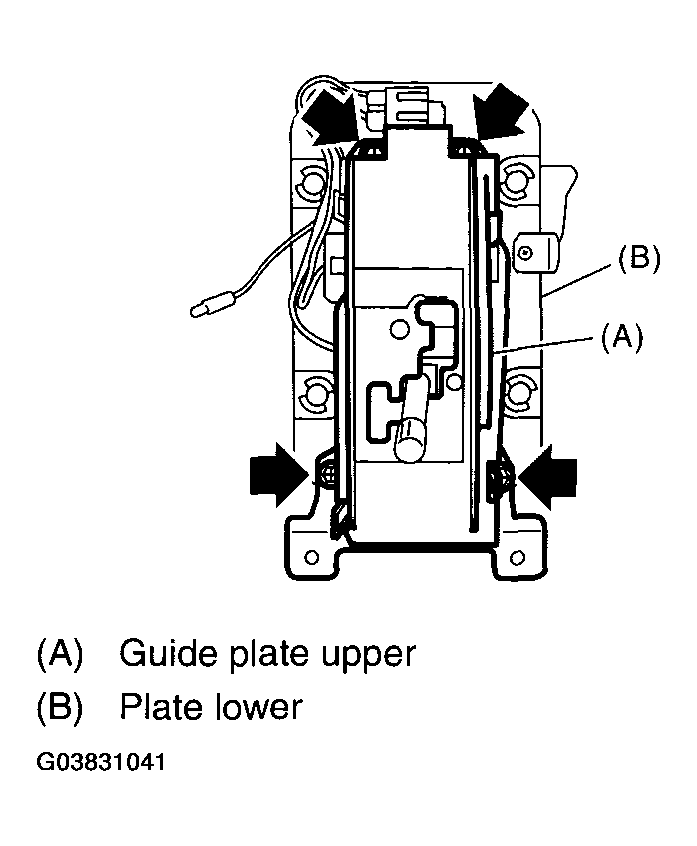

  7. Remove the bolt, and separate the guide plate upper from plate lower.
    Fig 5: Removing Bolt, And Separate Guide Plate Upper From Plate Lower
    G03831041Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the connector from guide plate upper.

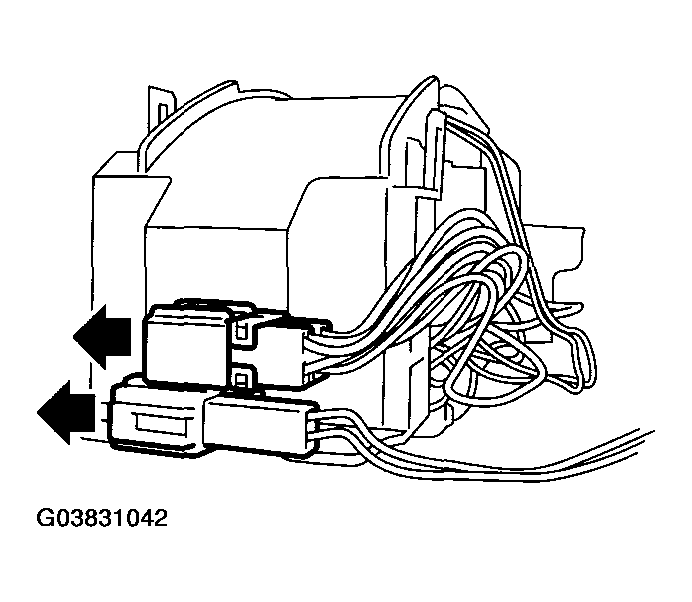

    Fig 6: Removing Connector From Guide Plate Upper
    G03831042Courtesy of SUBARU OF AMERICA, INC.

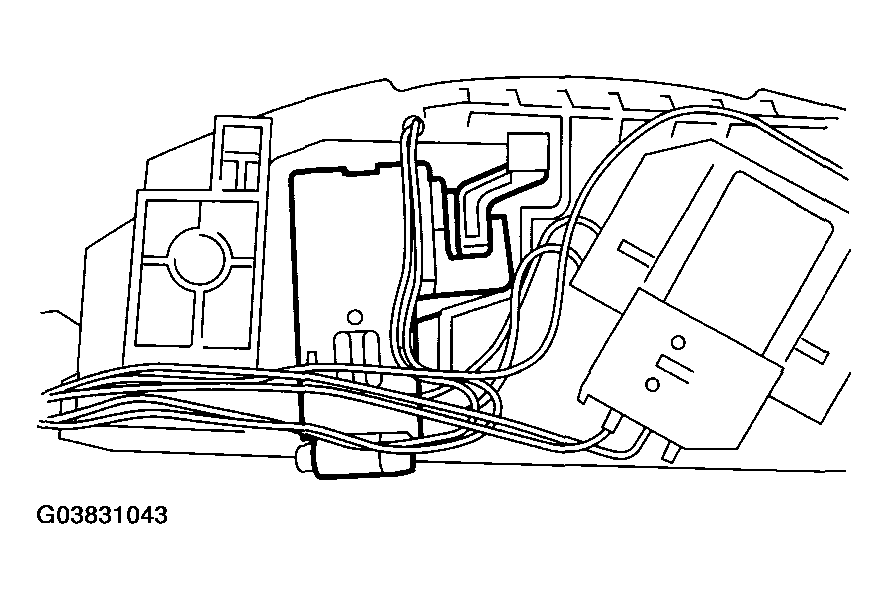

  9. Remove the sheet, and remove the shift lock solenoid assembly.
    Fig 7: Removing Shift Lock Solenoid Assembly
    G03831043Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the switch assembly.

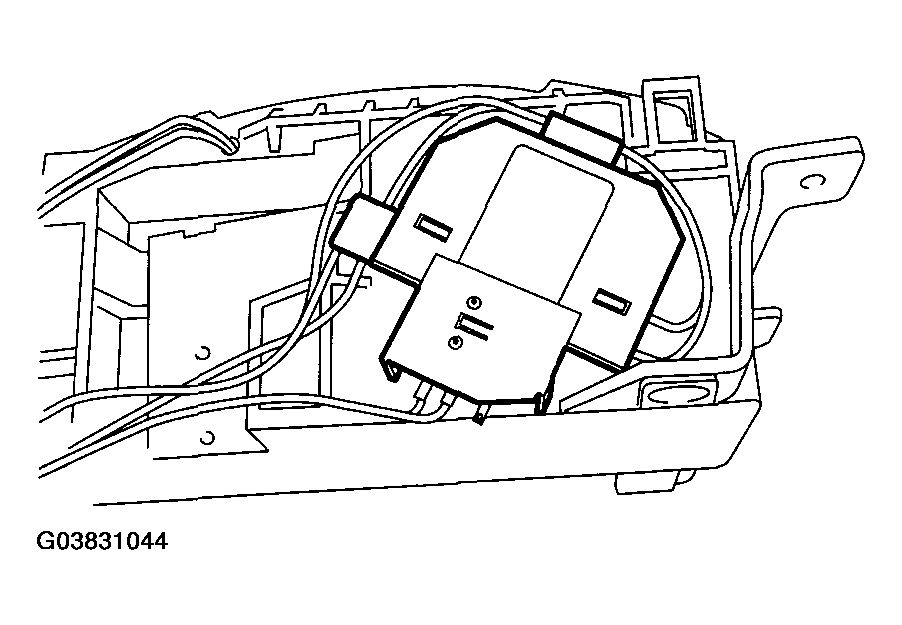

    Fig 8: Removing Switch Assembly
    G03831044Courtesy of SUBARU OF AMERICA, INC.

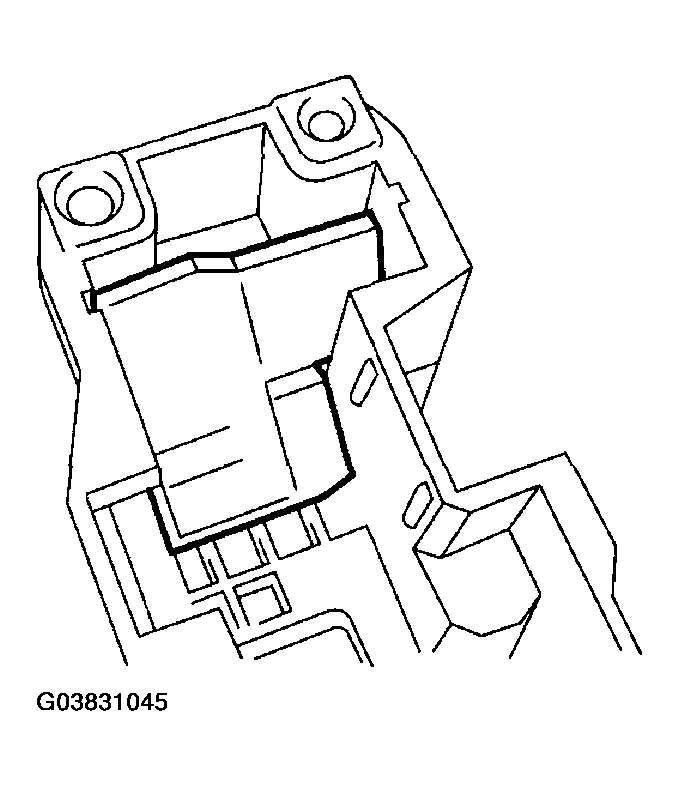

  11. Remove the check plate.
    Fig 9: Removing Check Plate
    G03831045Courtesy of SUBARU OF AMERICA, INC.

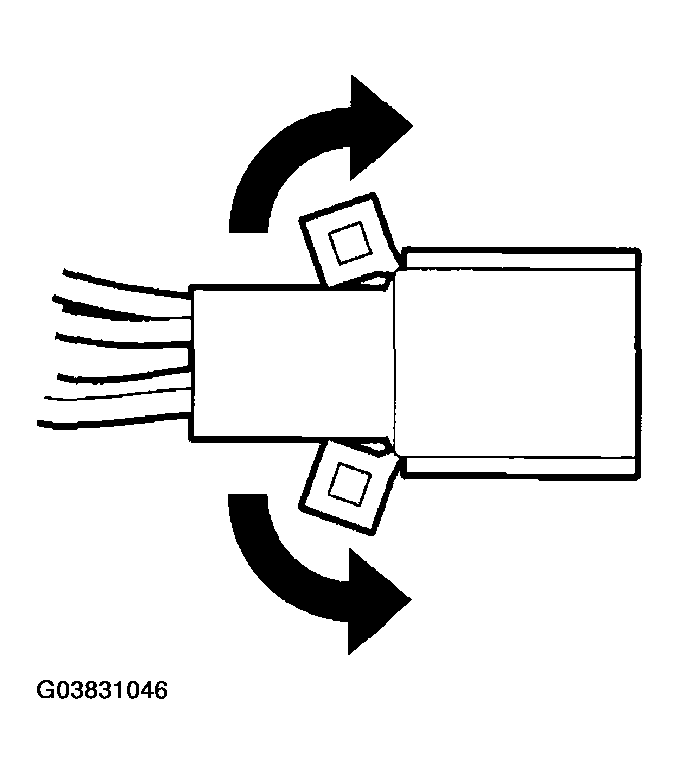

  12. Raise the claw of connector.
    Fig 10: Locating Claw Connector
    G03831046Courtesy of SUBARU OF AMERICA, INC.

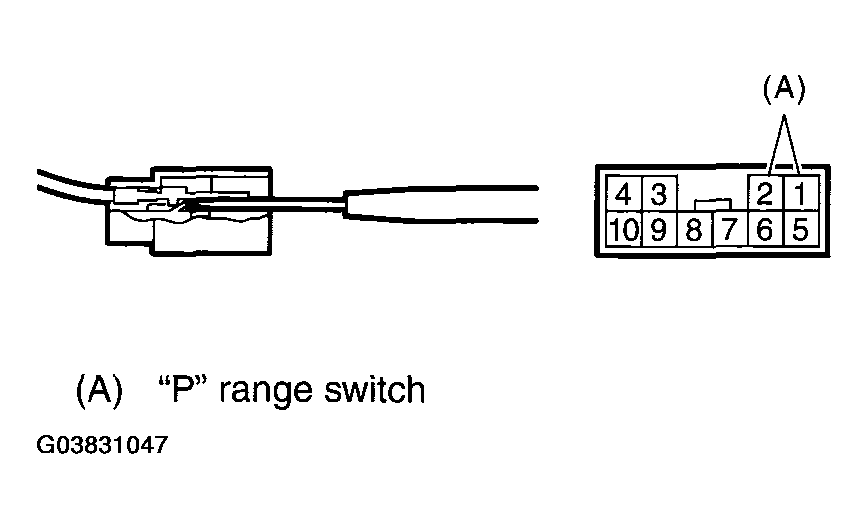

  13. Disconnect the terminals of SPORT mode switch and shift lock solenoid assembly from connector, using a flat-tip screwdriver with thin tip.
    Fig 11: Disconnecting Terminals Using Flat-Tip Screwdriver
    G03831047Courtesy of SUBARU OF AMERICA, INC.

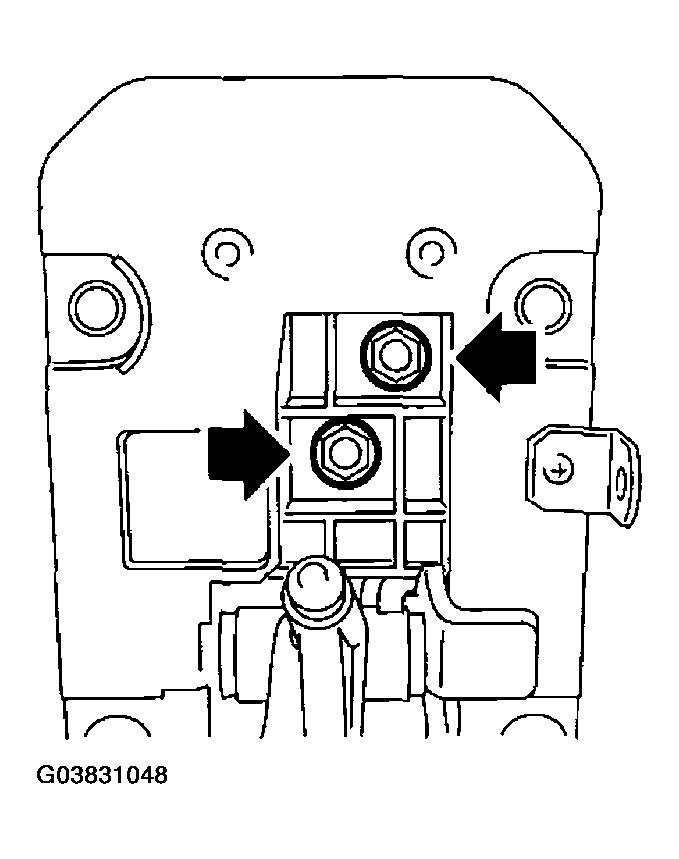

  14. Remove the cable bracket.
    Fig 12: Removing Cable Bracket
    G03831048Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the cover.

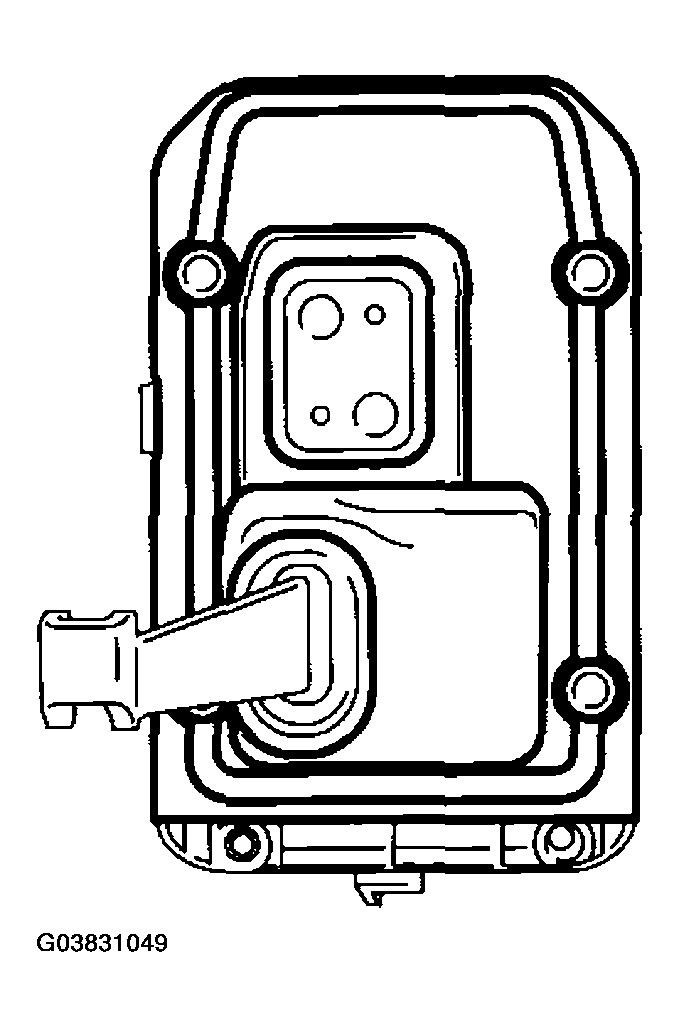

    Fig 13: Removing Cover
    G03831049Courtesy of SUBARU OF AMERICA, INC.

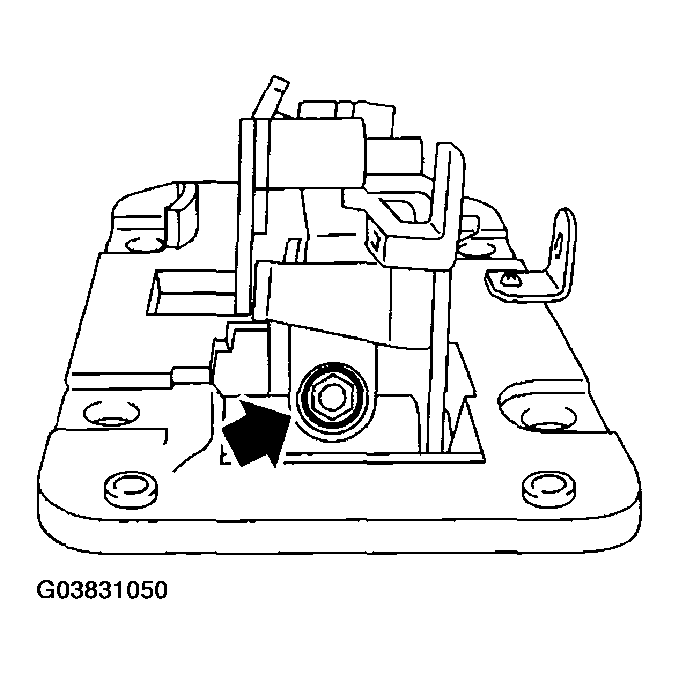

  16. Remove the select lever assembly.
    Fig 14: Removing Select Lever Assembly
    G03831050Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the clamp, and remove the arm assembly and bushing plate.

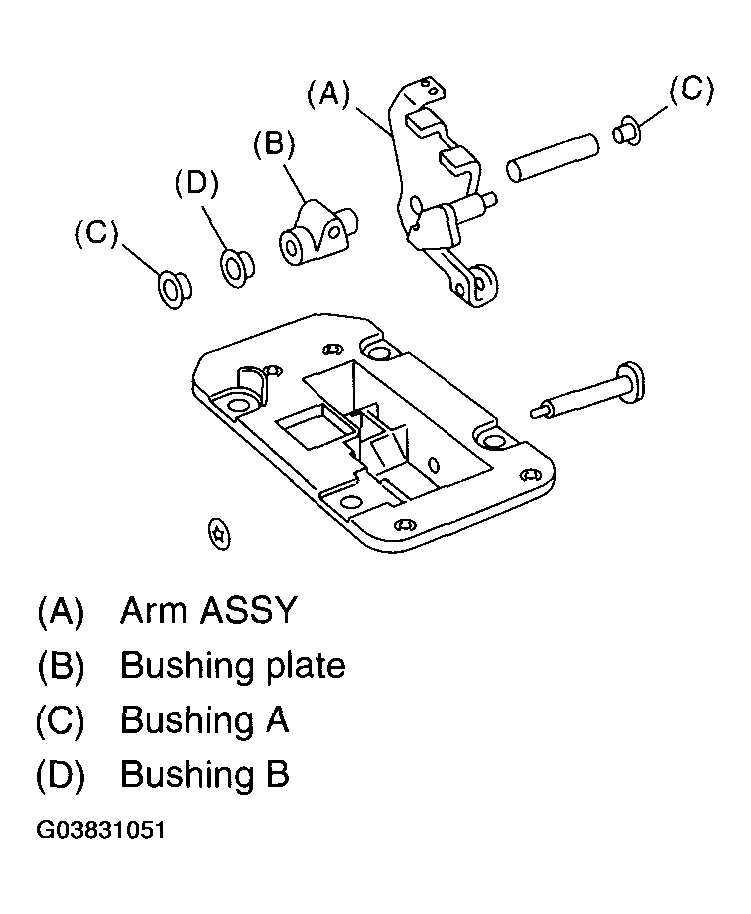

    Fig 15: Removing Arm Assembly And Bushing Plate
    G03831051Courtesy of SUBARU OF AMERICA, INC.
