2005 Subaru Outback XT, AutomaticFACTORY OEM SERVICE PROCEDURE
SUBARU Select Monitor
- After clearing the memory, check for any remaining trouble data unresolved. < Ref. to , CLEAR MEMORY MODE . >
- Warm up the engine.

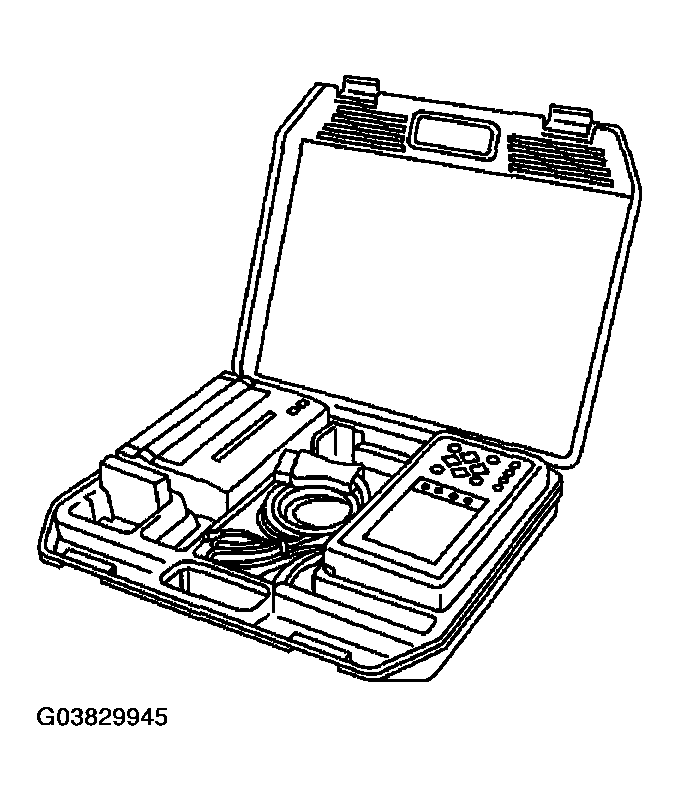

- Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Descriptions
- Connect the diagnosis cable to Subaru Select Monitor.

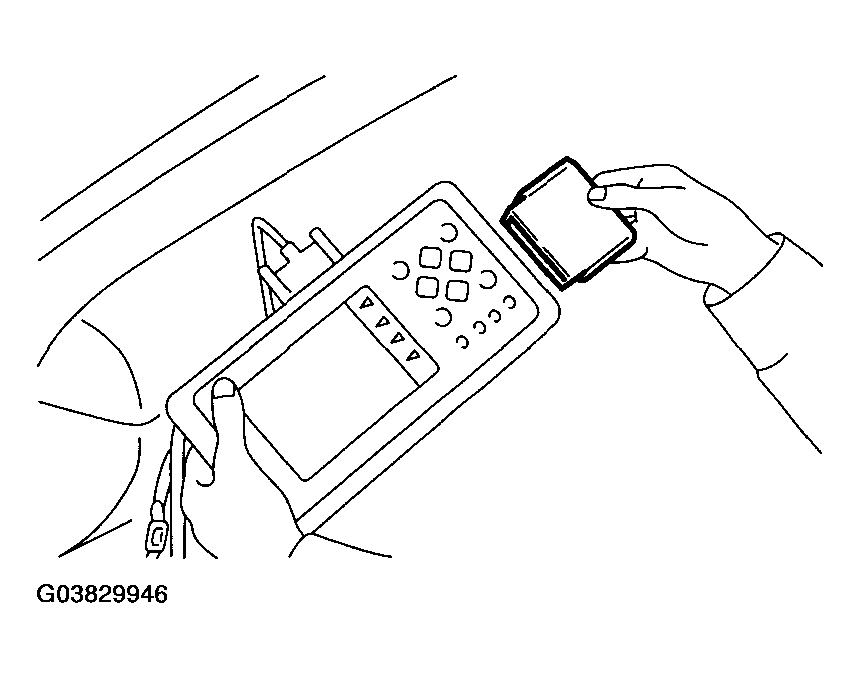

- Insert the cartridge into Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >

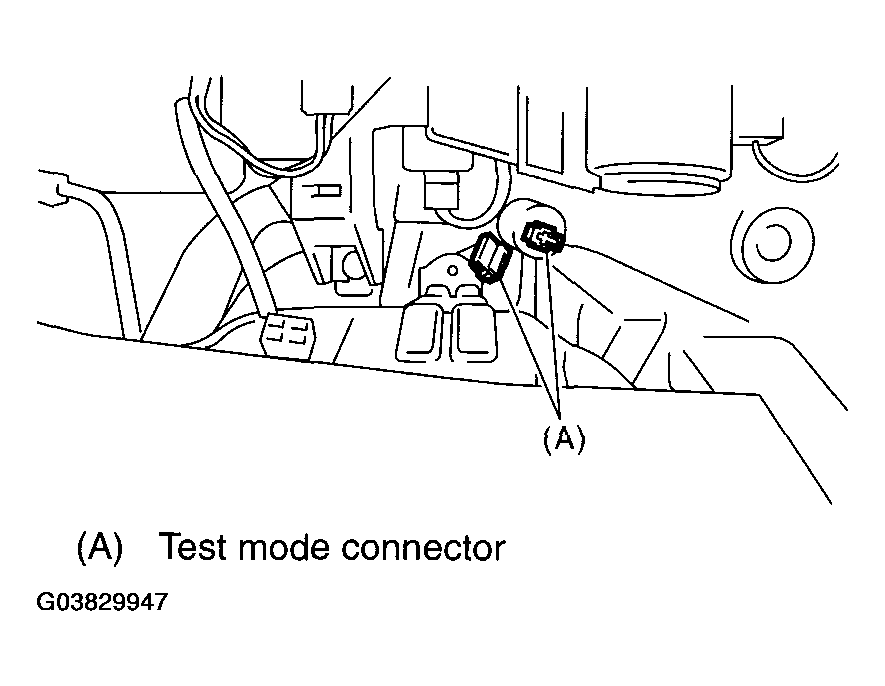

- Connect the test mode connector (A) at the lower portion of glove box.

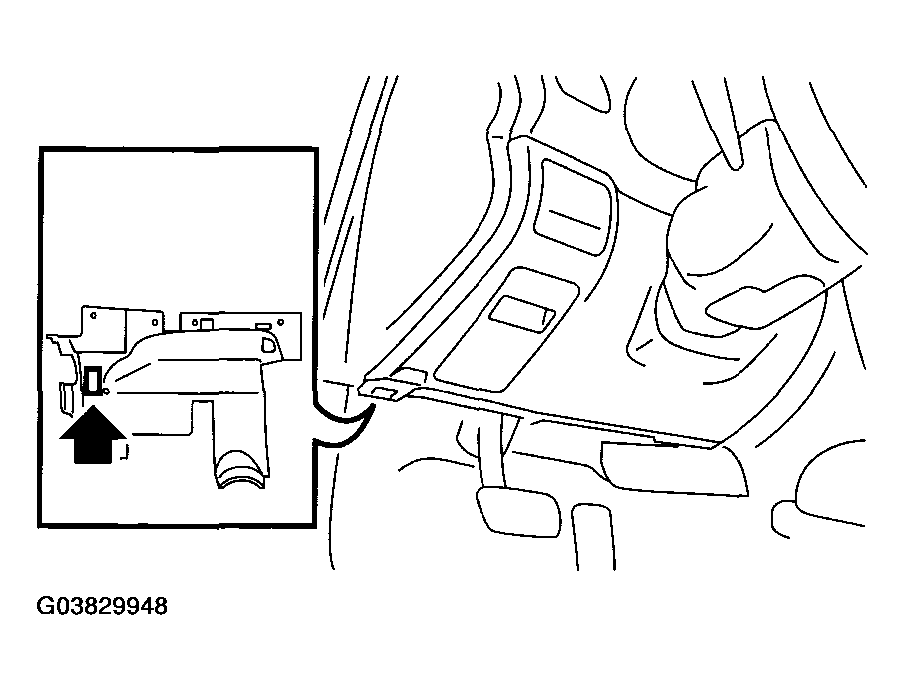

- Connect the Subaru Select Monitor to data link connector located in the lower portion of the instrument panel (on the driver's side).
