2005 Subaru Outback XT, AutomaticFACTORY OEM SERVICE PROCEDURE

Preparation For The Inspection Mode

  1. Make sure that the fuel remains approx. half amount [20 - 40 Lambda (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)] and the battery voltage is 12 V or more.
  2. Raise the vehicle using a garage jack and place on safety stands or drive the vehicle onto free rollers.
WARNING:
  • Before raising the vehicle, ensure the parking brake is applied.
  • Do not use a pantograph jack in place of a safety stand.
  • Secure a rope or wire to the front and rear towing or tie-down hooks to prevent the lateral runout of front wheels.
  • Do not abruptly depress/release the clutch pedal or accelerator pedal during works even when engine is operating at low speeds since this may cause vehicle to jump off free rollers.
  • In order to prevent the vehicle from slipping due to vibration, do not place any wooden blocks or similar items between the safety stands and the vehicle.
  • Since the rear wheels will also rotate, do not place anything near them. Also, make sure that nobody goes in front of the vehicle.

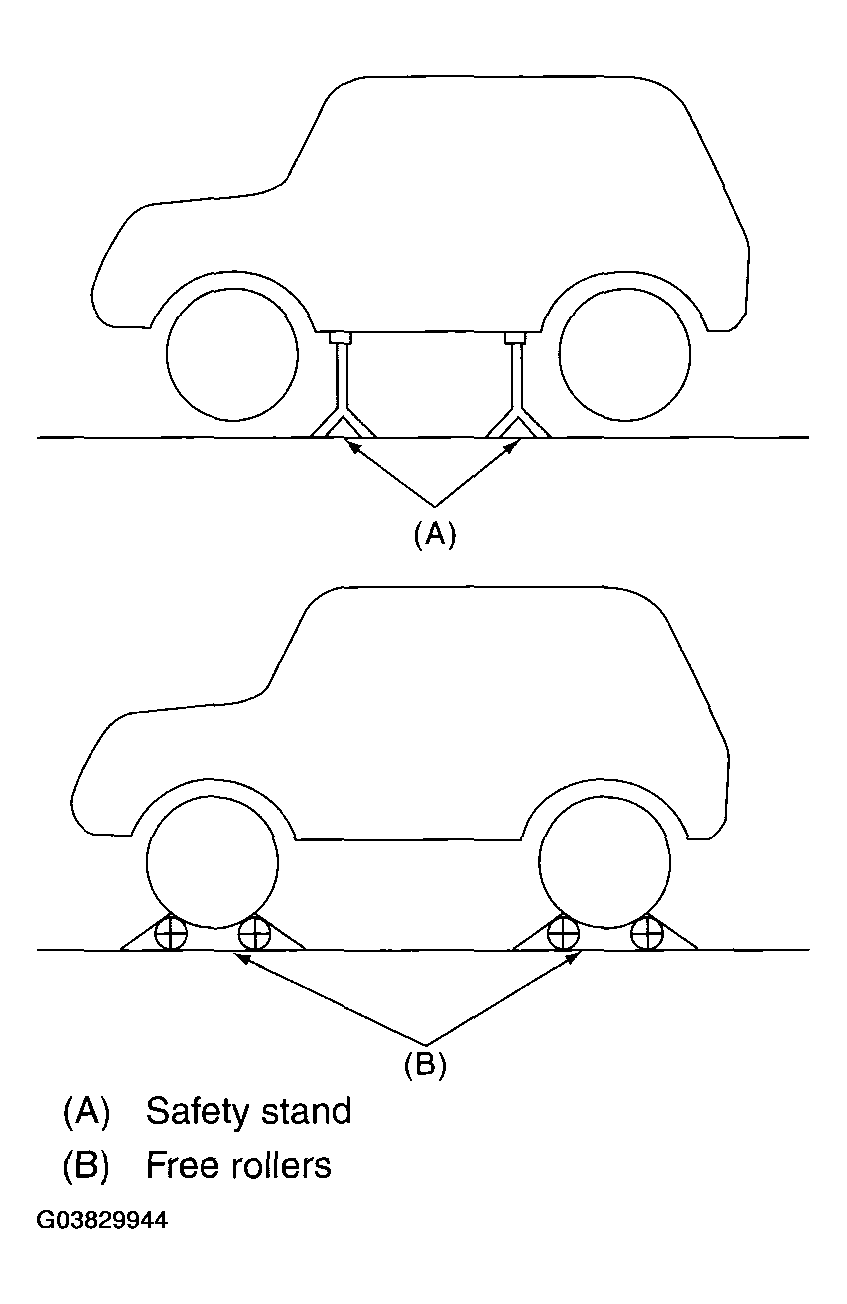

    Fig 1: Placing On Safety Stands Or Drive Vehicle Onto Free Rollers
    G03829944Courtesy of SUBARU OF AMERICA, INC.
