2005 Subaru Outback XT, AutomaticFACTORY OEM SERVICE PROCEDURE
Tumble Generator Valve Assembly: Removal
- Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
- Open the fuel filler lid and remove the fuel filler cap.

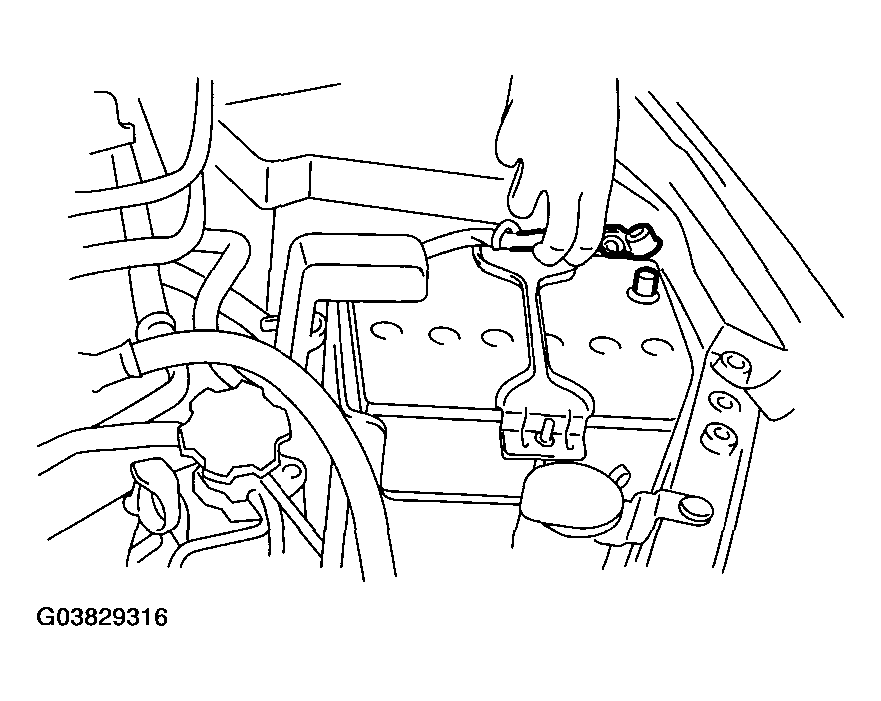

- Disconnect the ground cable from battery.
- Remove the intake manifold. < Ref. to , REMOVAL , Intake Manifold. >

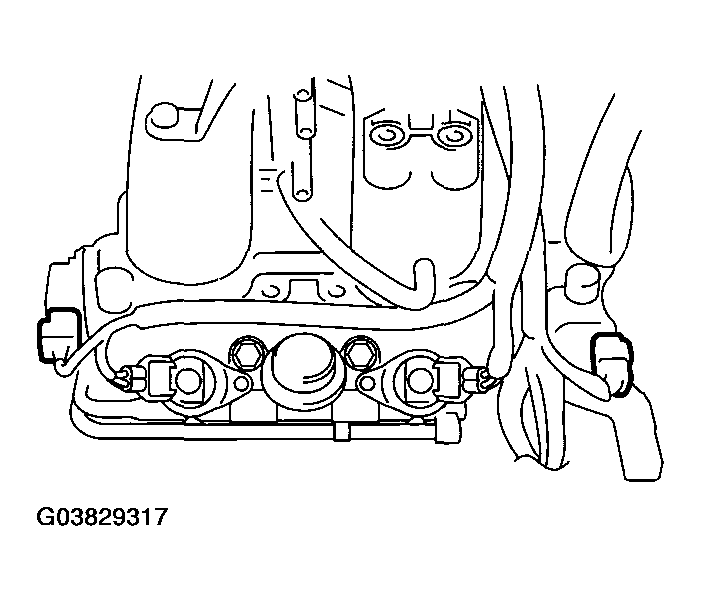

- Disconnect the connectors from the tumble generator (A) and tumble generator valve actuator (B).
- Remove the fuel injector. < Ref. to , REMOVAL , Fuel Injector. >

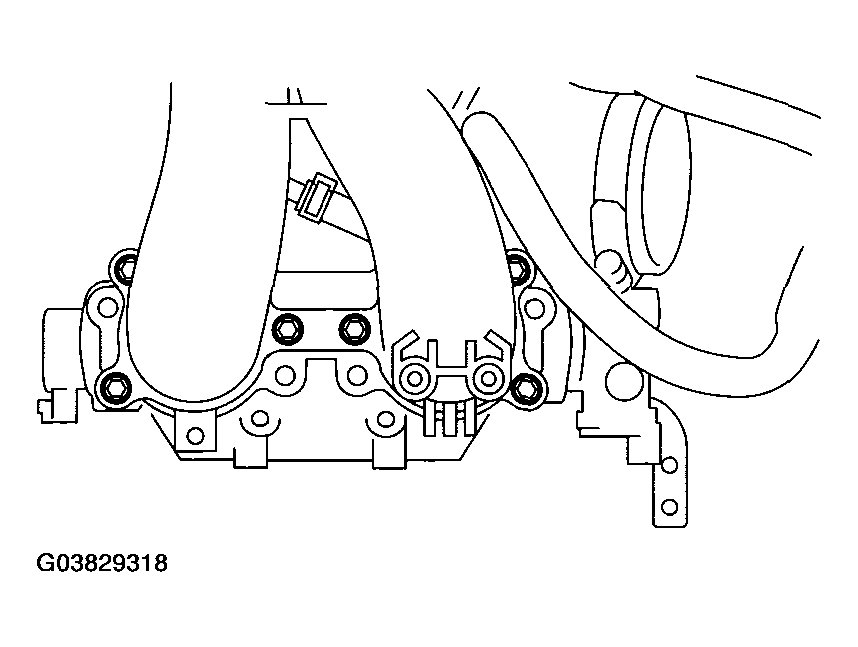

- Remove the tumble generator valve body from the intake manifold.
