2005 Subaru Outback XT, AutomaticFACTORY OEM SERVICE PROCEDURE
Rear Oxygen Sensor: Removal

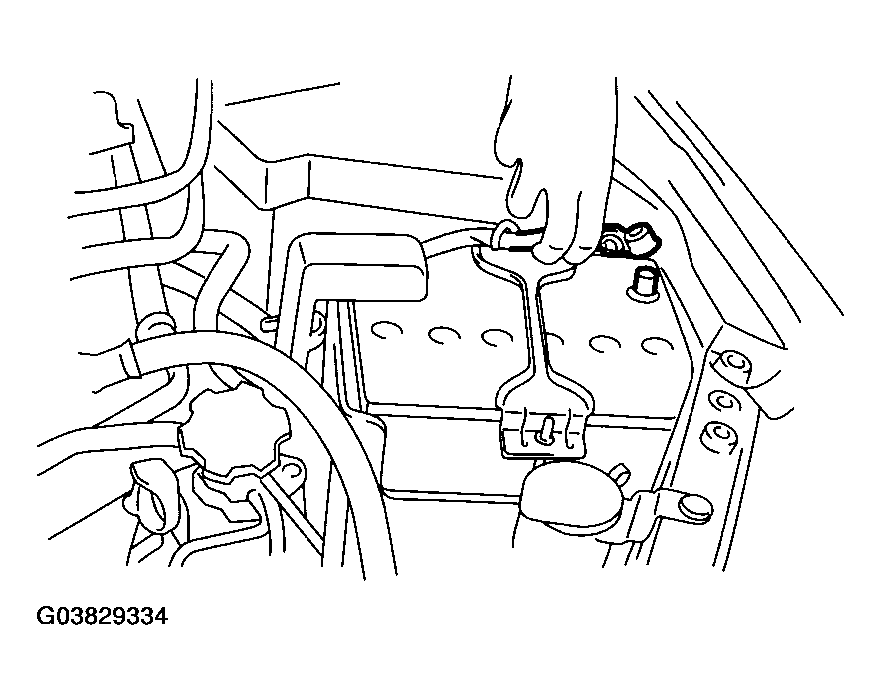

- Disconnect the ground cable from battery.
- Lift-up the vehicle.
- Disconnect the connector from rear oxygen sensor.
- Apply spray-type lubricant to the threaded portion of rear oxygen sensor, and leave it for one minute or more.
- Remove the rear oxygen sensor.
CAUTION:
When removing the rear oxygen sensor, wait until exhaust pipe cools, otherwise it will damage exhaust pipe.
