Intake Manifold: Removal
- Release the fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
- Open the fuel filler flap lid, and remove the fuel filler cap.
- Remove the collector cover.

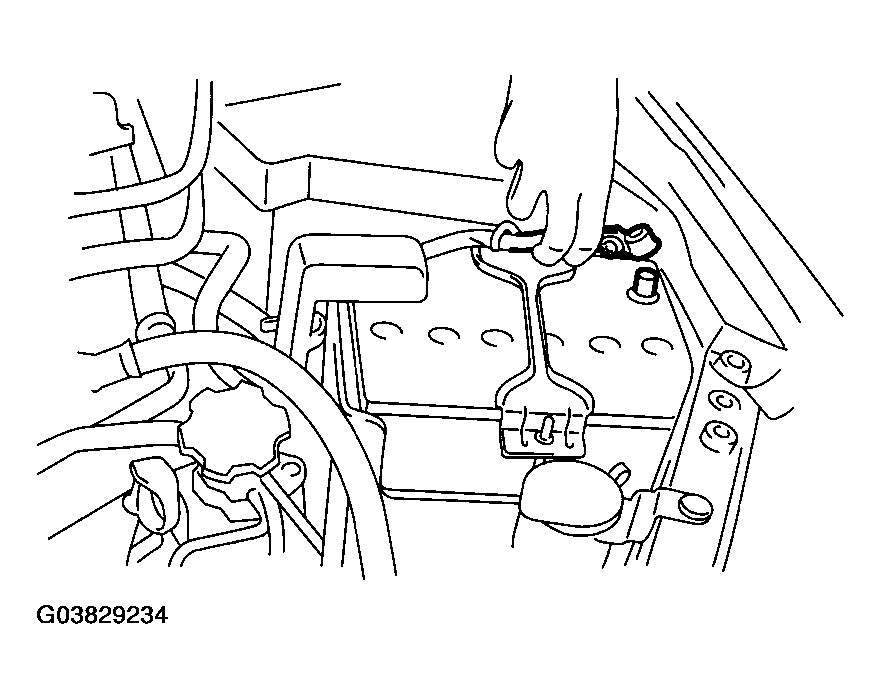

- Disconnect the ground cable from battery.
- Lift-up the vehicle.
- Remove the under cover.
- Drain the coolant about 3.0 Lambda (3.2 US qt, 2.6 Imp qt).
- Remove the intake duct from air cleaner case.
- Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
- Remove the generator. < Ref. to REMOVAL , Generators
- Remove the coolant filler tank. < Ref. to REMOVAL , Coolant Filler Tank. >

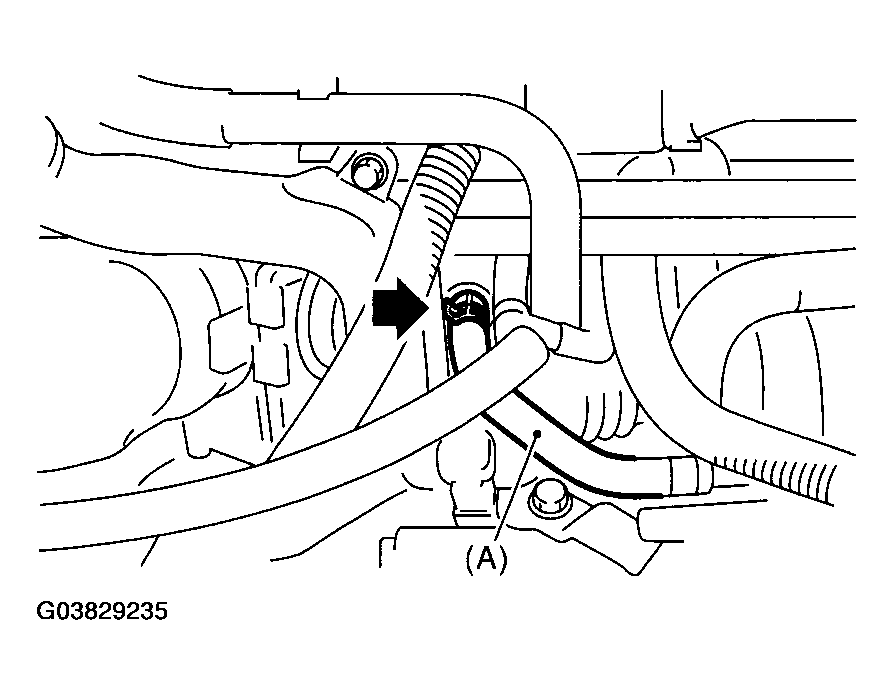

- Disconnect the emission hose (A) and connector (B) from PCV hose assembly.
