2005 Subaru Outback XT, AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Sub Level Sensor: Removal
WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.
- Drain fuel. < Ref. to , DRAINING FUEL , PROCEDURE, Fuel. >
- Remove the rear seat.
- Remove the service hole cover.

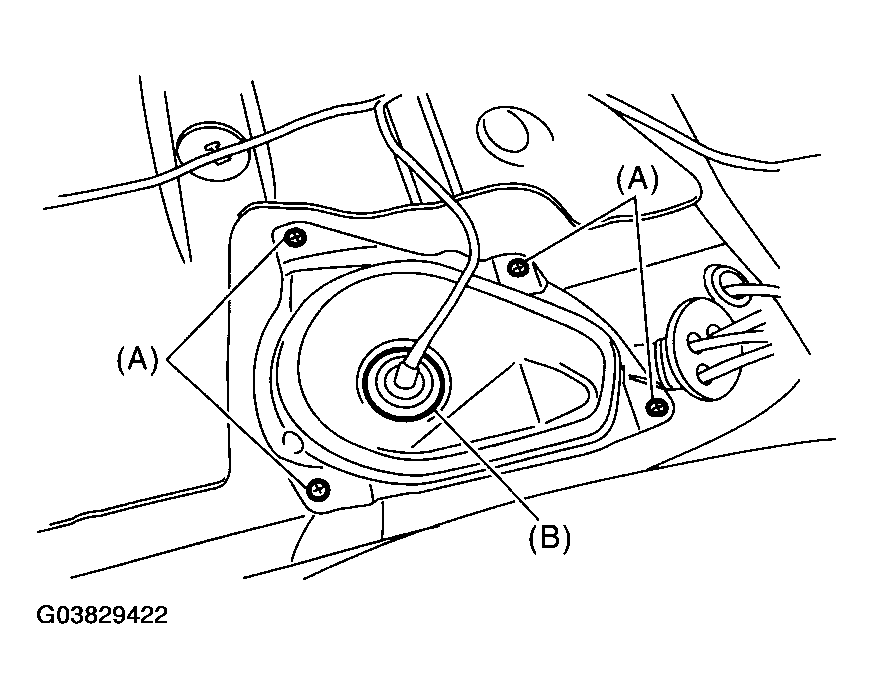

- Remove the bolts (A).
- Push the grommet (B) down under the body and remove the service hole cover.

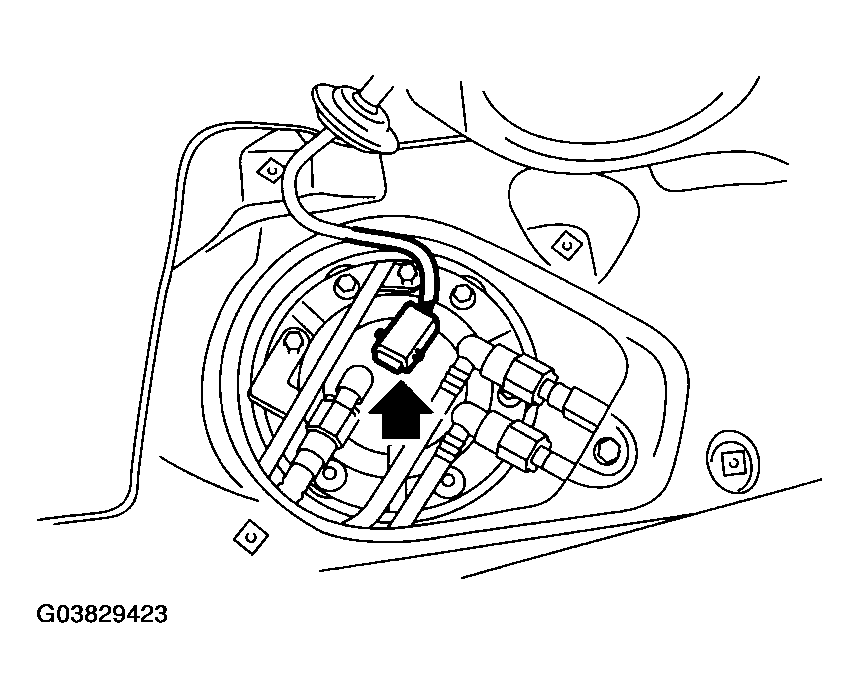

- Disconnect the connector from fuel sub level sensor.

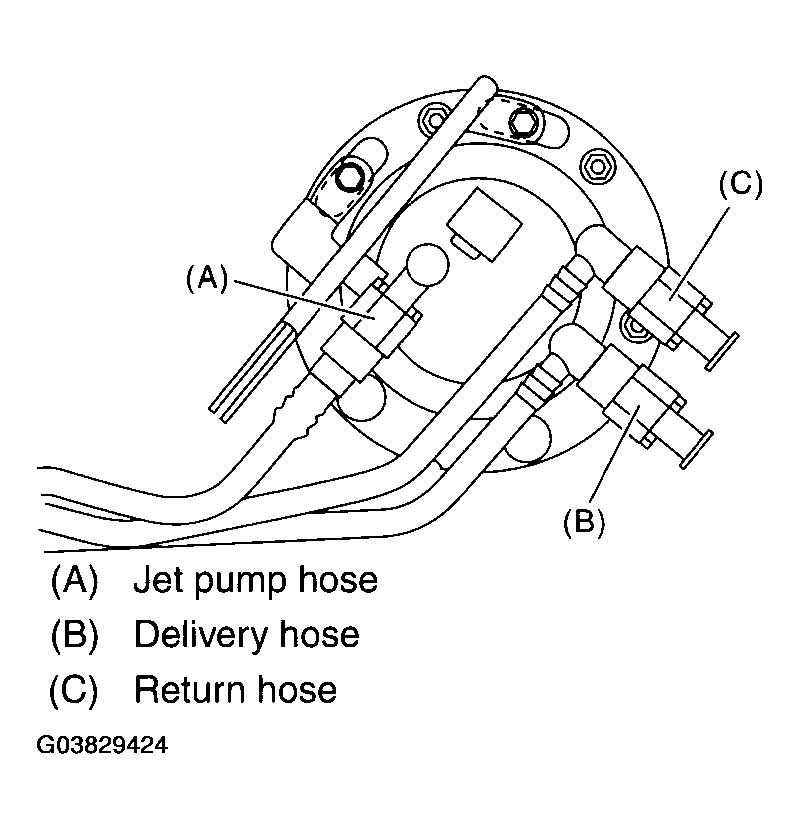

- Disconnect the quick connector and then disconnect the fuel delivery hose, return hose and jet pump hose. < Ref. to , REMOVAL , Fuel Delivery, Return and Evaporation Lines. >
- Remove the nuts and bolts which install the fuel sub level sensor on fuel tank.
- Remove the fuel sub level sensor.
