2005 Subaru Outback XT, AutomaticFACTORY OEM SERVICE PROCEDURE
Front Oxygen (A/F) Sensor: Removal

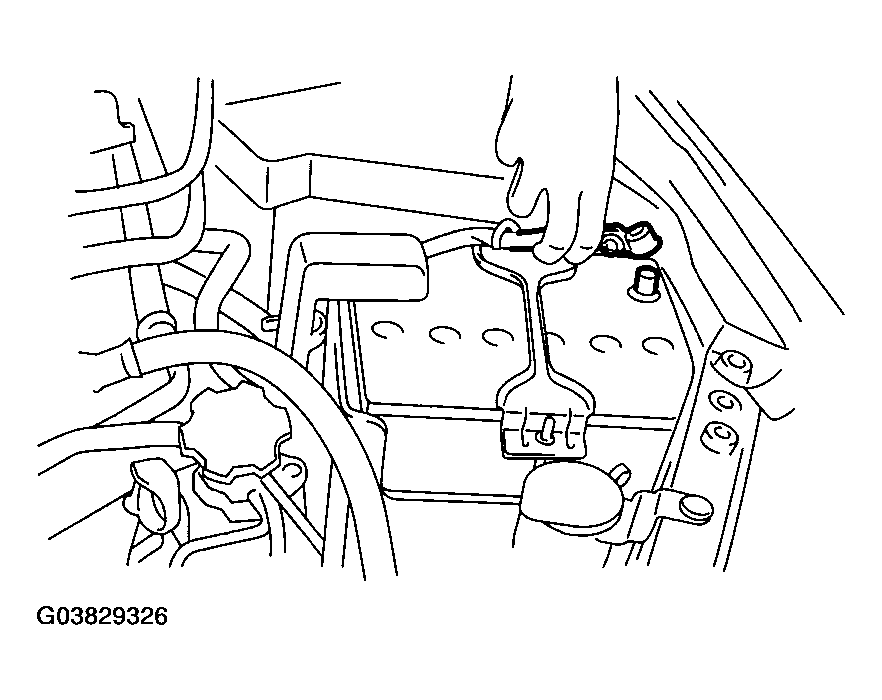

- Disconnect the ground cable from battery.

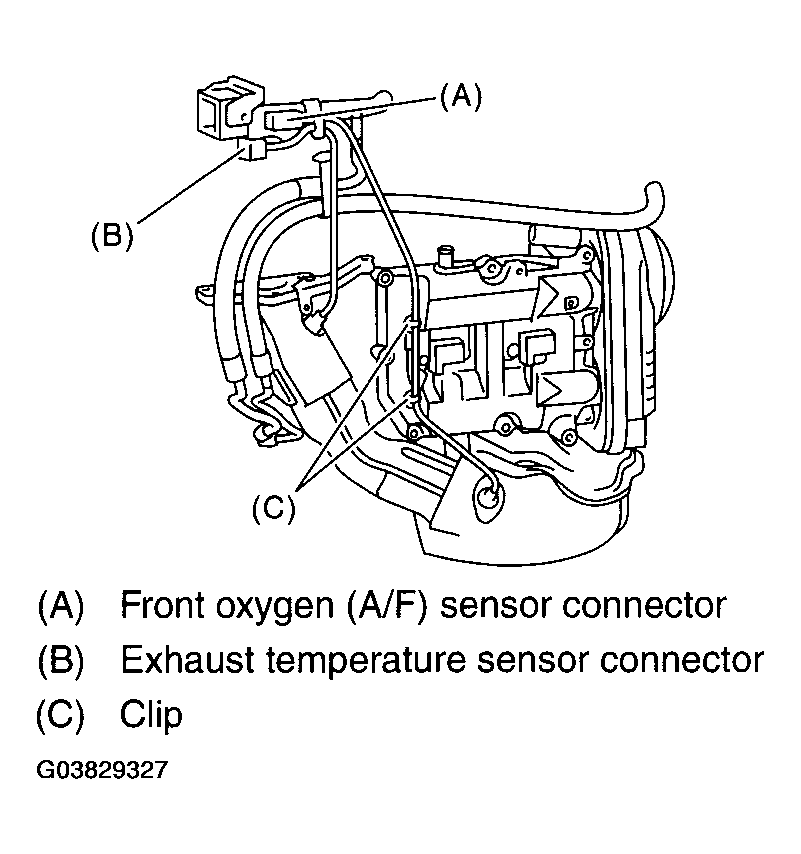

- Disconnect the connector from the front oxygen (A/F) sensor.
- Disconnect the engine harness fixed by clip from the bracket.
- Remove the front right side wheel.
- Lift-up the vehicle.

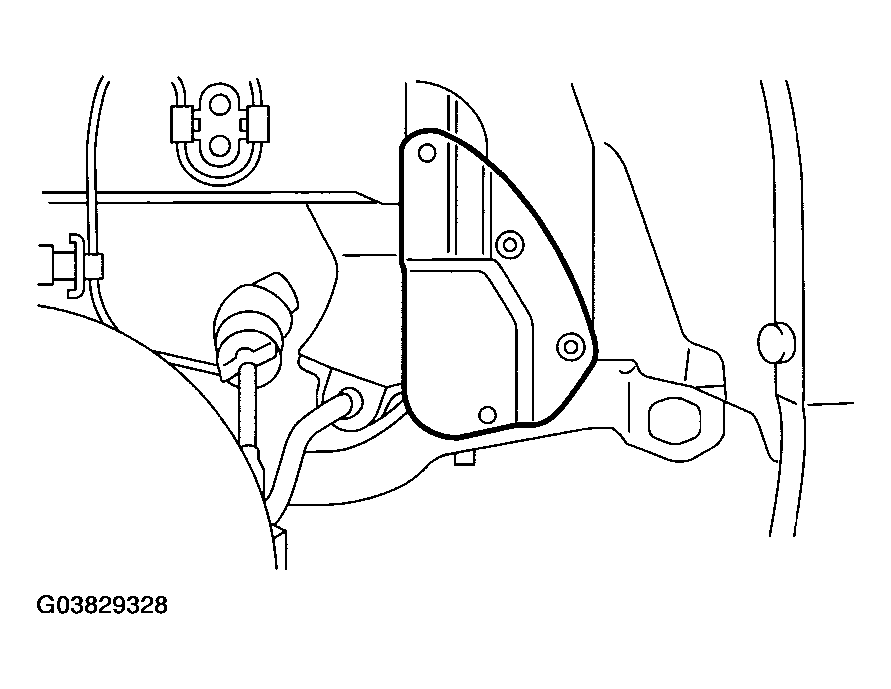

- Remove the service hole cover.
- Apply spray type lubricant to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.
- Remove the front oxygen (A/F) sensor.
CAUTION:
When removing the oxygen (A/F) sensor, wait until exhaust pipe cools; otherwise, it will damage exhaust pipe.
