Sub Switch
Install in the reverse order of removal.

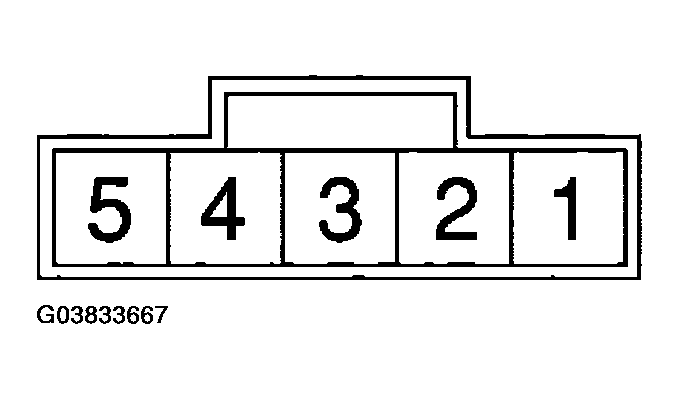

| Switch position | Terminal No. | Standard | |
|---|---|---|---|
| Driver's seat | UP | 10 and 2, 7 and 1 | Less than 1 Ω |
| OFF | 2 and 7, 1 and 2 | Less than 1 Ω | |
| DOWN | 10 and 1, 7 and 2 | Less than 1 Ω | |
| AUTO DOWN | 10 and 1, 7 and 2 | Less than 1 Ω |
| Switch position | Terminal No. | Standard | |
|---|---|---|---|
| Passenger's seat | UP | 10 and 14, 7 and 11 | Less than 1 Ω |
| OFF | 7 and 14, 7 and 11 | Less than 1 Ω | |
| DOWN | 10 and 11, 7 and 14 | Less than 1 Ω |
| Switch position | Terminal No. | Standard | |
|---|---|---|---|
| Rear seat RH | UP | 10 and 13, 7 and 12 | Less than 1 Ω |
| OFF | 7 and 13, 7 and 12 | Less than 1 Ω | |
| DOWN | 10 and 12, 7 and 13 | Less than 1 Ω |
| Switch position | Terminal No. | Standard | |
|---|---|---|---|
| Rear seat LH | UP | 10 and 8, 7 and 9 | Less than 1 Ω |
| OFF | 7 and 8, 7 and 9 | Less than 1 Ω | |
| DOWN | 9 and 10, 7 and 8 | Less than 1 Ω |
Replace the main switch if faulty.
