Set the vehicle on a lift.
Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift-up the vehicle.
Remove the front, center and rear exhaust pipes and muffler. (SOHC and DOHC non-turbo model)
- SOHC model
  < Ref. to REMOVAL , Front Exhaust Pipe.> < Ref. to REMOVAL , Center Exhaust Pipe.> < Ref. to REMOVAL , Rear Exhaust Pipe.> < Ref. to REMOVAL , Muffler. >
- DOHC 3.0 L model
  < Ref. to REMOVAL , Front Exhaust Pipe.> < Ref. to REMOVAL , Rear Exhaust Pipe.> < Ref. to REMOVAL , Muffler. >
Remove the center and rear exhaust pipe and muffler. (DOHC turbo model)
< Ref. to REMOVAL , Center Exhaust Pipe.> < Ref. to REMOVAL , Rear Exhaust Pipe.> < Ref. to REMOVAL , Muffler. >

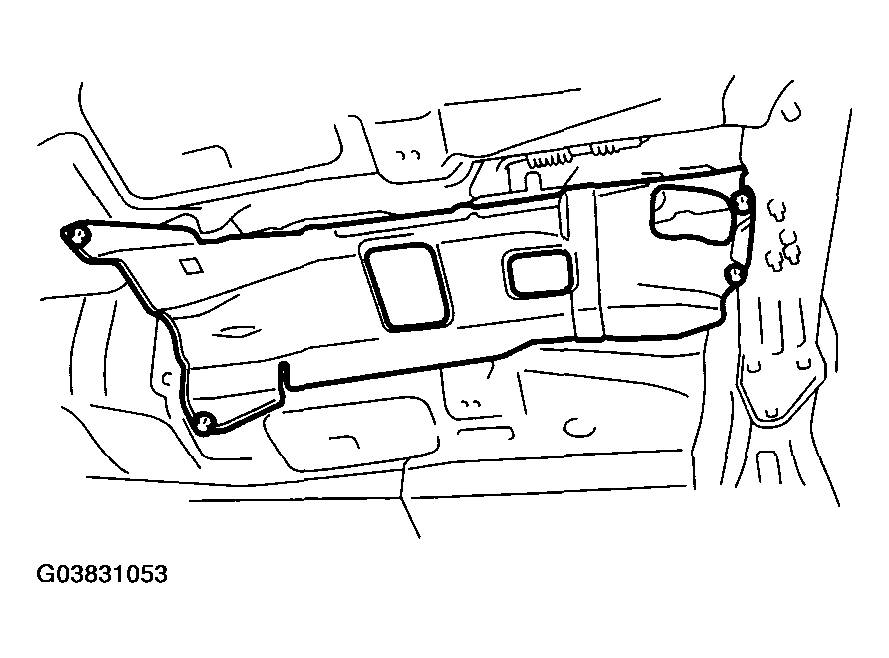

Remove the heat shield cover.

Fig 1: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer from range select lever.

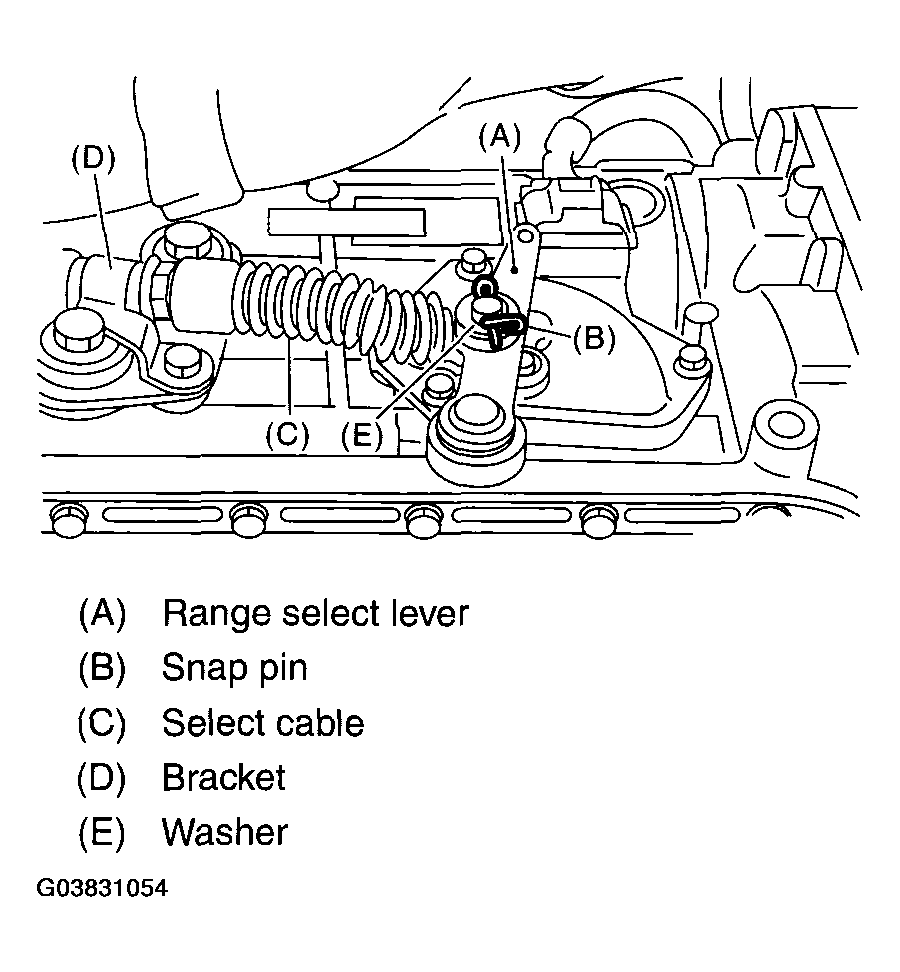

- 4AT

  Fig 2: Removing Snap Pin And Washer From Range Select Lever (4At)
  Courtesy of SUBARU OF AMERICA, INC.

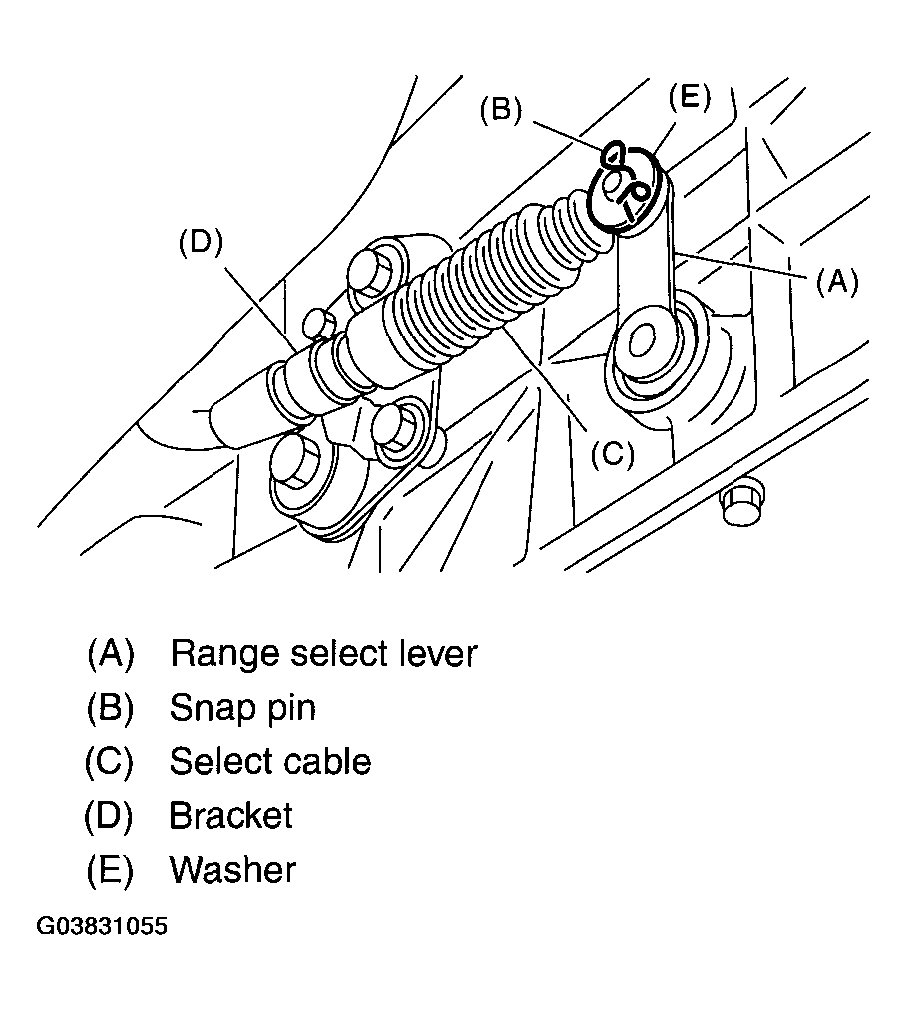

- 5AT
Fig 3: Removing Snap Pin And Washer From Range Select Lever (5At)
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from transmission case.

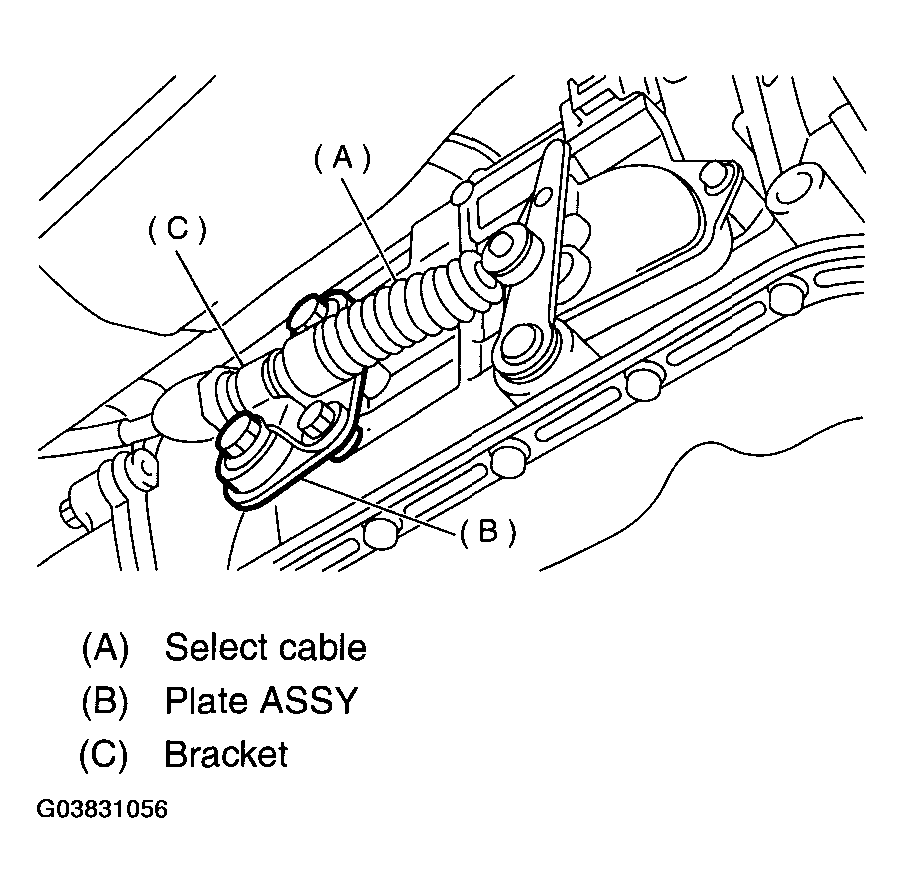

- 4AT

  Fig 4: Removing Plate Assembly (4At)
  Courtesy of SUBARU OF AMERICA, INC.

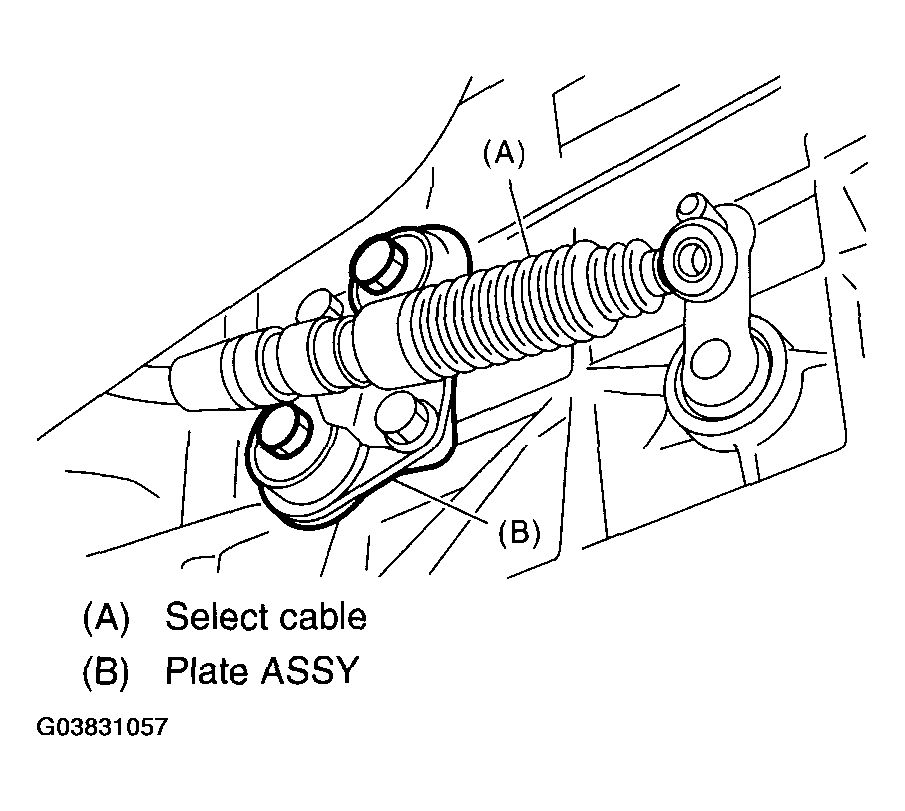

- 5AT
Fig 5: Removing Plate Assembly (5At)
Courtesy of SUBARU OF AMERICA, INC.

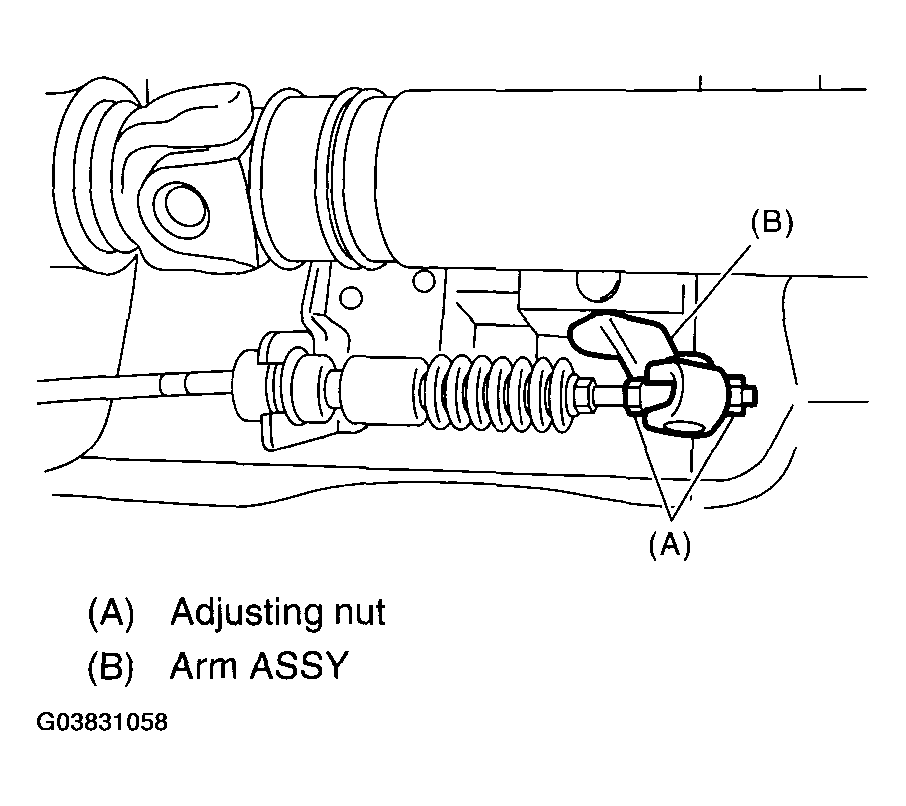

Disconnect the cable from arm assembly.

Fig 6: Disconnecting Cable From Arm Assembly
Courtesy of SUBARU OF AMERICA, INC.

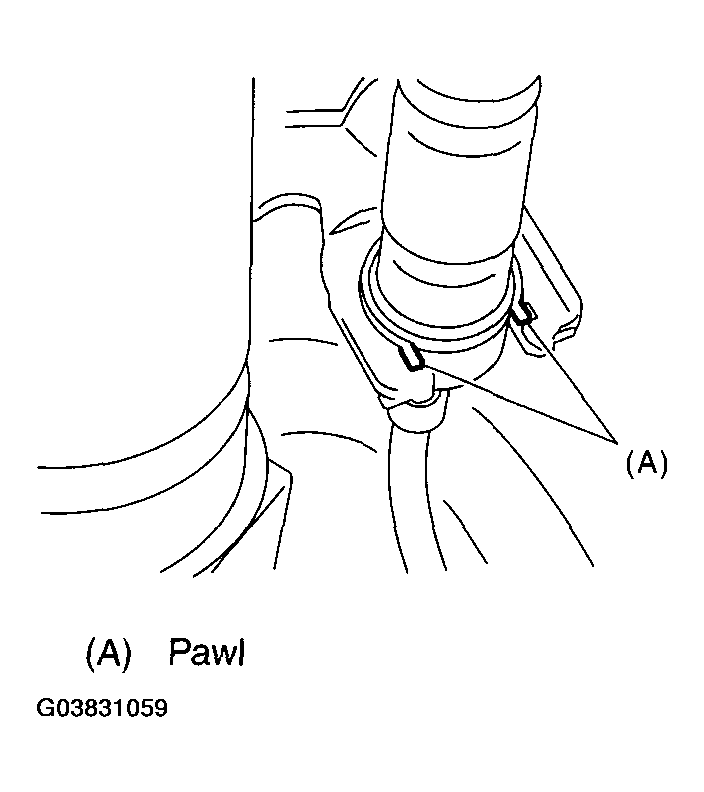

Raise the pawl of clamp to remove the cable from bracket.

Fig 7: Removing Cable From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
