2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Front Axle: Disassembly
WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

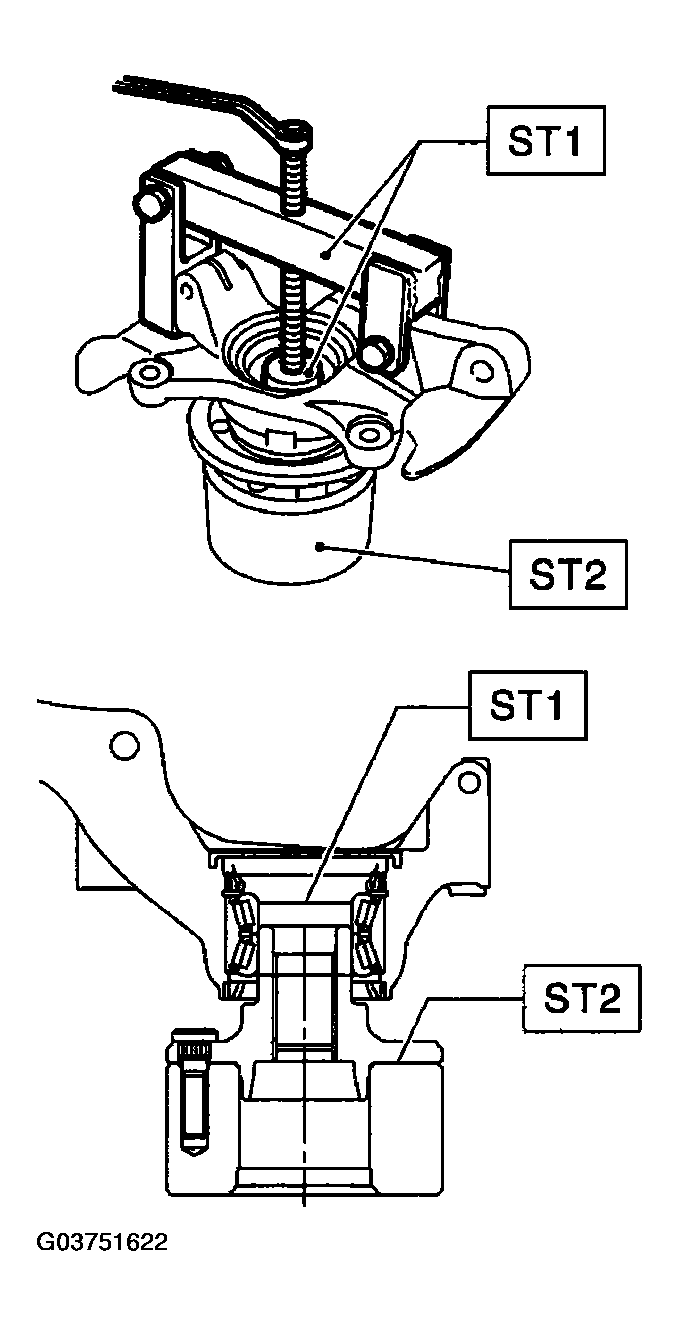

- Using ST1, support housing and hub securely.
- Attach ST2 to housing and drive hub out.
ST1 927060000 HUB REMOVER
ST2 927080000 HUB STAND
If inner bearing race remains in the hub, remove it with a suitable tool (commercially available).
CAUTION:- Be careful not to scratch polished area of hub.
- Be sure to install inner race on the side of outer race from which it was removed.
- Replace the removed hub with new one.
