2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE

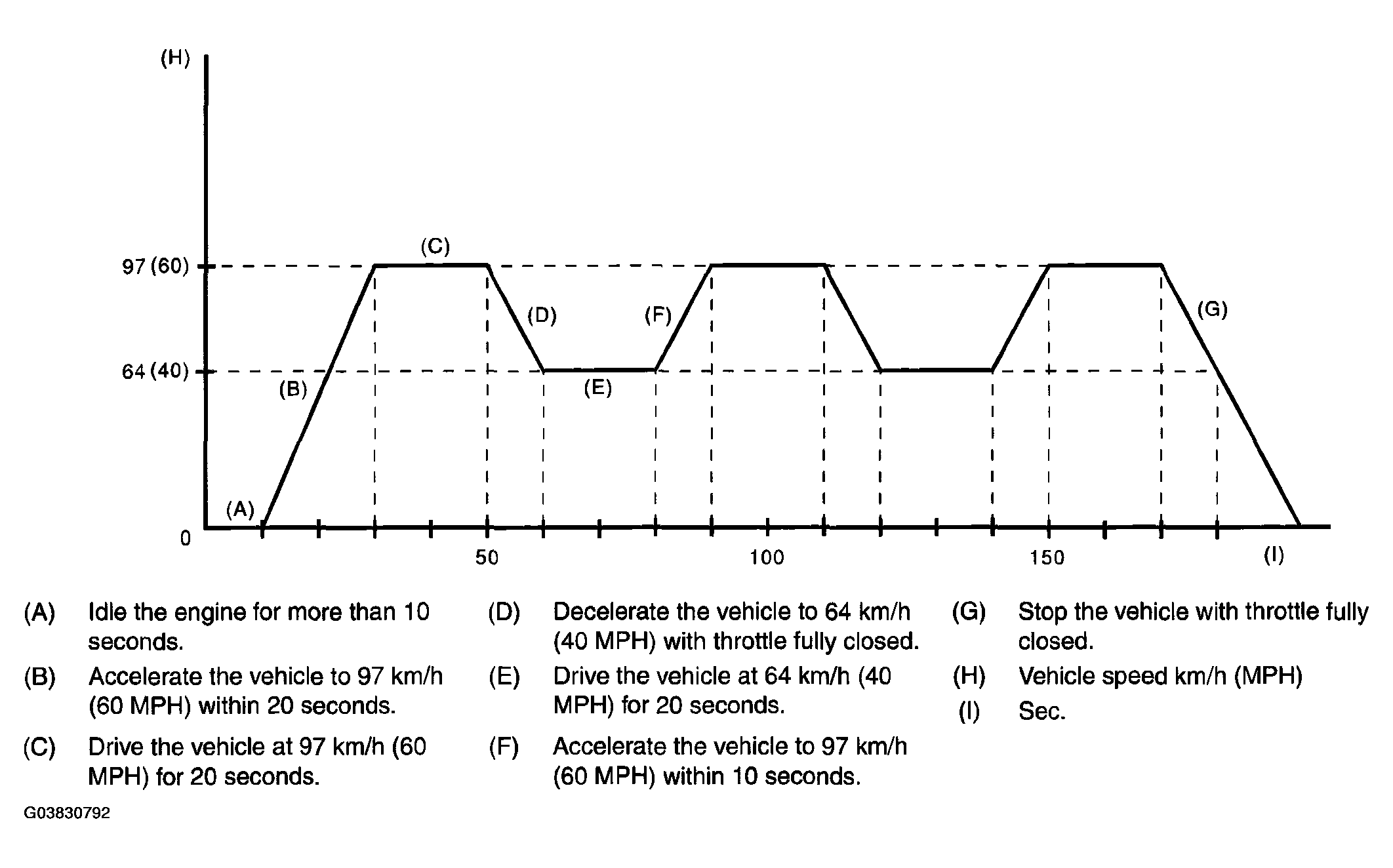

Drive The Vehicle With Following Drive Patterns
DTC CHART
| DTC | Item | On condition |
|---|---|---|
| *P0026 | Intake Valve Control Solenoid Circuit Range/Performance (Bank 1) | - |
| *P0028 | Intake Valve Control Solenoid Circuit Range/Performance (Bank 2) | - |
| *P0030 | HO2S Heater Control Circuit (Bank 1 Sensor 1) | - |
| *P0050 | HO2S Heater Control Circuit (Bank 2 Sensor 1) | - |
| *P0068 | Manifold Absolute Pressure/Performance | - |
| *P0076 | Intake Valve Control Circuit Low (Bank 1) | - |
| *P0082 | Intake Valve Control Circuit Low (Bank 2) | - |
| *P0101 | Mass or Volume Air Flow Circuit Range/Performance | - |
| *P0134 | 02 Sensor Circuit No Activity Detected (Bank 1 Sensor 1) | - |
| *P0139 | 02 Sensor Circuit Slow Response (Bank 1 Sensor 2) | - |
| *P0154 | 02 Sensor Circuit No Activity Detected (Bank 2 Sensor 1) | - |
| *P0159 | O2 Sensor Circuit Slow Response (Bank 2 Sensor 2) | - |
| *P0171 | System Too Lean (Bank 1) | - |
| *P0172 | System Too Rich (Bank 1) | - |
| *P0174 | System Too Lean (Bank 2) | - |
| *P0175 | System Too Rich (Bank 2) | - |
| *P0181 | Fuel Temperature sensor "A" Circuit Range/Performance | - |
| *P0301 | Cylinder 1 Misfire Detected | Diagnosis may complete at once |
| *P0302 | Cylinder 2 Misfire Detected | Diagnosis may complete at once |
| *P0303 | Cylinder 3 Misfire Detected | Diagnosis may complete at once |
| *P0304 | Cylinder 4 Misfire Detected | Diagnosis may complete at once |
| *P0305 | Cylinder 5 Misfire Detected | Diagnosis may complete at once |
| *P0306 | Cylinder 6 Misfire Detected | Diagnosis may complete at once |
| *P0461 | Fuel Level Sensor Circuit Range/Performance | - |
| *P2103 | Throttle Actuator Control Motor Circuit High | - |
| *P2504 | Charging System Voltage LOW | - |
