DTC P0604 Internal Control Module Random Access Memory (Ram) Error
DTC DETECTING CONDITION :
- Detect as soon as malfunction occurs.
- GENERAL DESCRIPTION < Ref. to , DTC P0604 INTERNAL CONTROL MODULE RANDOM ACCESS MEMORY (RAM) ERROR , Diagnostic Trouble Code (DTC) Detecting Criteria. >
TROUBLE SYMPTOM :
- Engine does not start.
- Engine stalls.

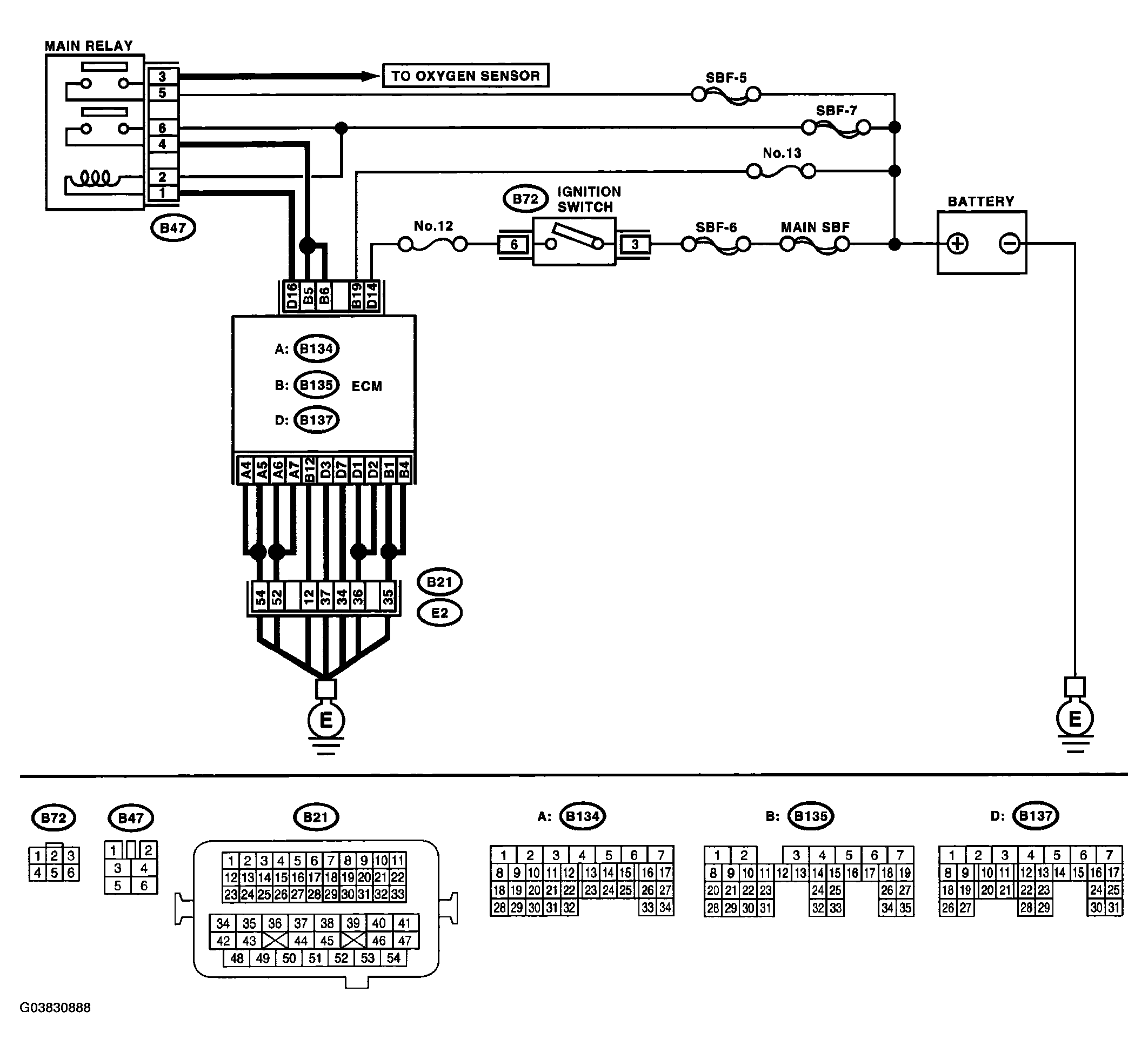

WIRING DIAGRAM :
| Step | Check | Yes | No | |
|---|---|---|---|---|
| 1 CHECK FOR ANY OTHER DTC ON DISPLAY. |
Is any other DTC displayed? | Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > | Temporary poor contact occurs. | |
