2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE

Spark Plug: Adjustment

Clean the spark plugs using a wire brush.

Clean and remove the carbon or oxide deposits. But do not wear away ceramic insulator at this time. If deposits are too stubborn, replace the spark plugs.

NOTE: Do not use a plug cleaner because the spark plugs are applied with iridium tip.

Spark plug gap L:Β

0.7-0.8 mm (0.028-0.031 in)Β

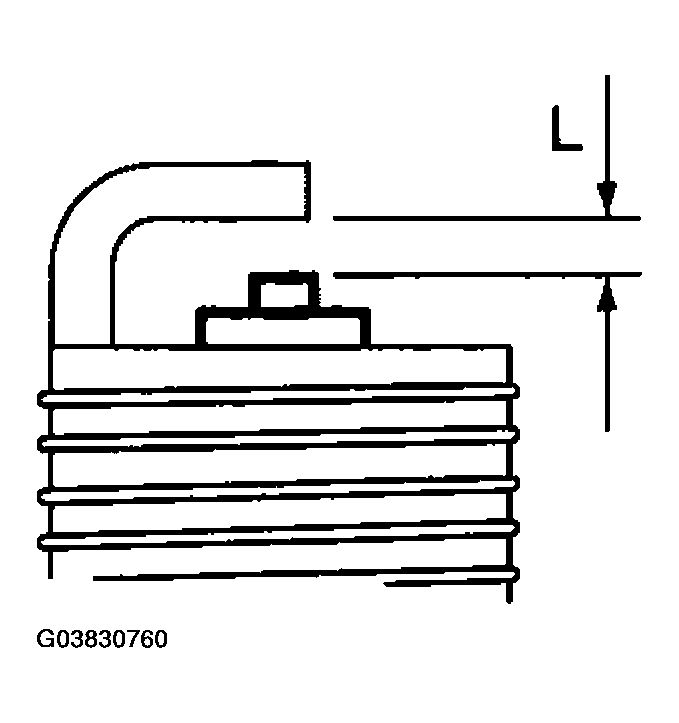

Fig 1: Adjusting Spark Plug Gap
G03830760Courtesy of SUBARU OF AMERICA, INC.
