Rear Oxygen Sensor: Installation
- Before installing rear oxygen sensor, apply anti-seize compound only to the threaded portion of rear oxygen sensor to make the next removal easier.
Anti-seize compound:
SS-30 JET LUBE
CAUTION: Never apply anti-seize compound to the protector of rear oxygen sensor. - Install the rear oxygen sensor.
Tightening torque:
21 N.m (2.1 kgf-m, 15.2 ft-lb)

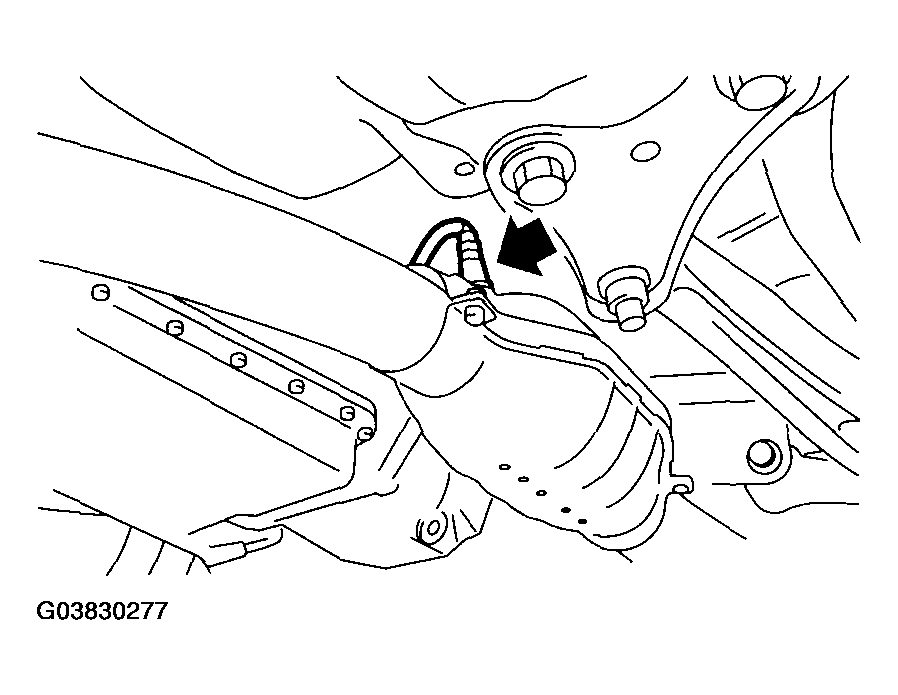

- LH side

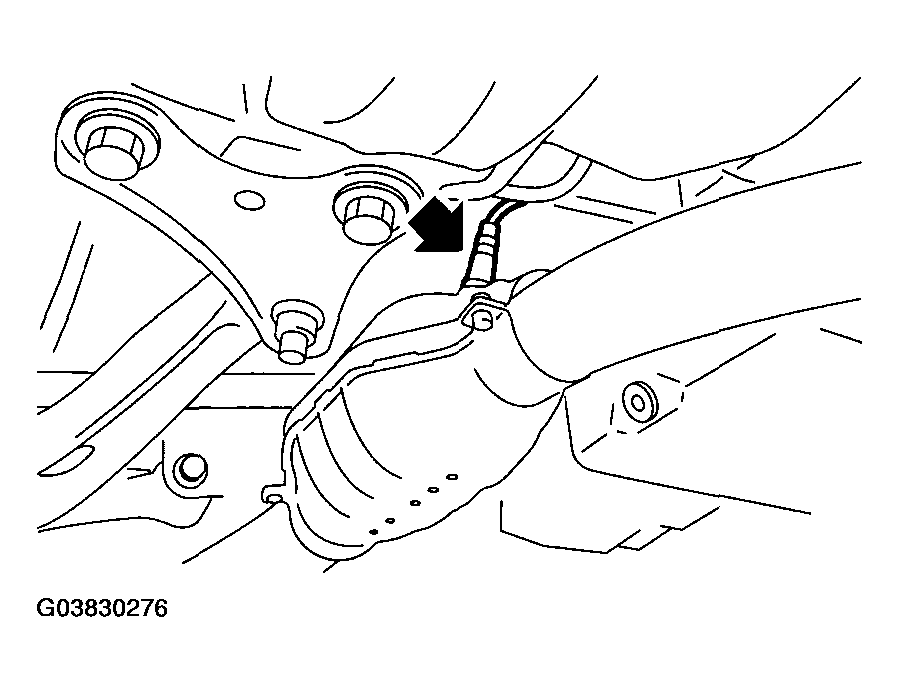

- RH side

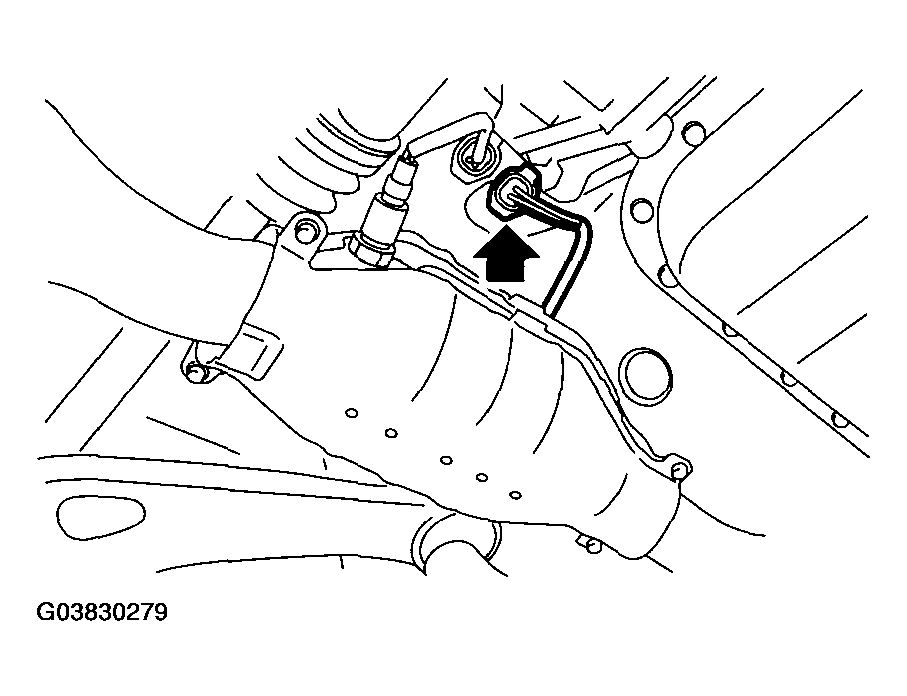

- Hold the harness with clip.

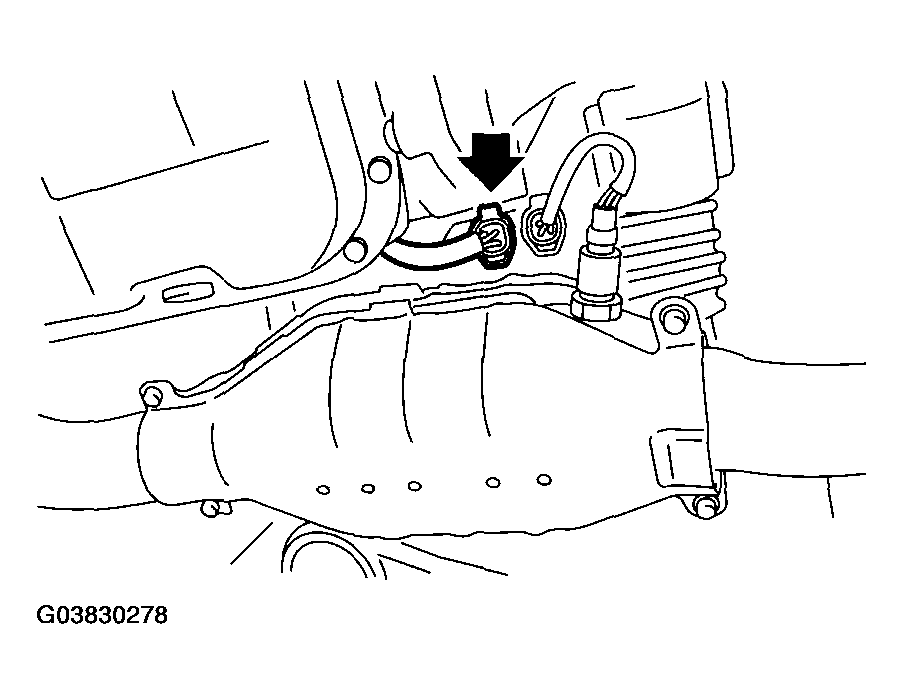

- Connect the connector to rear oxygen sensor.
- LH side
- RH side
- Lower the vehicle.

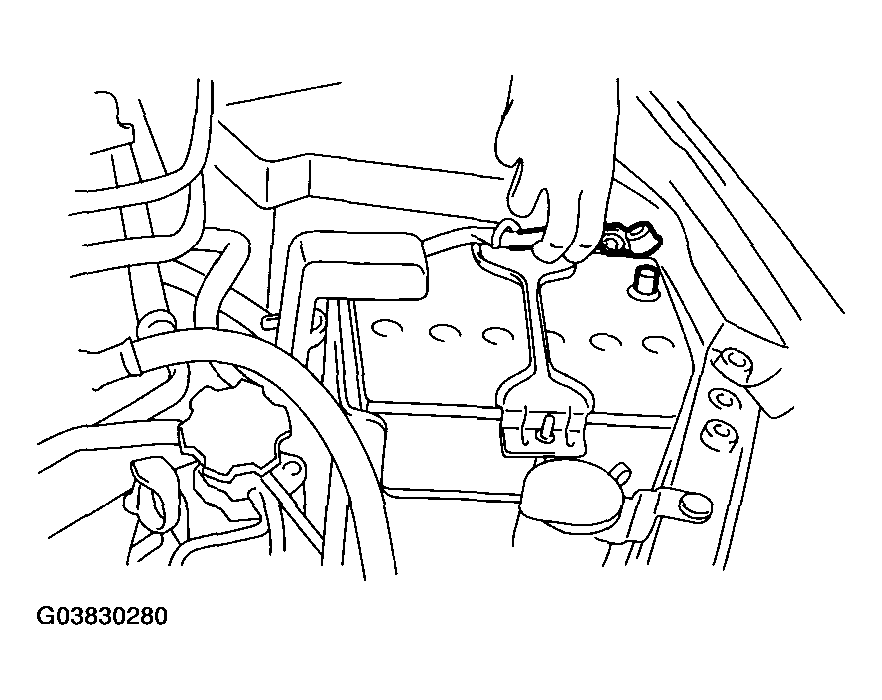

- Connect the battery ground cable to battery.
