2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Intake Manifold: Disassembly
- Remove the engine harness from intake manifold.
- Remove the throttle body. < Ref. to , REMOVAL , Throttle Body. >

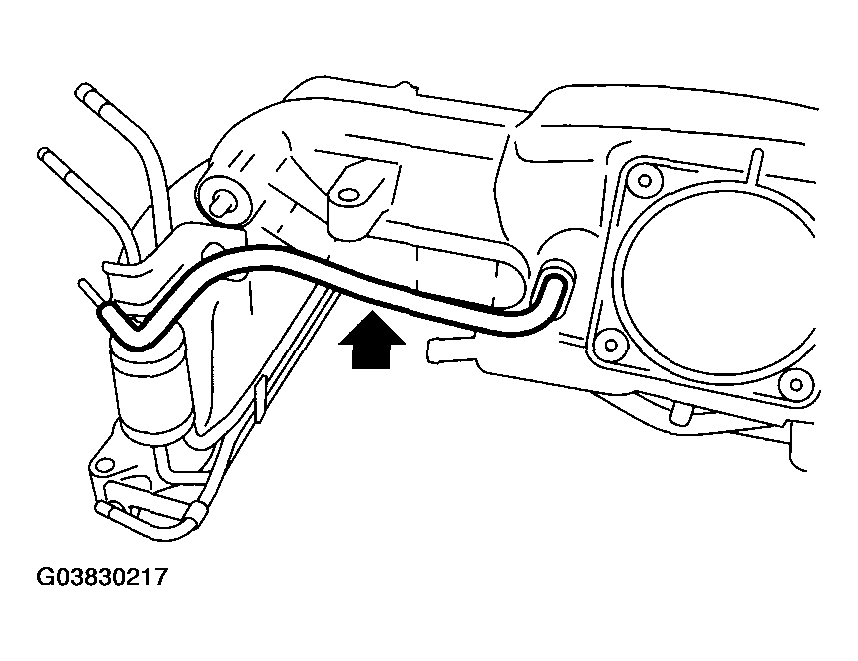

- Disconnect the pressure regulator vacuum hose from intake manifold.
- Remove the manifold absolute pressure sensor. < Ref. to , REMOVAL , Manifold Absolute Pressure Sensor. >
- Remove the purge control solenoid valve. < Ref. to REMOVAL , Purge Control Solenoid Valve. >

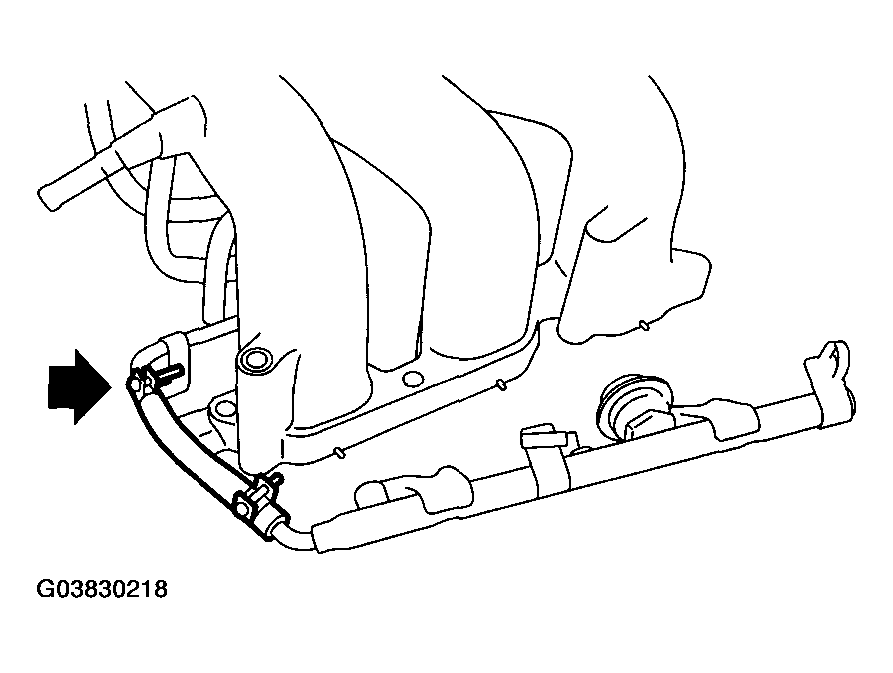

- Loosen the clamp which holds fuel injector pipe to fuel hose, and then disconnect the pipe from fuel hose.

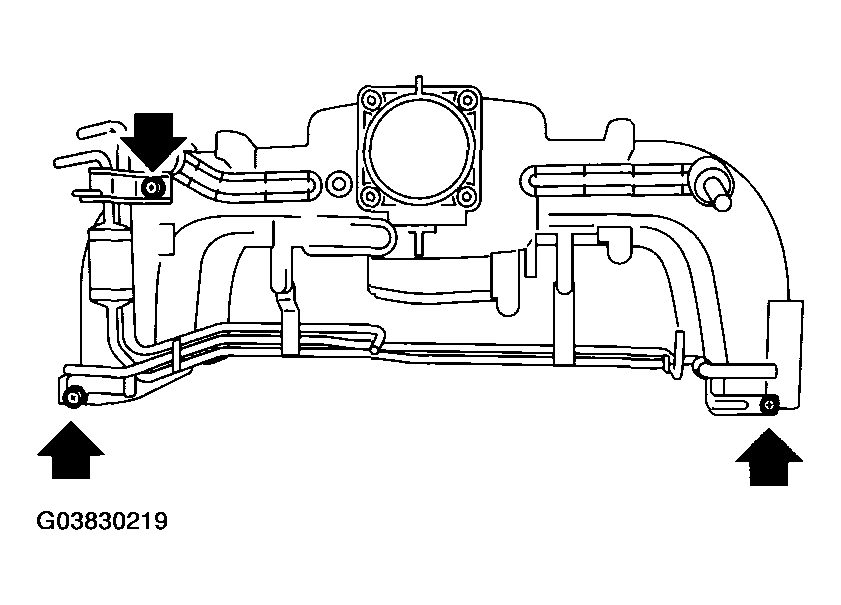

- Remove the bolts which install fuel pipes on intake manifold.
