2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
LH Side
- Remove the collector cover.
- Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
- Open the fuel filler flap lid, and remove the fuel filler cap.
- Remove the battery.

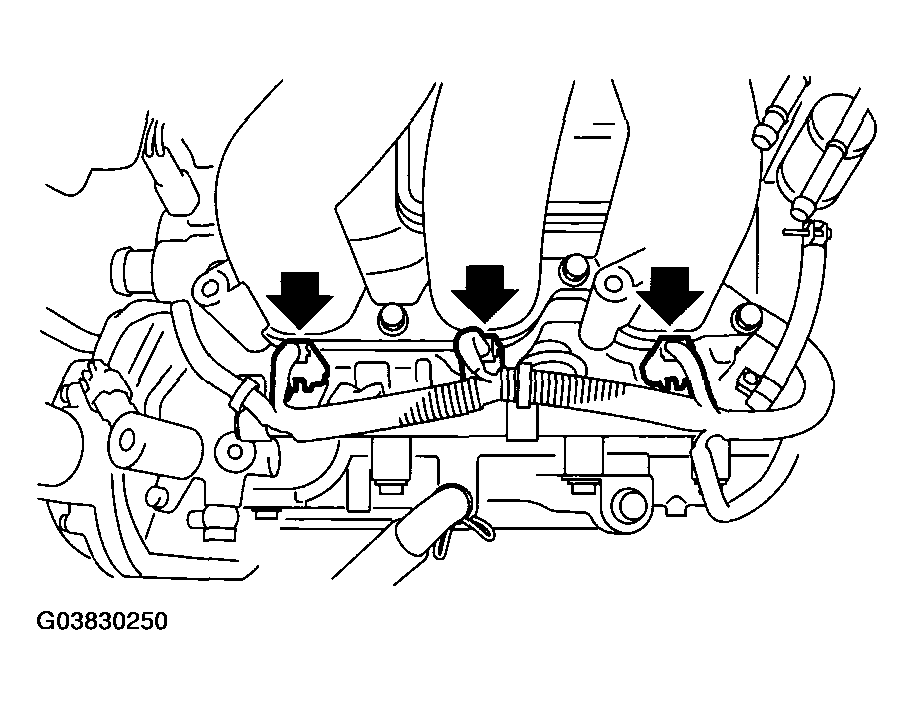

- Remove the generator harness from fuel pipe protector LH.

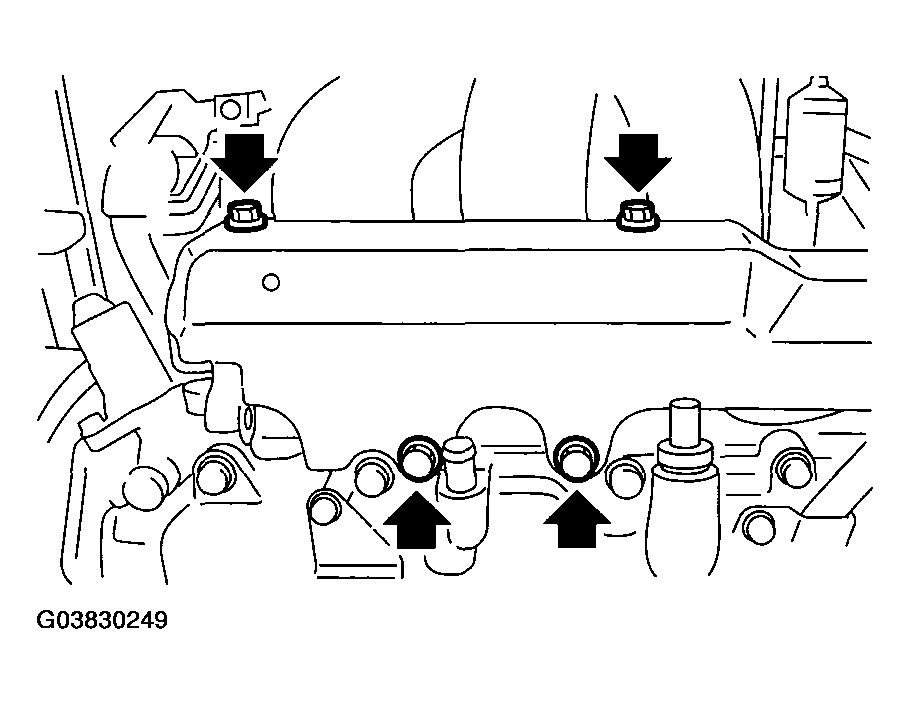

- Remove the fuel pipe protector LH.
- Disconnect the connectors from fuel injector.
- Remove the engine harness from fuel injector pipe LH.

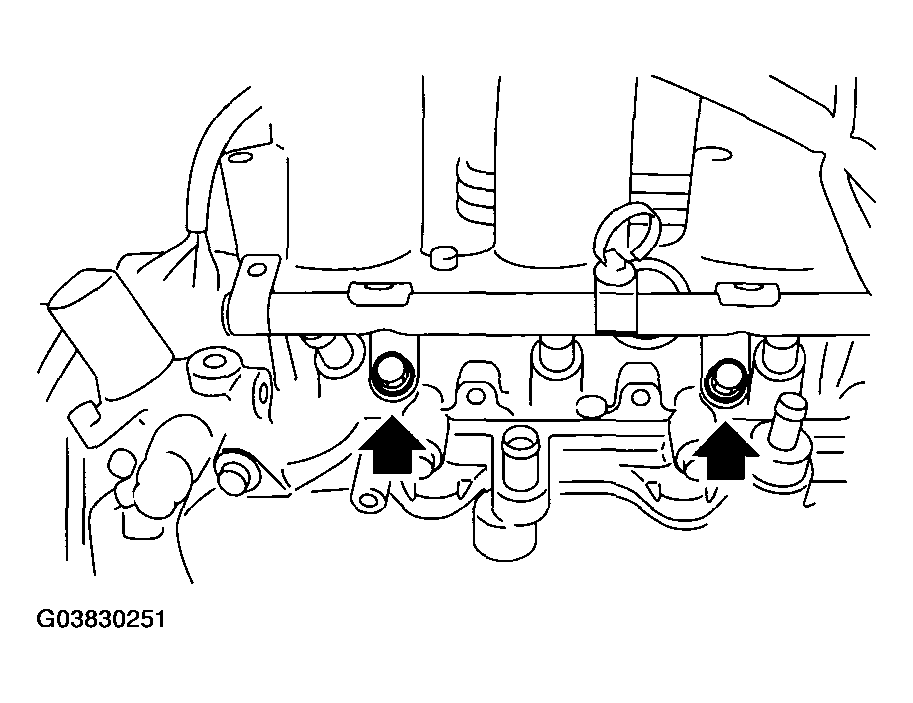

- Remove the bolts which hold fuel injector pipe onto intake manifold.
- Remove the fuel injector while lifting up the fuel injector pipe.
