WARNING:

Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler flap lid, and remove the filler cap.

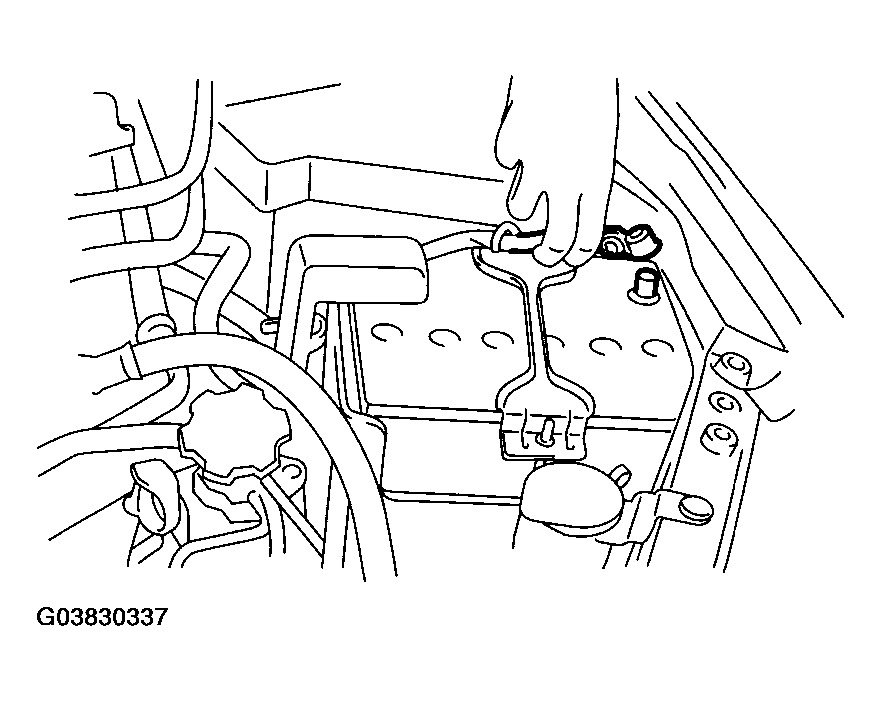

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.

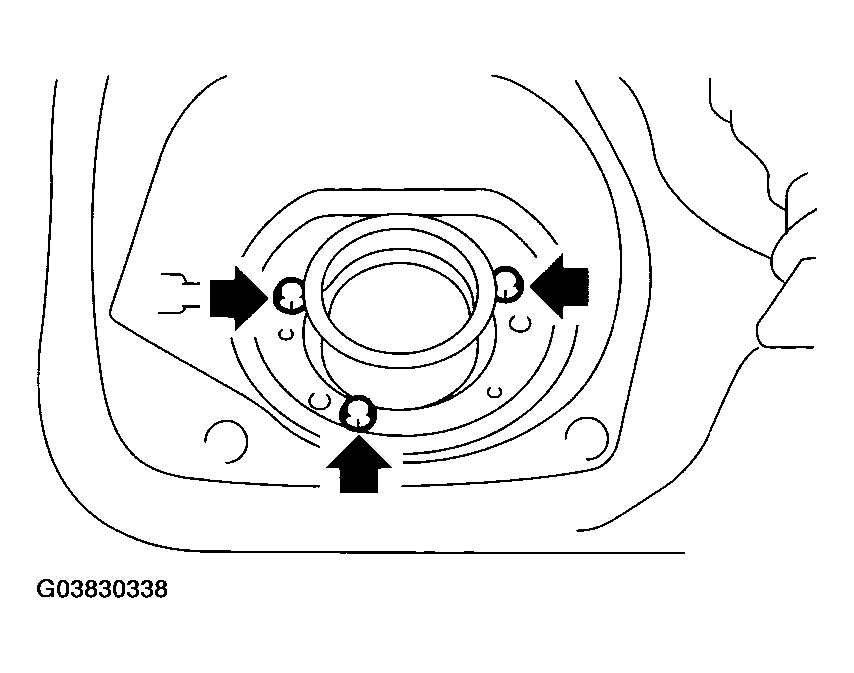

Remove the screws which secure the packing.

Fig 2: Removing Screws Securing Packing
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.

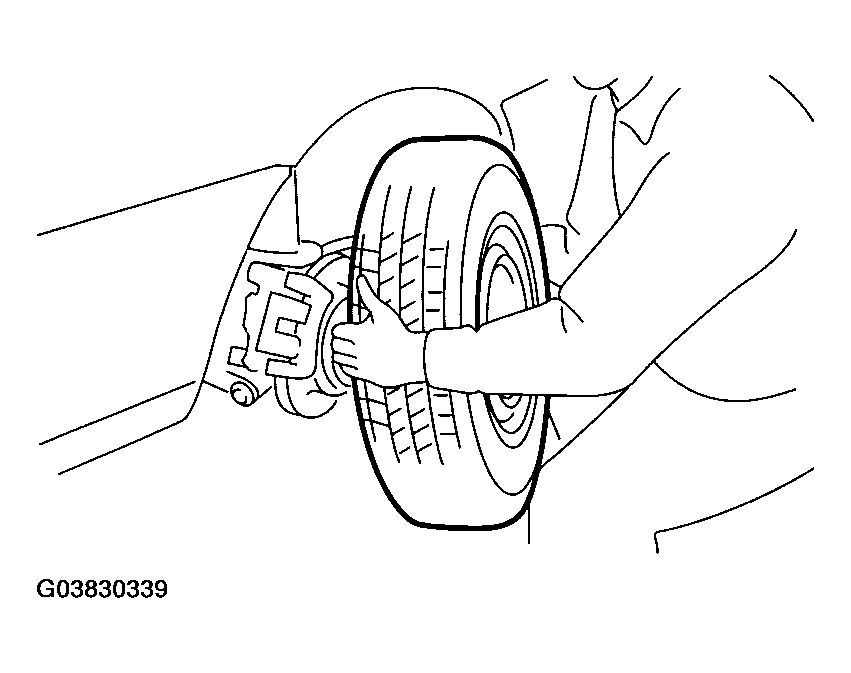

Remove the rear wheel RH.

Fig 3: Removing Rear Wheel RH
Courtesy of SUBARU OF AMERICA, INC.
Drain fuel from fuel tank. < Ref. to , DRAINING FUEL , PROCEDURE, Fuel. >
Remove the mud guard. < Ref. to REMOVAL , Mud Guard. >
Remove the rear sub frame. < Ref. to REMOVAL , Rear Sub Frame. >

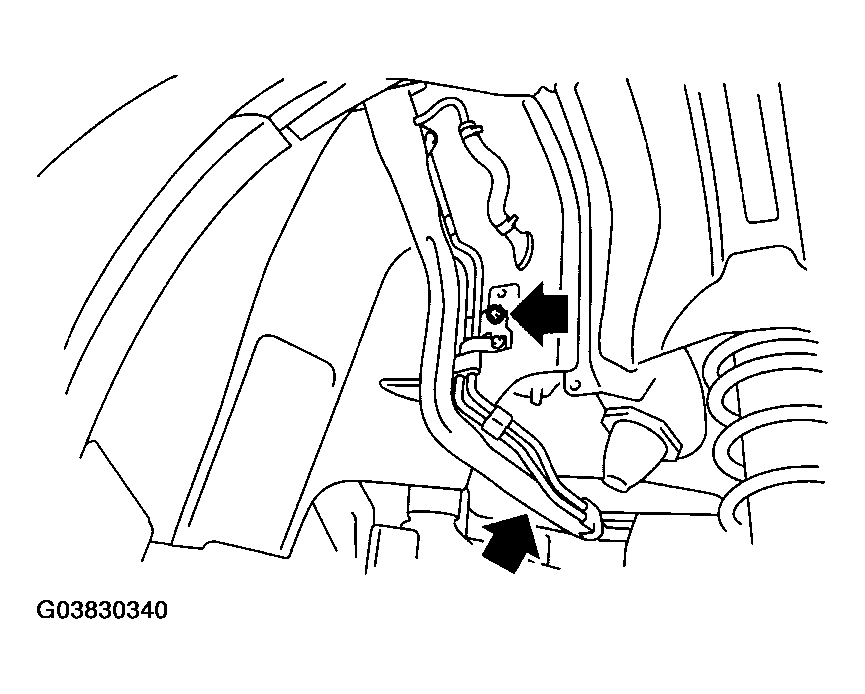

Remove the bolts which hold the fuel filler pipe bracket on the body.

Fig 4: Removing Bolts Holding Fuel Filler Pipe Bracket
Courtesy of SUBARU OF AMERICA, INC.

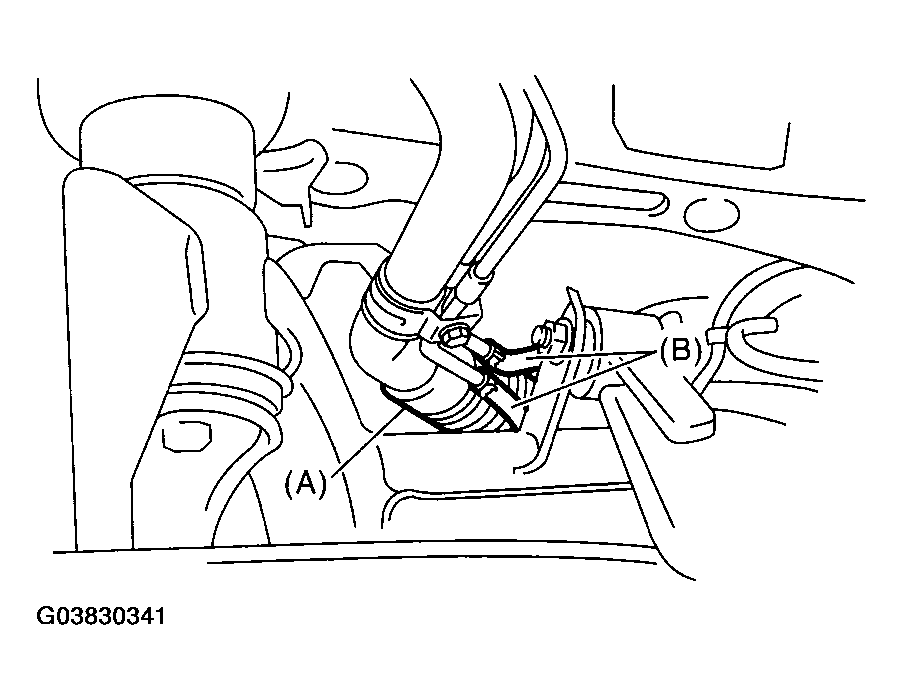

Loosen the clamp and disconnect the fuel filler hose (A) and evaporation hose (B).

Fig 5: Disconnecting Fuel Filler Hose
Courtesy of SUBARU OF AMERICA, INC.
