2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Front Oxygen (A/F) Sensor: Removal
- Set the vehicle on a lift.

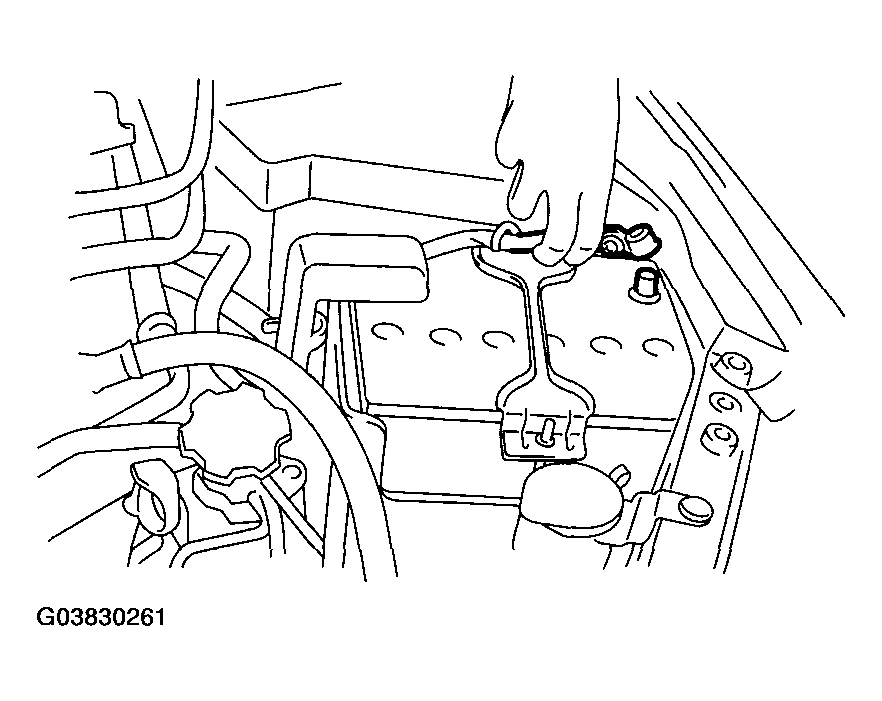

- Disconnect the ground cable from battery.
- Lift-up the vehicle.

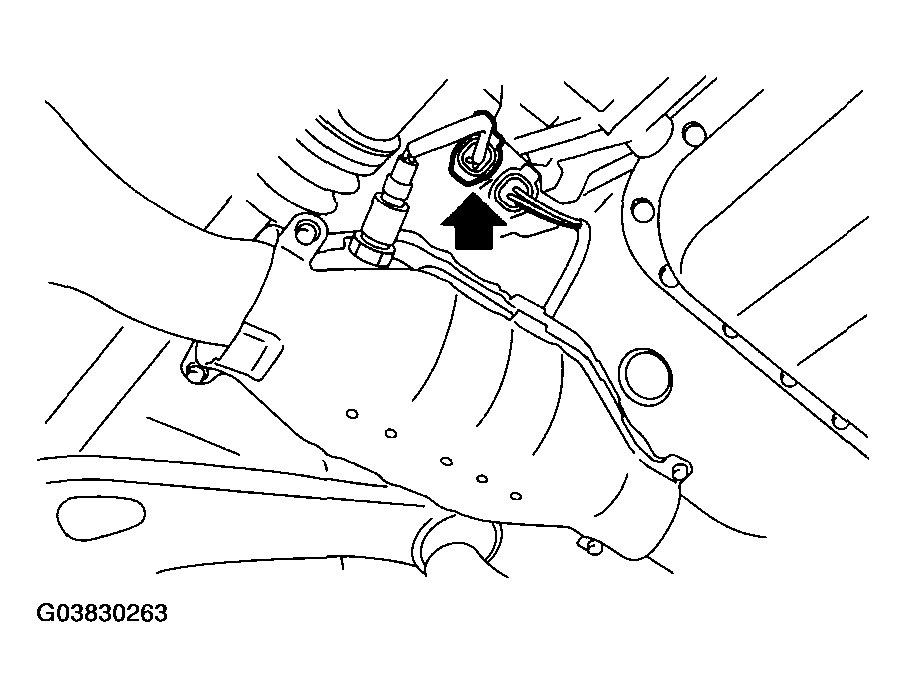

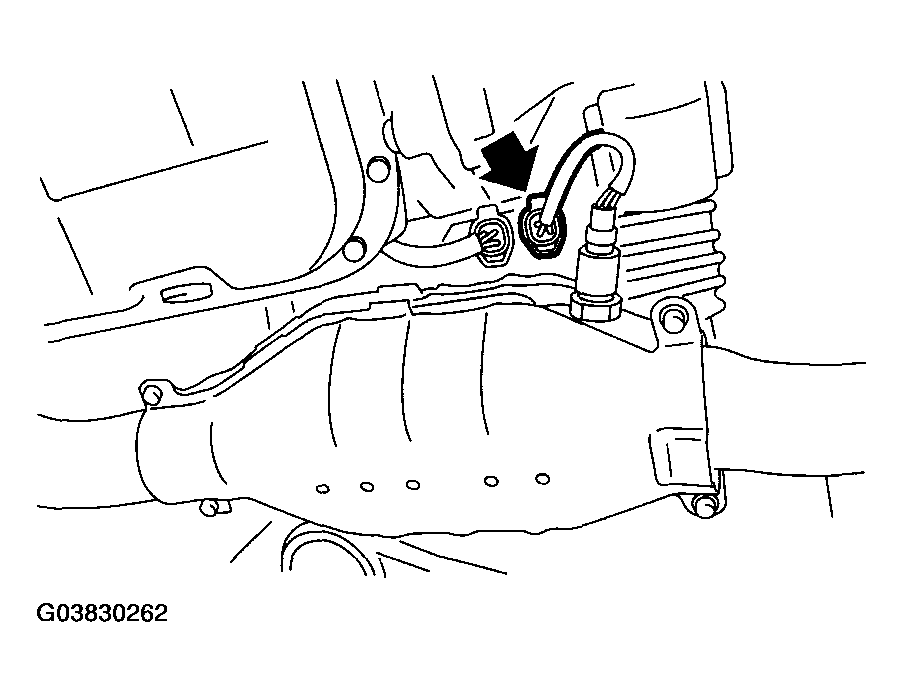

- Disconnect the connector of front oxygen (A/F) sensor.
- LH side
- RH side
- Apply spray-type lubricant to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.

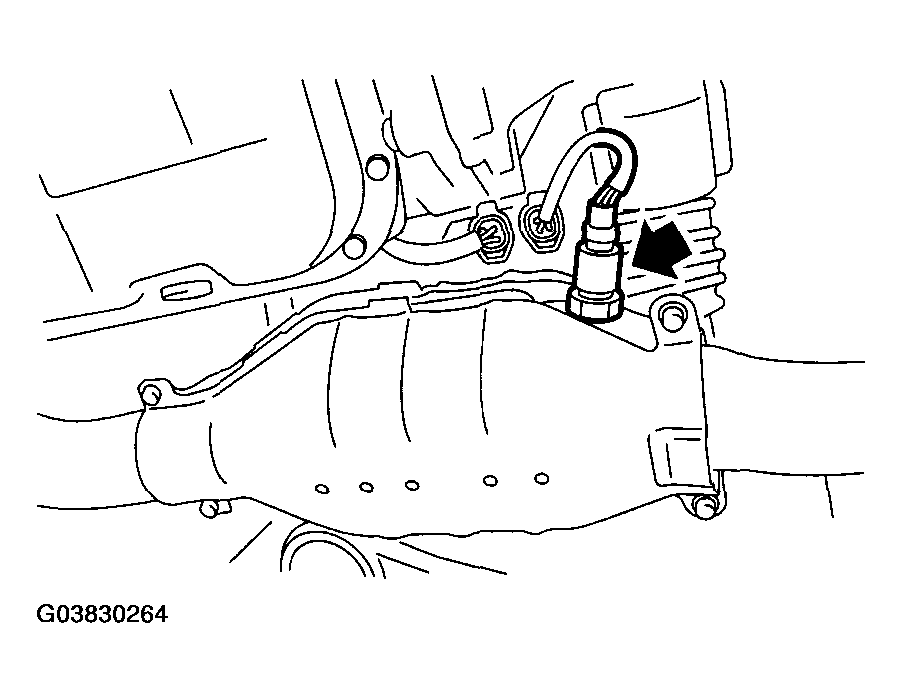

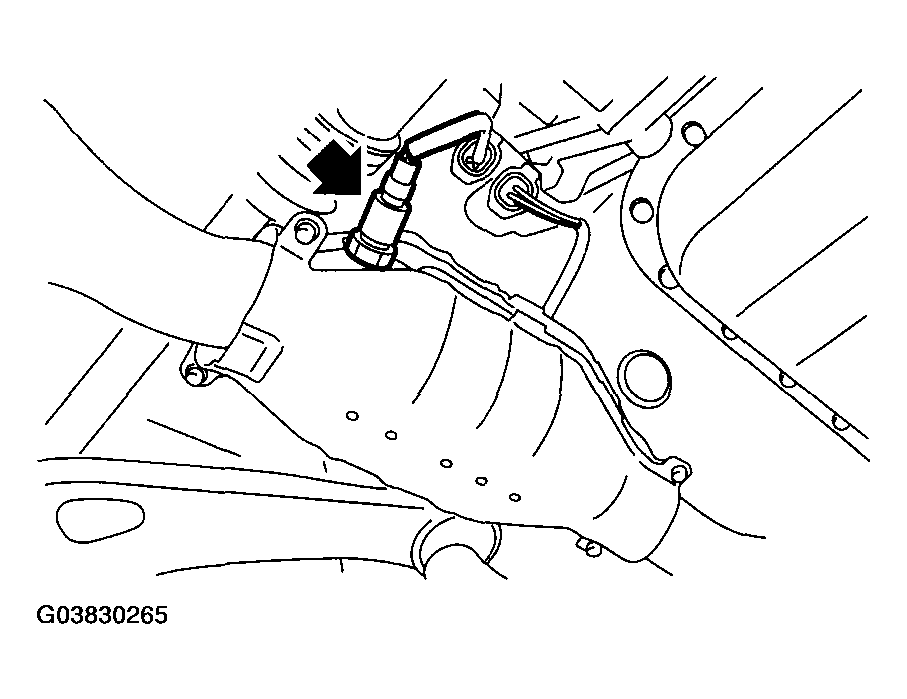

- Remove the front oxygen (A/F) sensor.
CAUTION:
When removing the front oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.
- LH side
- RH side
