2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Removal
- Remove the collector cover.

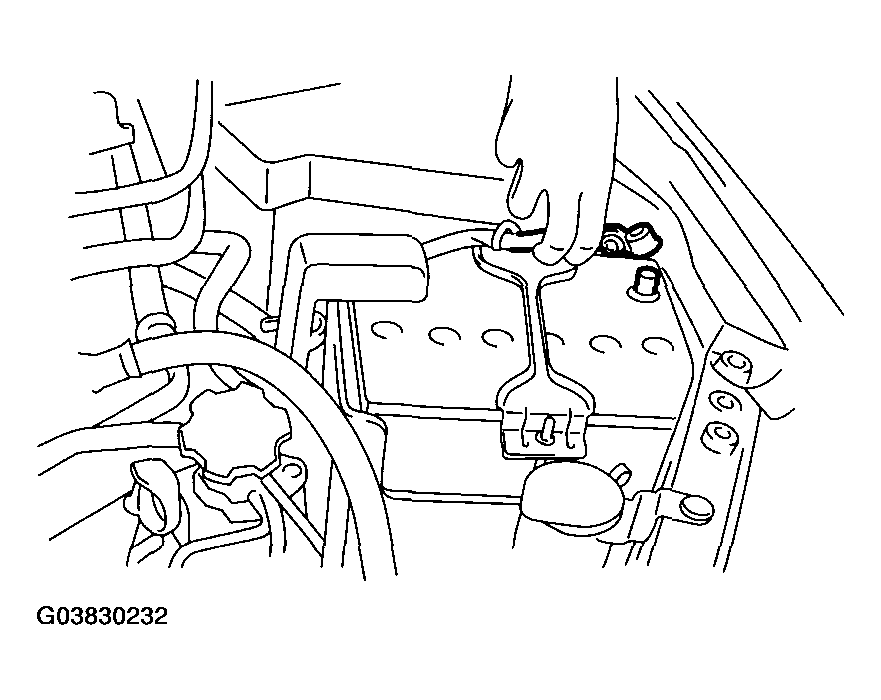

- Disconnect the ground cable from battery.
- Remove the generator harness from fuel pipe protector LH.

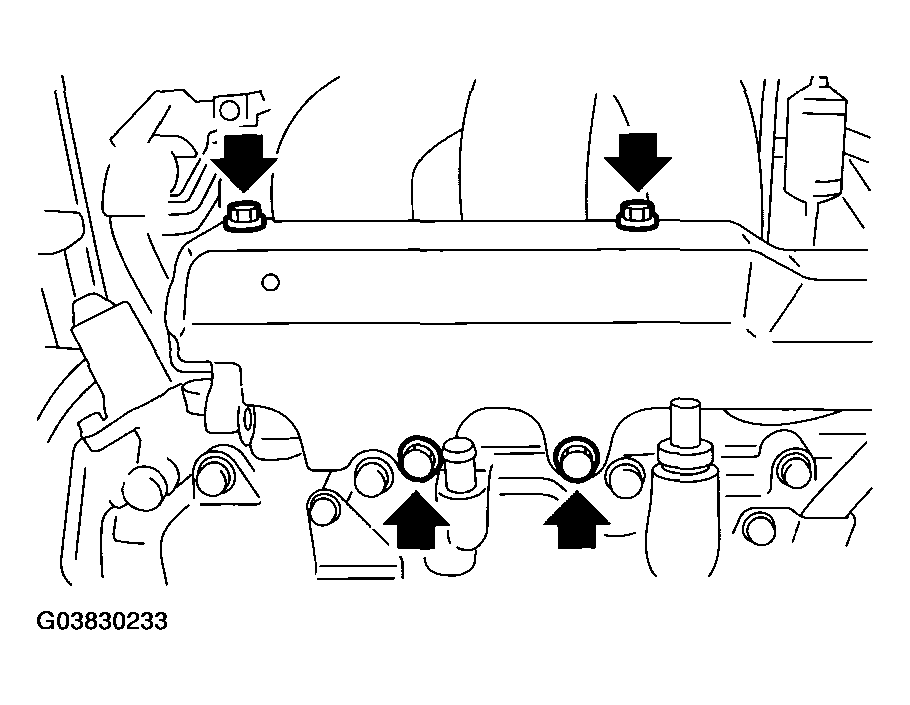

- Remove the fuel pipe protector LH.

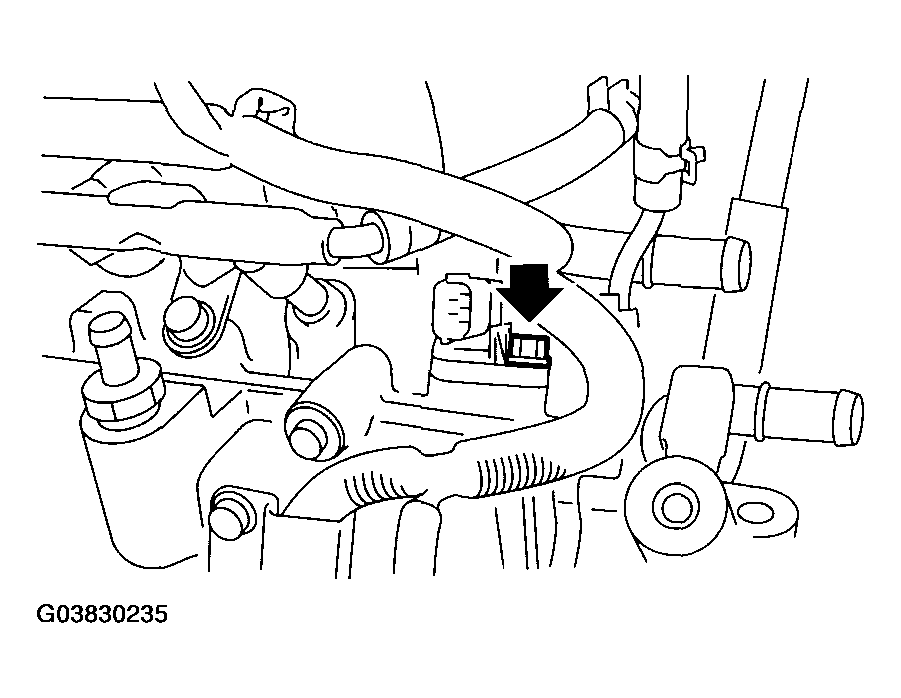

- Disconnect the connector from camshaft position sensor LH.

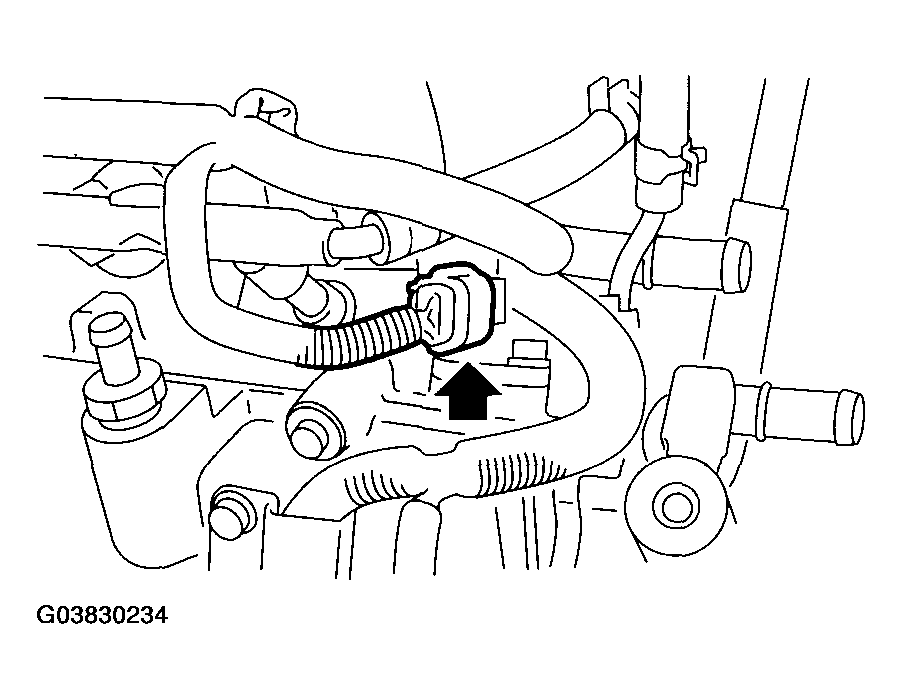

- Remove the camshaft position sensor LH.
- Remove the camshaft position sensor RH in the same procedure as LH.
