2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE

Switch Assembly

  1. Return spring check

    Make sure the plunger returns to its original position immediately after pressed-in then released.

    Fig 1: Checking Return Spring
    G03828346Courtesy of SUBARU OF AMERICA, INC.
  2. Magnet switch continuity test

Be sure there is continuity between the terminals S and M, and between terminal S and ground. Use a circuit tester.

Also check to be sure there is no continuity between terminal M and B.

Terminal / Specified resistance:Β

S - M / Less than 1 Ω

S - Ground / Less than 1 Ω

M - B / More than 1 MΩ

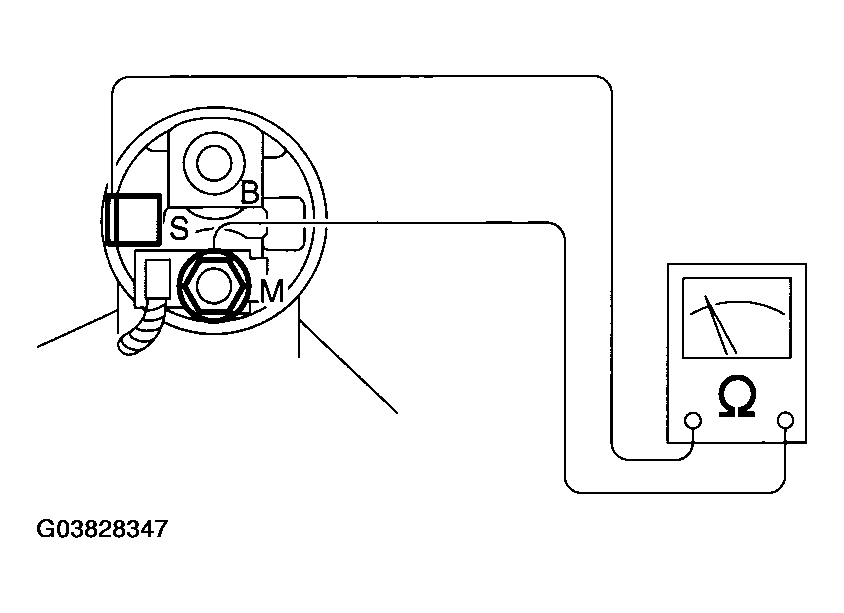

Fig 2: Checking Continuity Between Terminals S And M, And Between Terminal S And Ground
G03828347Courtesy of SUBARU OF AMERICA, INC.
