Starting/Charging Systems (H4SO): Generator: Inspection: Stator

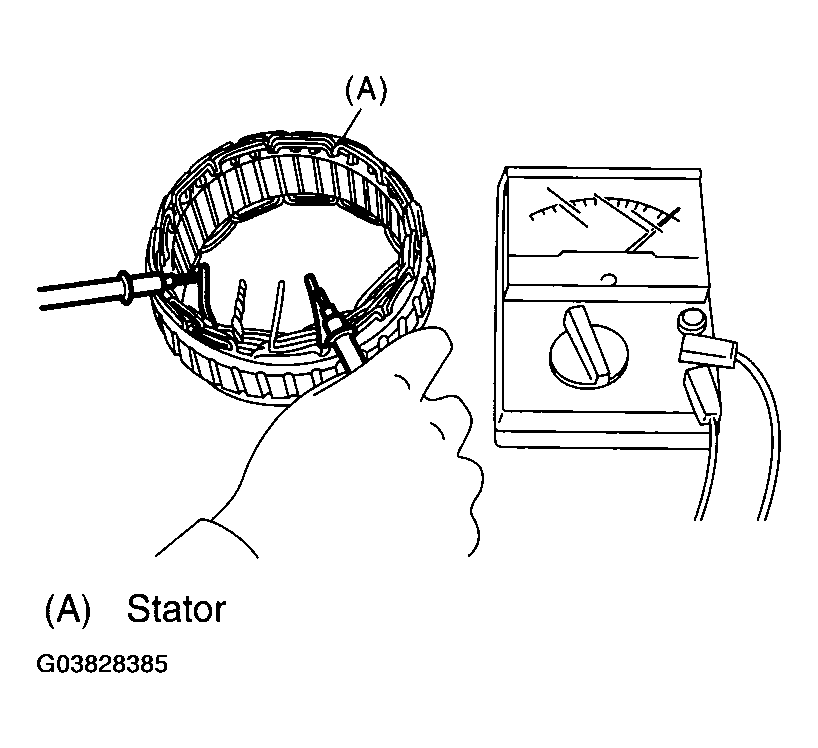

- Continuity test
Inspect the stator coil for continuity between each end of the lead wires. If resistance is 1 MΞ© or more, the lead wire is broken, and so replace the stator assembly.

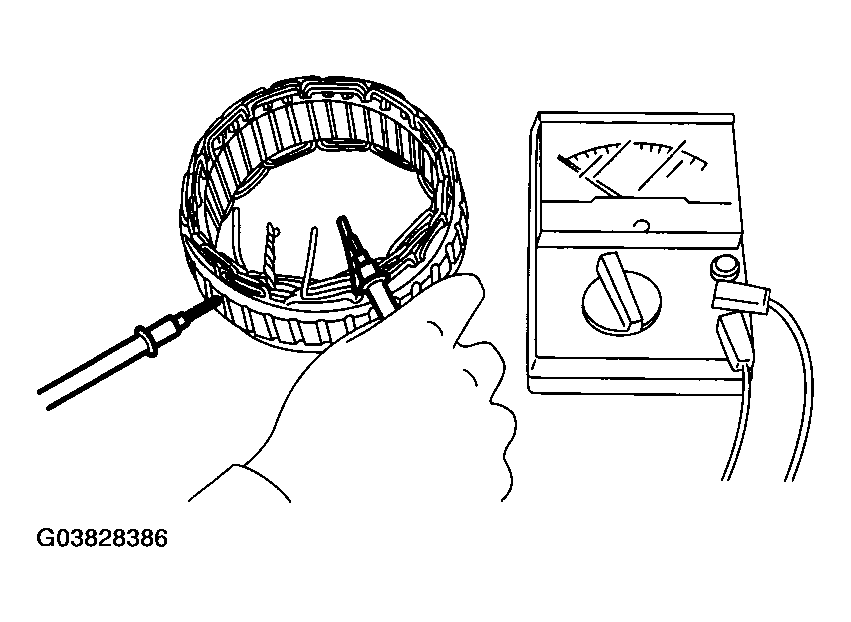

- Insulation test
Inspect the stator coil for continuity between stator core and each end of lead wire. If resistance is 1 Ξ© or less, the stator coil is grounded, and so replace the stator assembly.
