2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE

Starting/Charging Systems (H4SO): Generator: Inspection: Diode

CAUTION: Never use a mega tester (designed for reading high voltage) or any other similar instrument for this test; otherwise, the diodes may be damaged.

Checking positive diode Check for continuity between the diode lead and positive side heat sink. The positive diode is in good condition if resistance is 1 Ω or less only in the direction from the diode lead to heat sink.

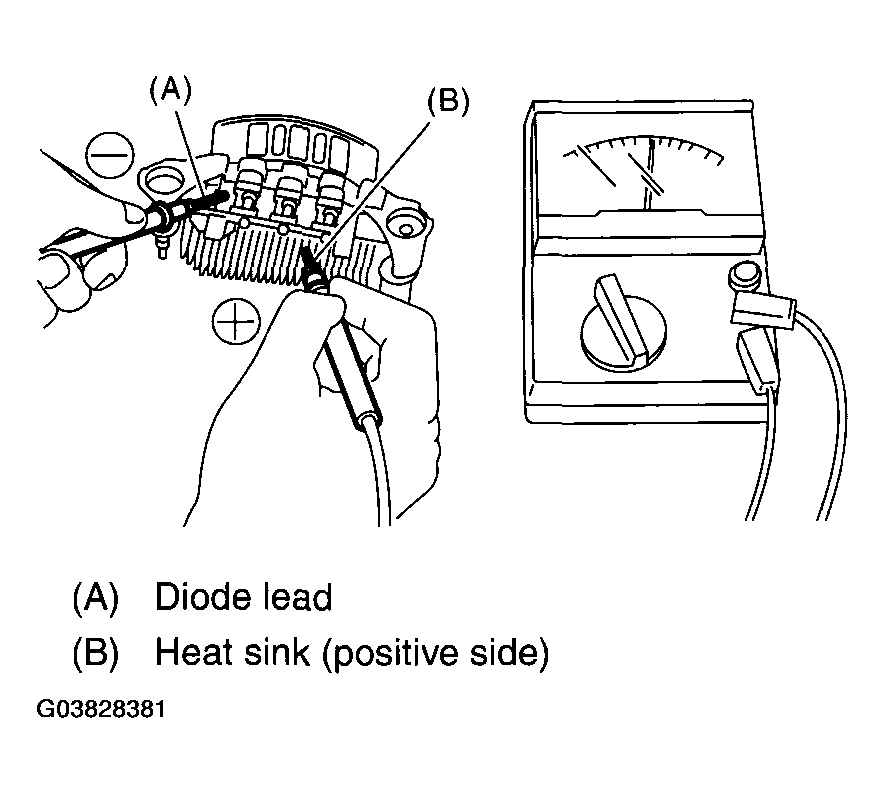

Fig 1: Checking Continuity Between Diode Lead And Positive Side Heat Sink
Courtesy of SUBARU OF AMERICA, INC.
Checking negative diode

Check for continuity between the negative side heat sink and diode lead. The negative diode is in good condition if resistance is 1 Ω or less only in the direction from the heat sink to diode lead.

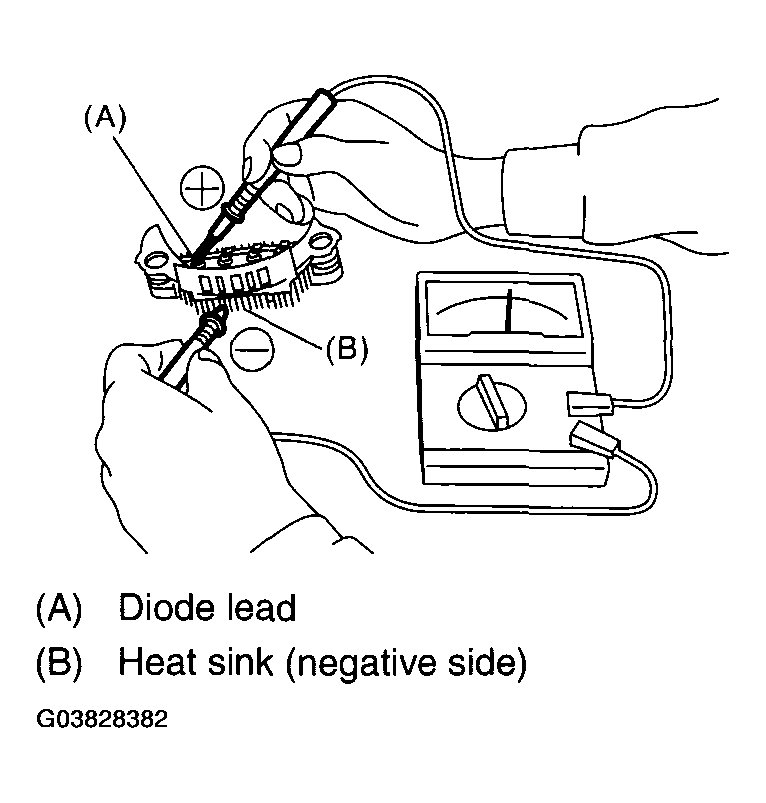

Fig 2: Checking Continuity Between Negative Side Heat Sink And Diode Lead

Courtesy of SUBARU OF AMERICA, INC.
