2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE

Starting/Charging Systems (H4SO): Generator: Disassembly

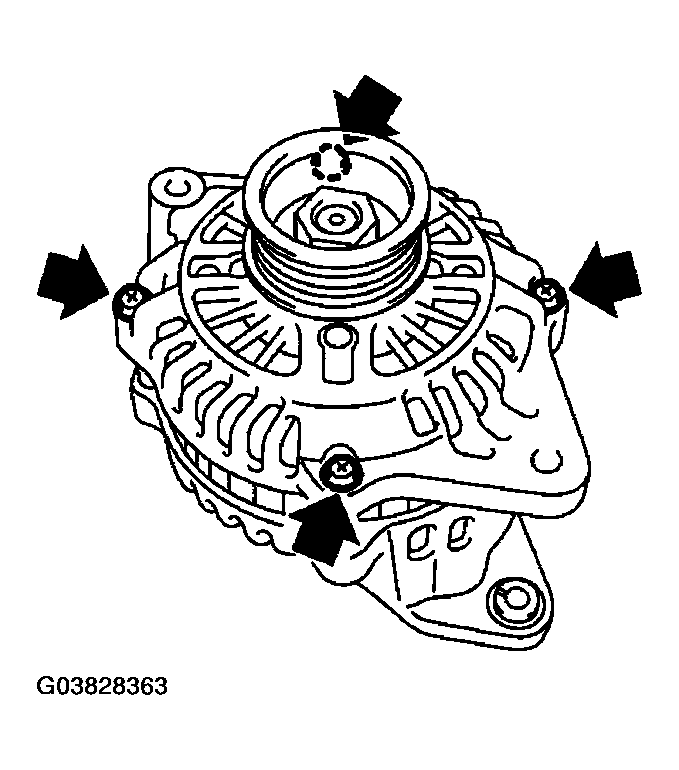

Remove the four through-bolts.

Fig 1: Removing Four Through-Bolts
Courtesy of SUBARU OF AMERICA, INC.

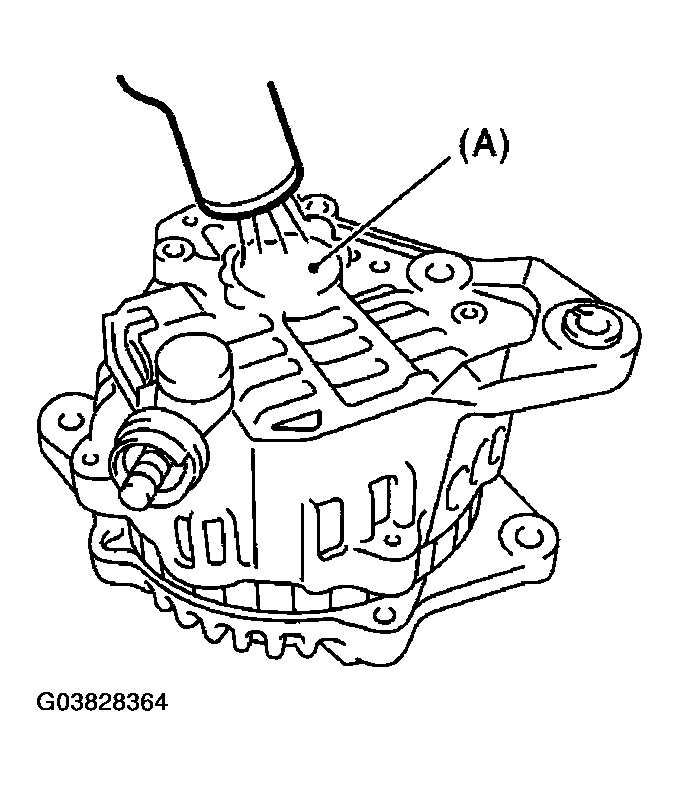

Heat portion (A) of rear cover to 50° (122°) with a heater drier.

Fig 2: Heating Portion Of Rear Cover To 50°
Courtesy of SUBARU OF AMERICA, INC.

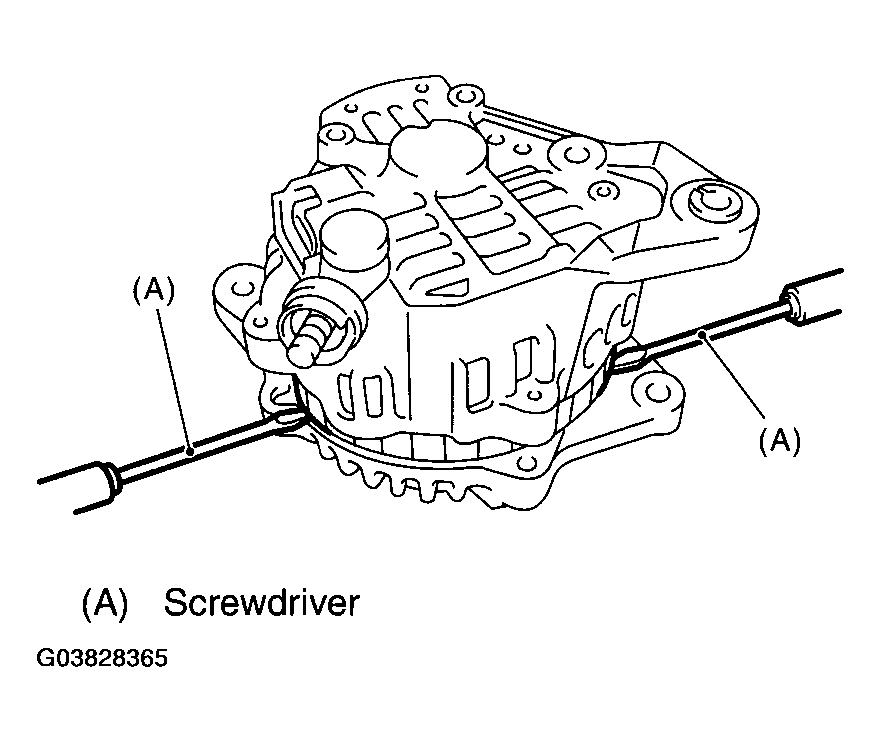

Then insert the tip of a flat tip screwdriver into the gap between stator core and front cover. Pry them apart to disassemble.

Fig 3: Inserting Tip Of A Flat Tip Screwdriver Into Gap Between Stator Core And Front Cover
Courtesy of SUBARU OF AMERICA, INC.

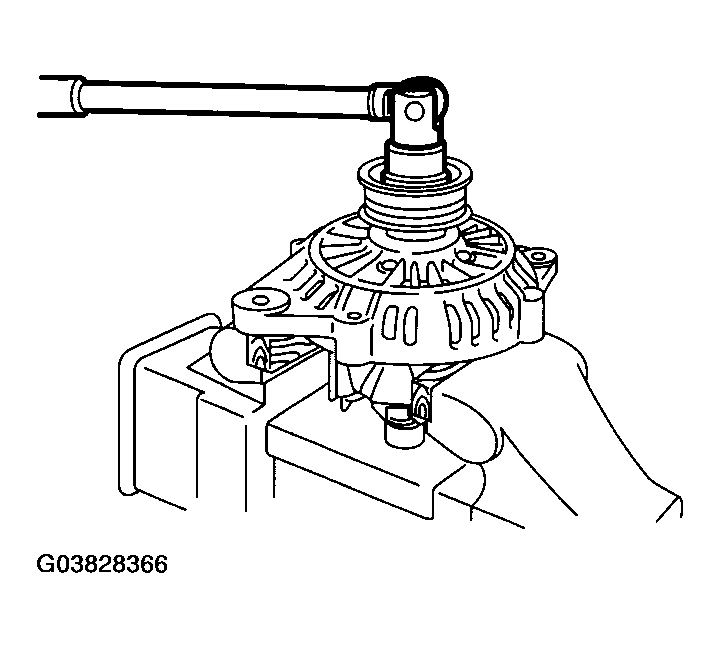

Hold the rotor with a vise and remove pulley nut.

Fig 4: Removing Pulley Nut
Courtesy of SUBARU OF AMERICA, INC.
