2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE

Check Switch

Remove the wiper deicer switch and measure the switch resistance.

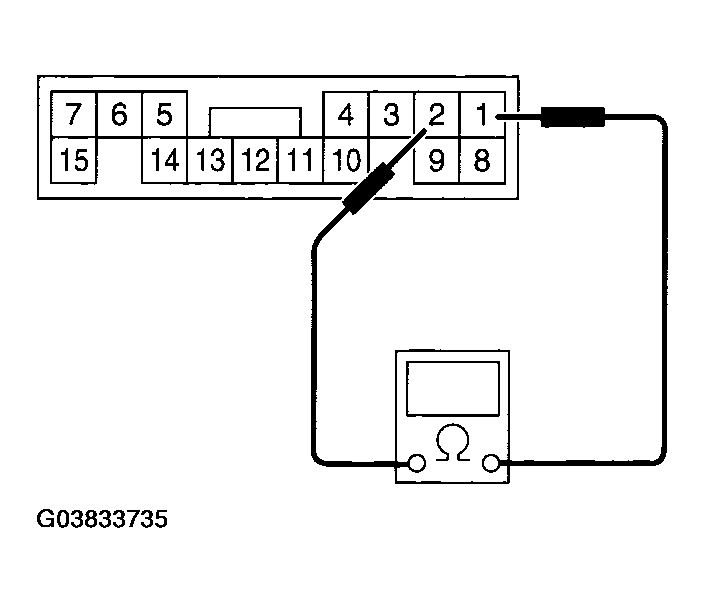

Fig 1: Removing Wiper Deicer Switch And Measuring Switch Resistance

Courtesy of SUBARU OF AMERICA, INC.

SWITCH POSITION TERMINAL SPECIFICATION

Switch position	Terminal No.	Standard
OFF	1 and 2	More than 1 MΩ
ON		Less than 1 Ω

Replace the wiper deicer switch if faulty.
