2005 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Outer Mirror: Replacement
- Face the mirror upward.

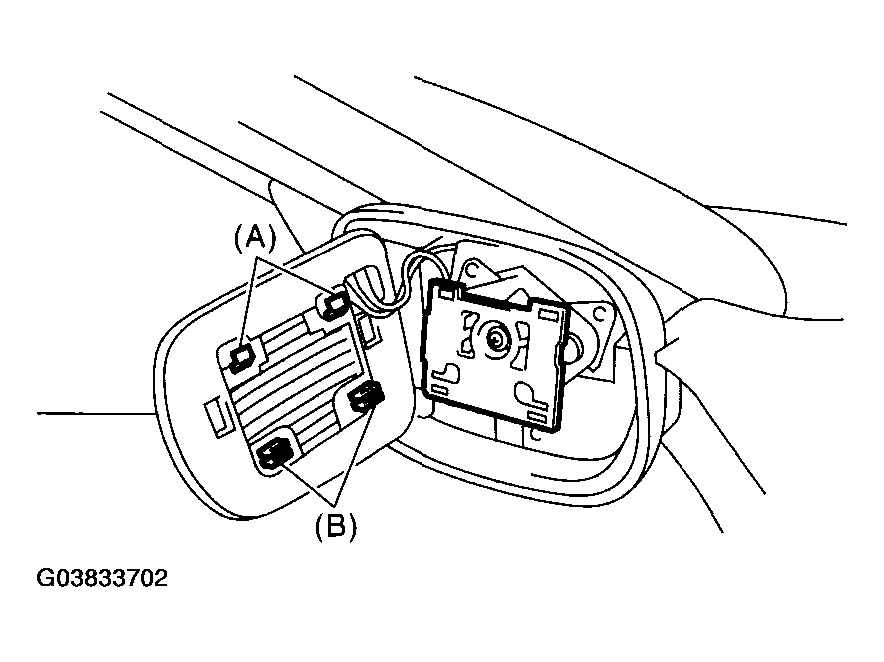

- Use a flat tip screwdriver to remove clip (A).
- Lift the lower mirror up to remove hooks (B).

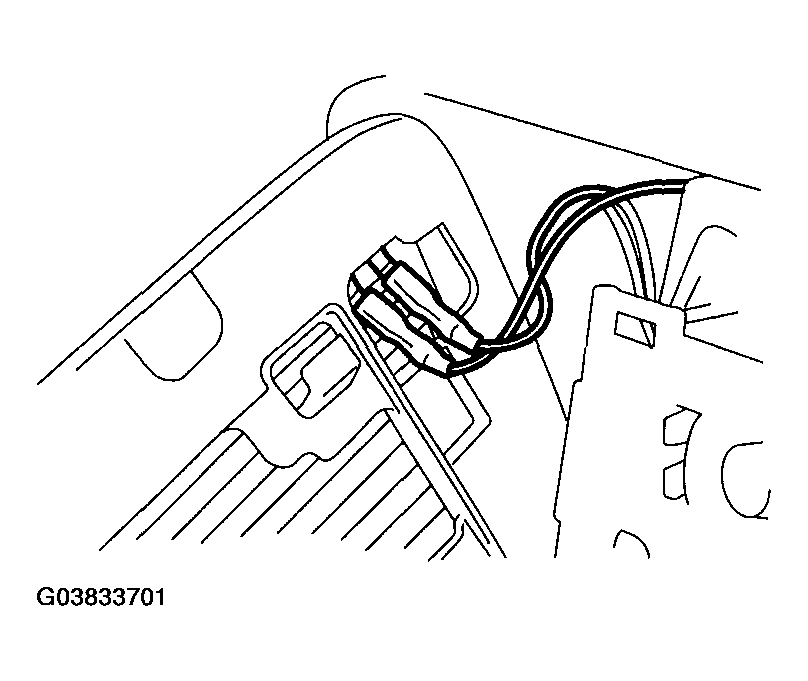

- Disconnect the mirror heater connector from the end of mirror. (Model with mirror heater)

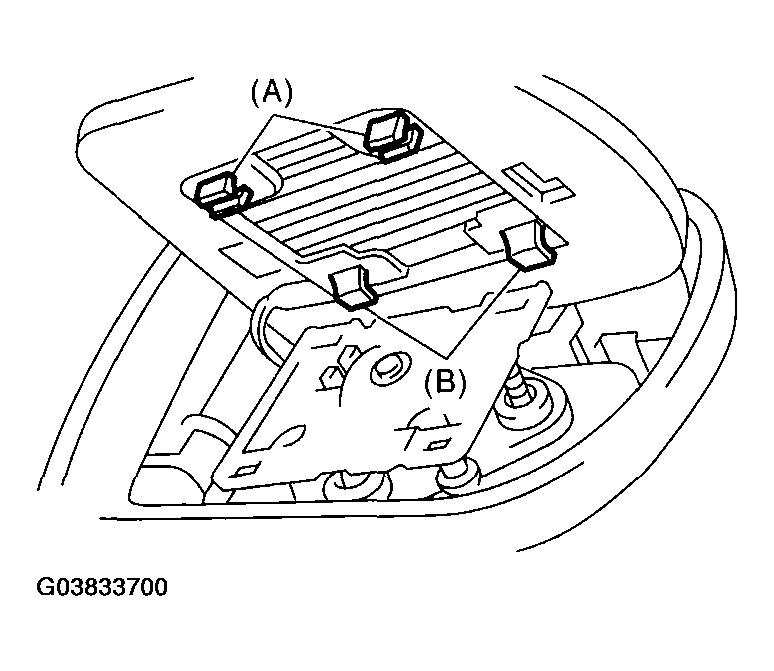

- Catch the hooks (A) and install clips (B).
CAUTION:
- When removing the mirror, be careful not to damage the back side of mirror with a flat tip screwdriver.
- When installing the mirror, insert the hook and clip securely.
