2005 Subaru Outback Limited, AutomaticFACTORY OEM SERVICE PROCEDURE
Compulsory Valve Operation Check Mode: Procedure

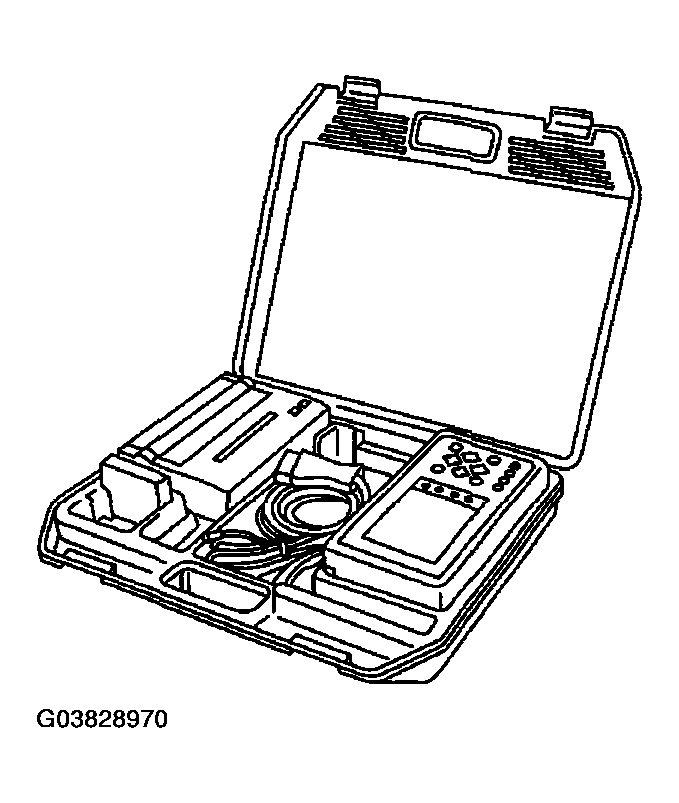

- Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Description. >
- Connect the diagnosis cable to Subaru Select Monitor.

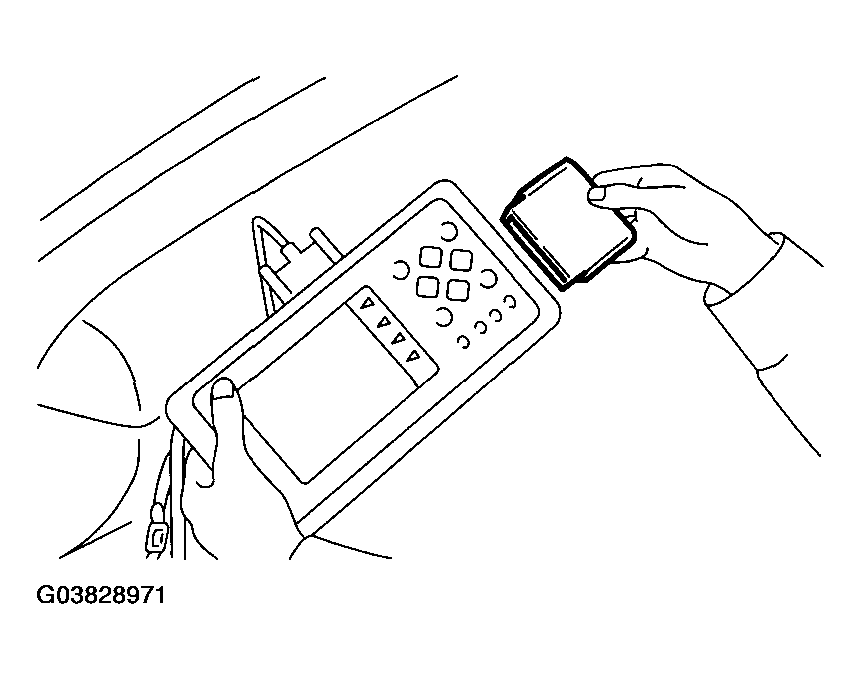

- Insert the cartridge to Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >

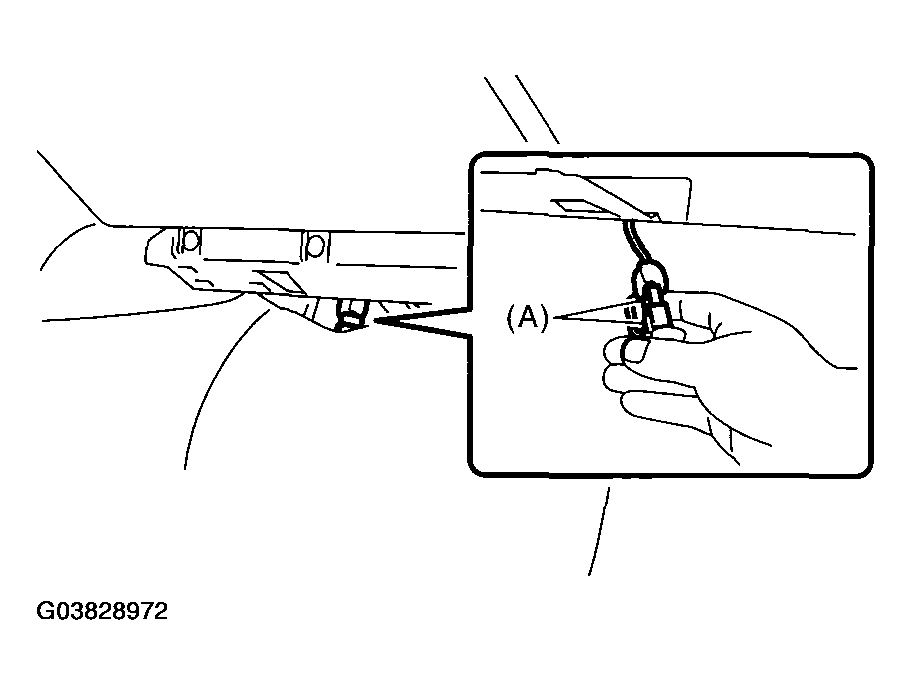

- Connect the test mode connector (A) located at the lower portion of glove box.

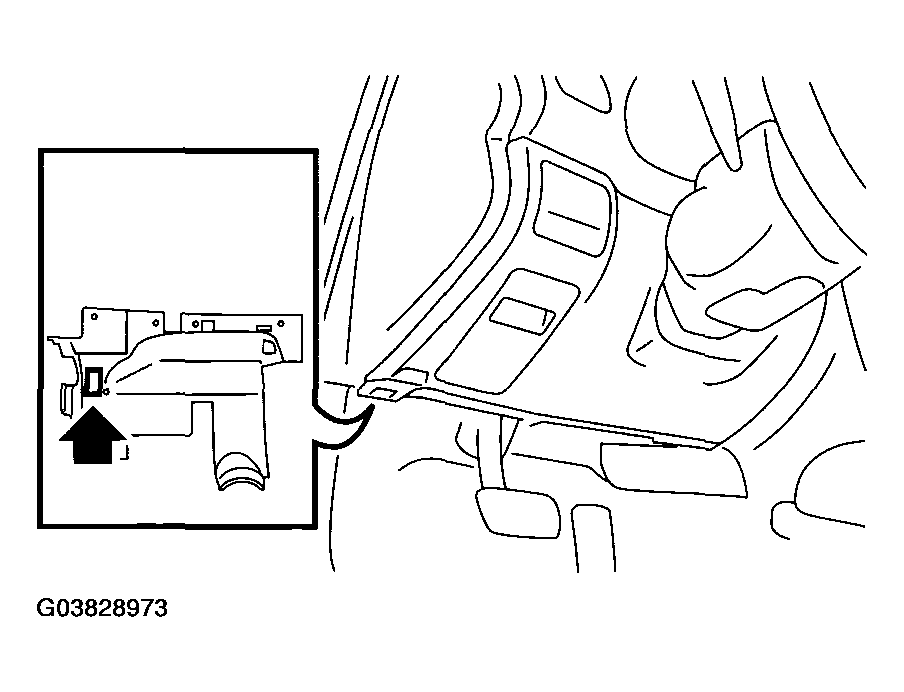

- Connect the Subaru Select Monitor to data link connector located in the lower portion of instrument panel (on the driver's side).
