2005 Subaru Outback Limited, AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Filler Pipe: Removal
WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.
- Release the fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
- Open the fuel filler flap lid, and remove the filler cap.

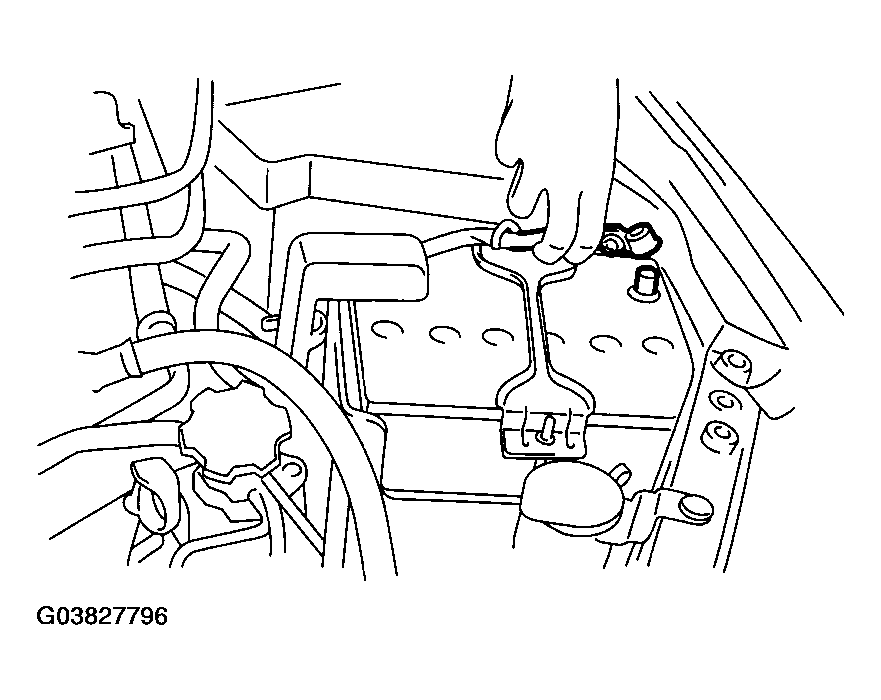

- Disconnect the ground cable from battery.

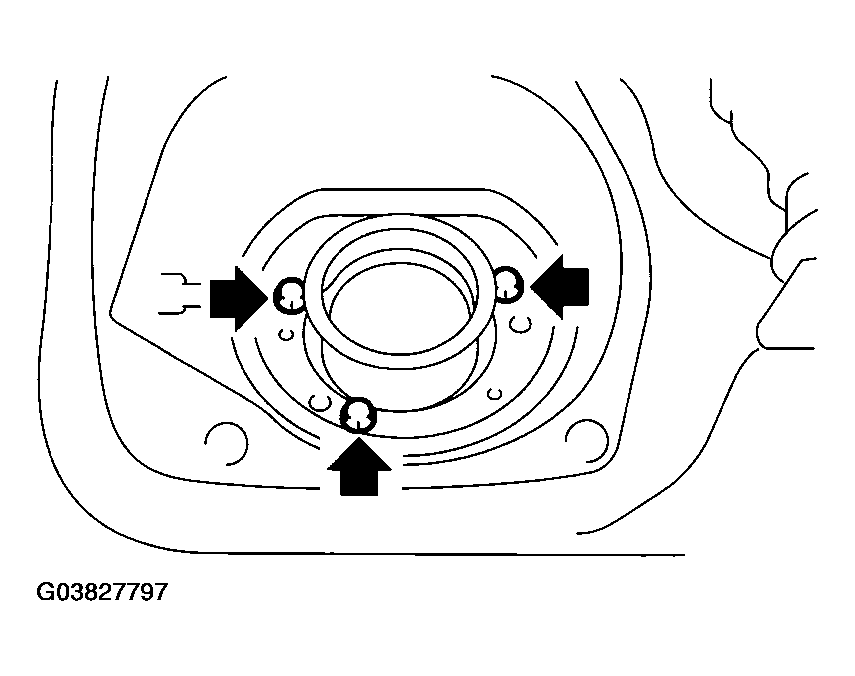

- Remove the screws which secure the packing.
- Lift-up the vehicle.

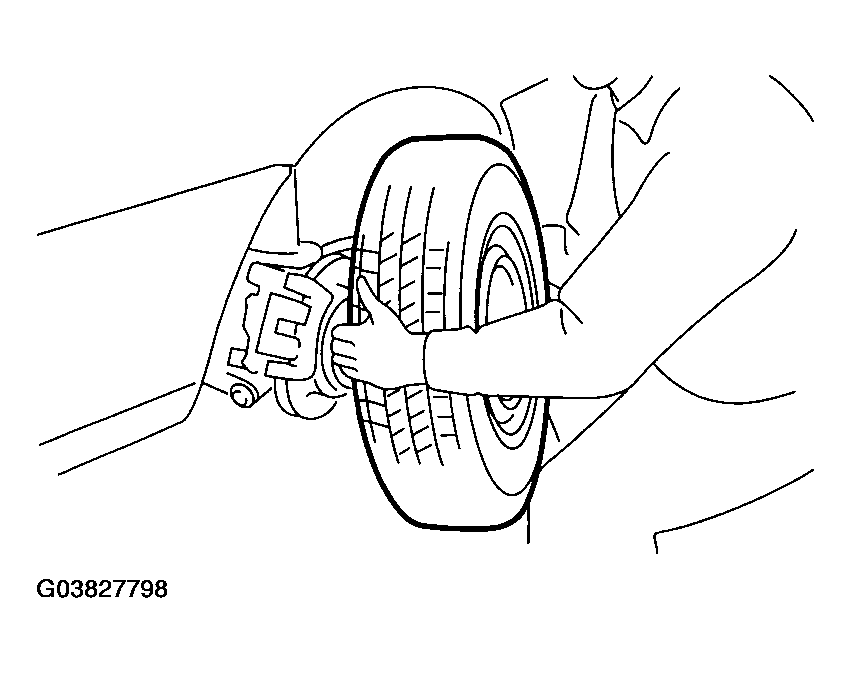

- Remove the rear wheel RH.
- Drain fuel from fuel tank. < Ref. to , DRAINING FUEL , PROCEDURE, Fuel. >
- Remove the mud guard. < Ref. to REMOVAL , Mud Guard. >
- Remove the rear sub frame. < Ref. to REMOVAL , Rear Sub Frame. >

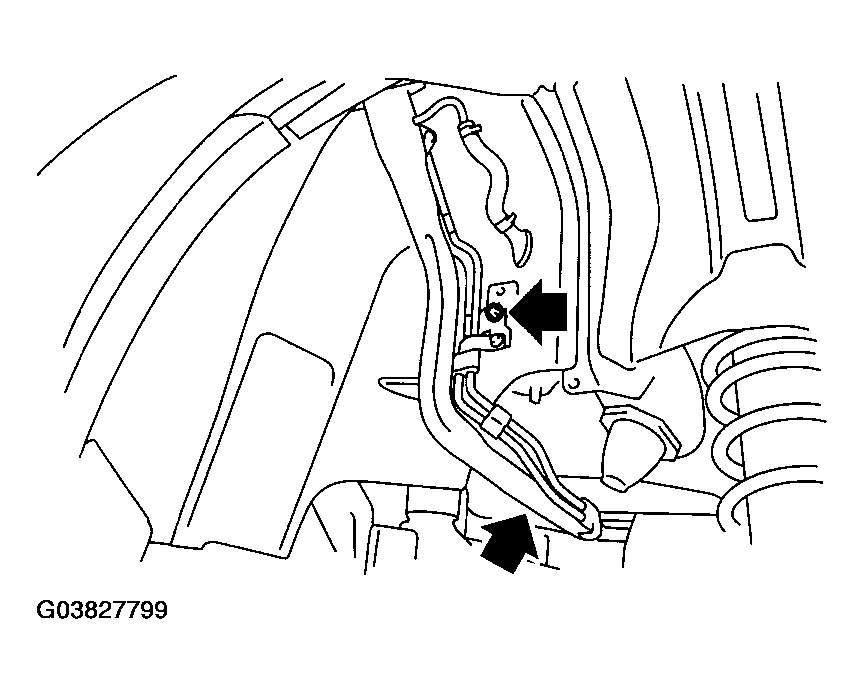

- Remove the bolts which hold the fuel filler pipe bracket on the body.

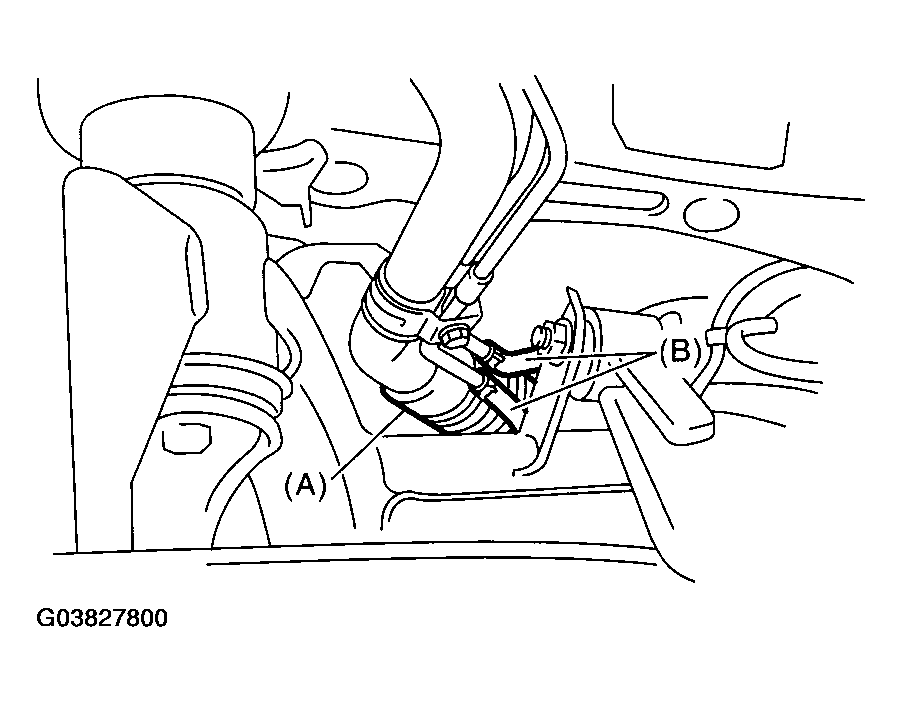

- Loosen the clamp and disconnect the fuel filler hose (A) and evaporation hose (B).
