2005 Subaru Outback Limited, AutomaticFACTORY OEM SERVICE PROCEDURE

Intake Manifold: Disassembly

  1. Disconnect the engine ground terminal from intake manifold.
    • LH side

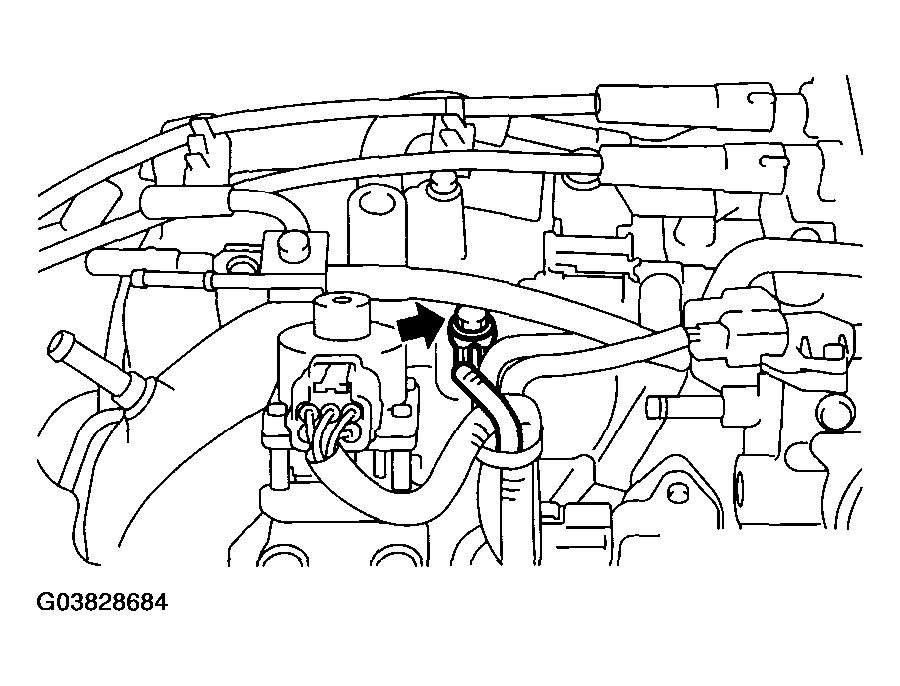

      Fig 1: Disconnecting Engine Ground Terminal From Intake Manifold (LH Side)
      G03828684Courtesy of SUBARU OF AMERICA, INC.
    • RH side

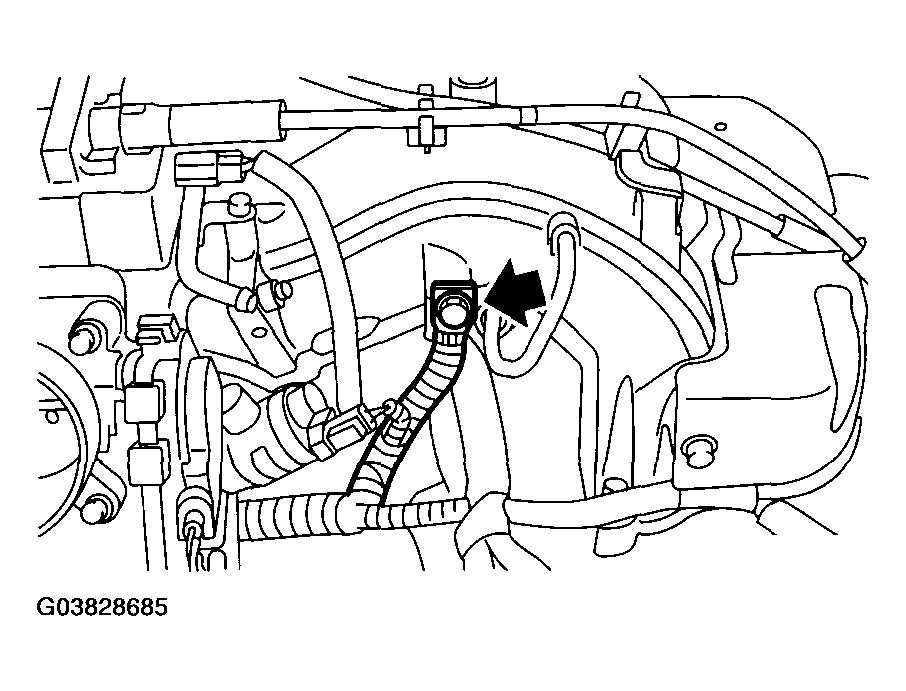

    Fig 2: Disconnecting Engine Ground Terminal From Intake Manifold (RH Side)
    G03828685Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the ignition coil and ignitor assembly. < Ref. to REMOVAL , Ignition Coil and Ignitor Assembly. >
  3. Remove the throttle body. < Ref. to , REMOVAL , Throttle Body. >
  4. Remove the EGR valve. < Ref. to , REMOVAL , EGR Valve. >
  5. Remove the PCV pipe.

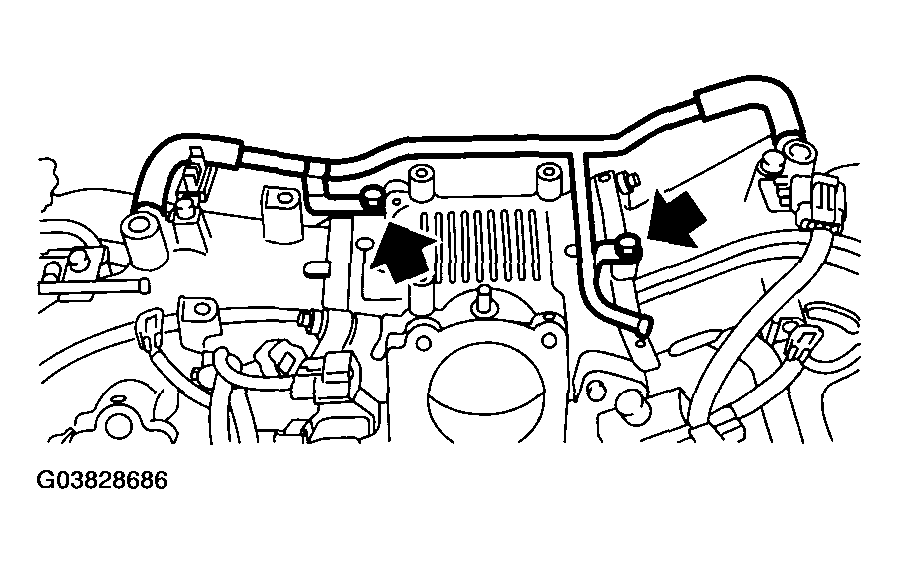

    Fig 3: Removing PCV Pipe
    G03828686Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the fuel pipe protector LH.

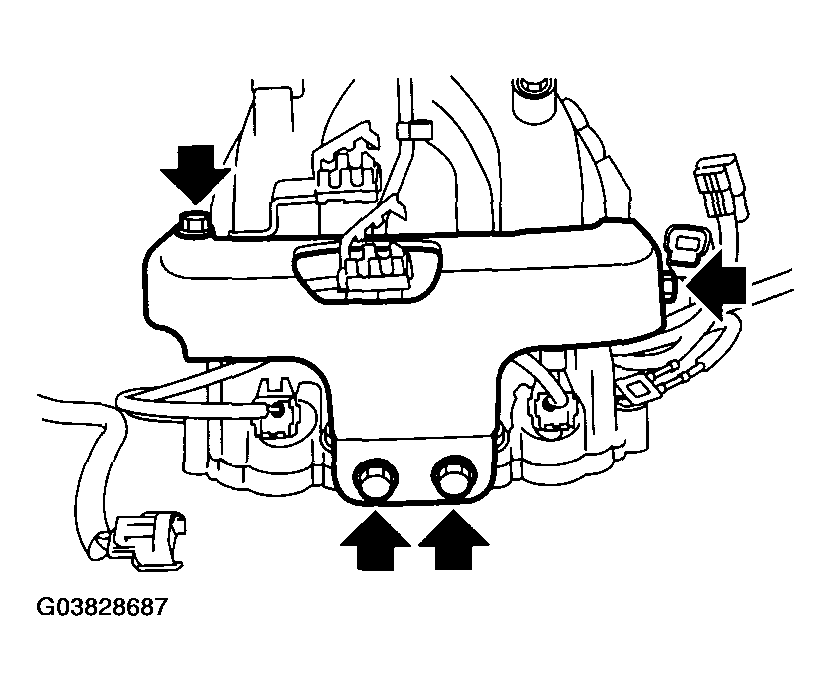

    Fig 4: Removing Fuel Pipe Protector LH
    G03828687Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the fuel pipe protector RH.

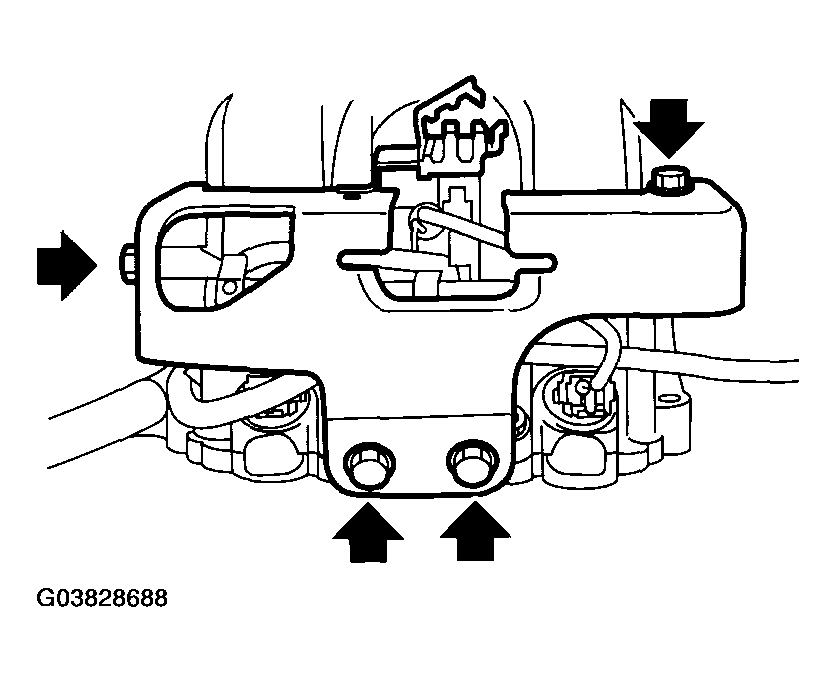

    Fig 5: Removing Fuel Pipe Protector RH
    G03828688Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the pressure regulator vacuum hose from intake manifold.

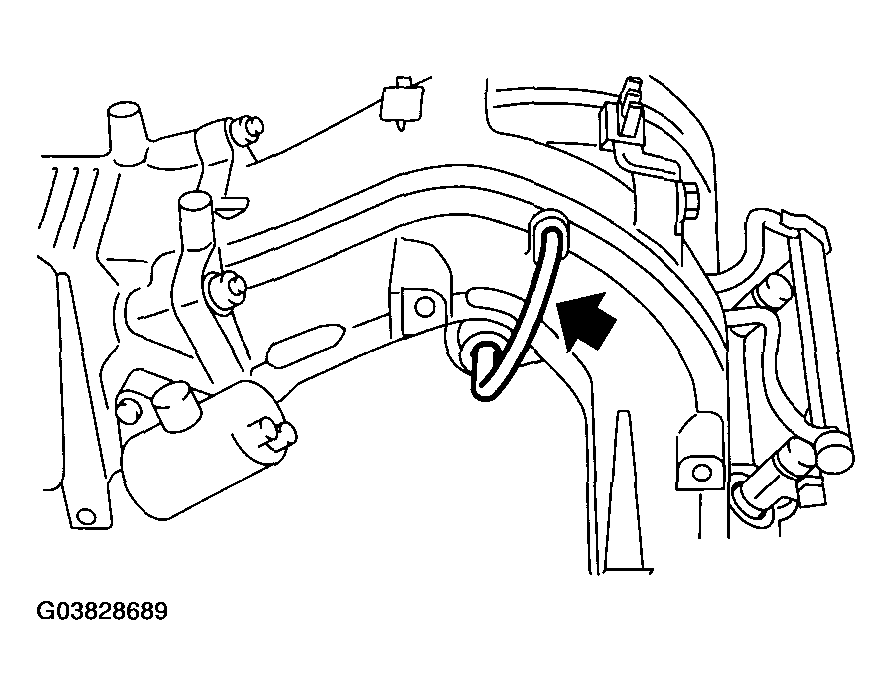

    Fig 6: Disconnecting Pressure Regulator Vacuum Hose From Intake Manifold
    G03828689Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the connectors (A) from fuel injector.
  10. Remove the clip (B) which holds engine harness to injector pipe.

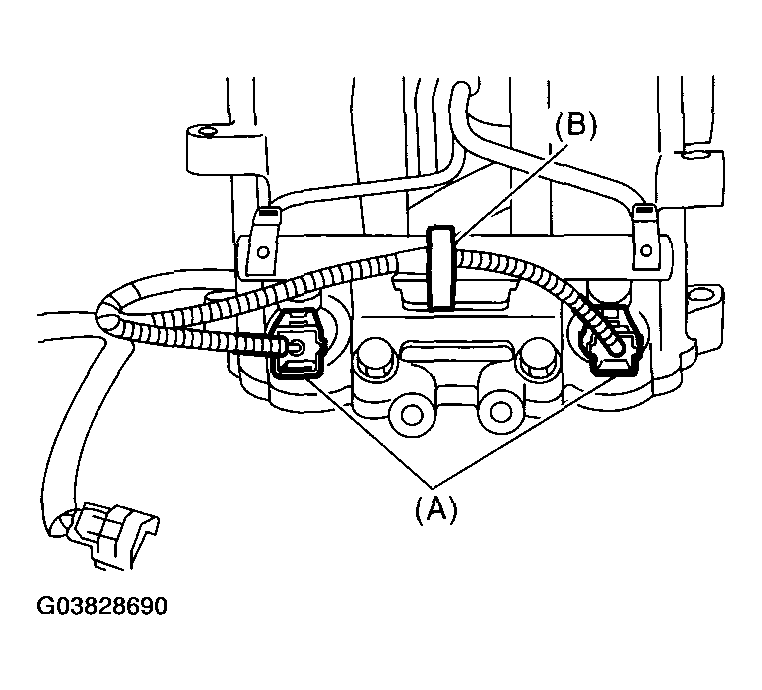

    Fig 7: Disconnecting Connectors From Fuel Injector
    G03828690Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the tumble generator valve actuator. < Ref. to , REMOVAL , Tumble Generator Valve Actuator. >
  12. Remove the purge control solenoid valve. < Ref. to REMOVAL , Purge Control Solenoid Valve. >
  13. Remove the harness band clips which install the engine harness.

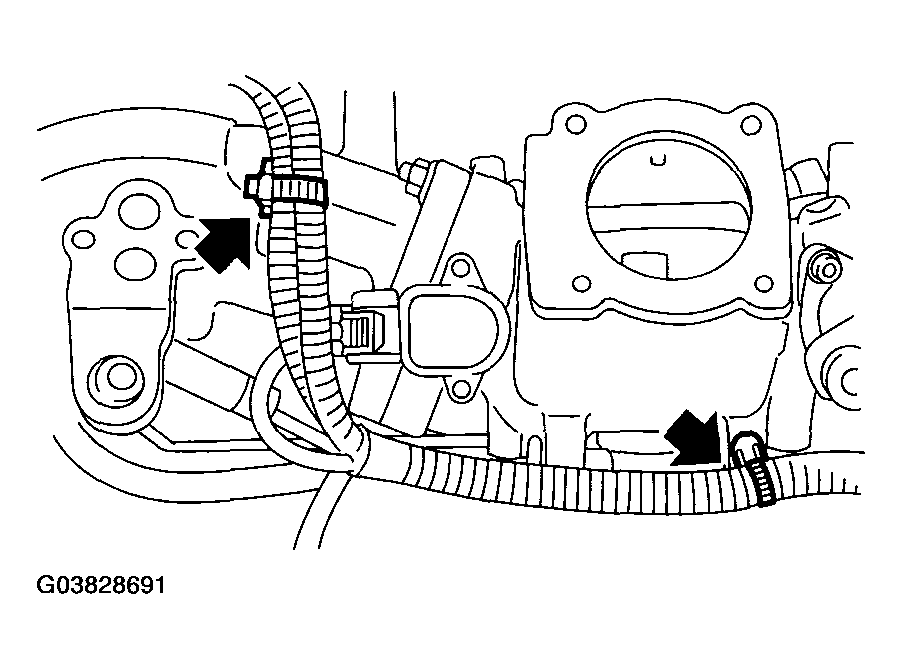

    Fig 8: Removing Harness Band Clips (1 Of 2)
    G03828691Courtesy of SUBARU OF AMERICA, INC.
