2005 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE
At Shift Control
- Turn the ignition switch to ON.
- Check that the select lever can not be moved from "P" range when brake pedal is not depressed.
- Check that the select lever can be moved from "P" range when brake pedal is depressed.
- Select the select lever to except "P" range.
- Check that the ignition key can not be removed from ignition switch when ignition switch is turned to OFF.

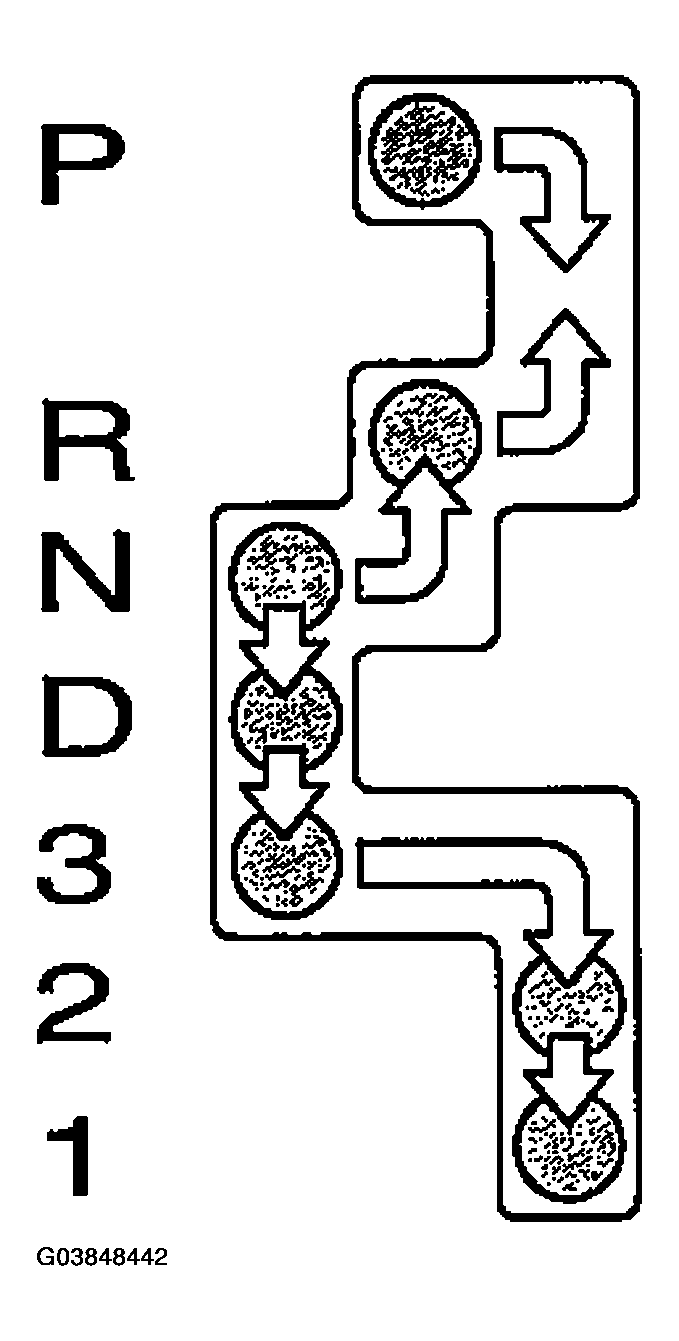

- Set the AT select lever to each gear position while checking that the demanded gear position is correctly attained.
SELECTOR AND GEAR POSITIONS
| Selector Position | Gear Position | |||
|---|---|---|---|---|
| 1st | 2nd | 3rd | 4th | |
| D | OK | OK | OK | OK |
| 3 | OK | OK | OK | - |
| 2 | - | OK | - | - |
| 1 | OK | - | - | - |
