2005 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE

SUBARU Select Monitor

Warm up the engine.
Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL . >

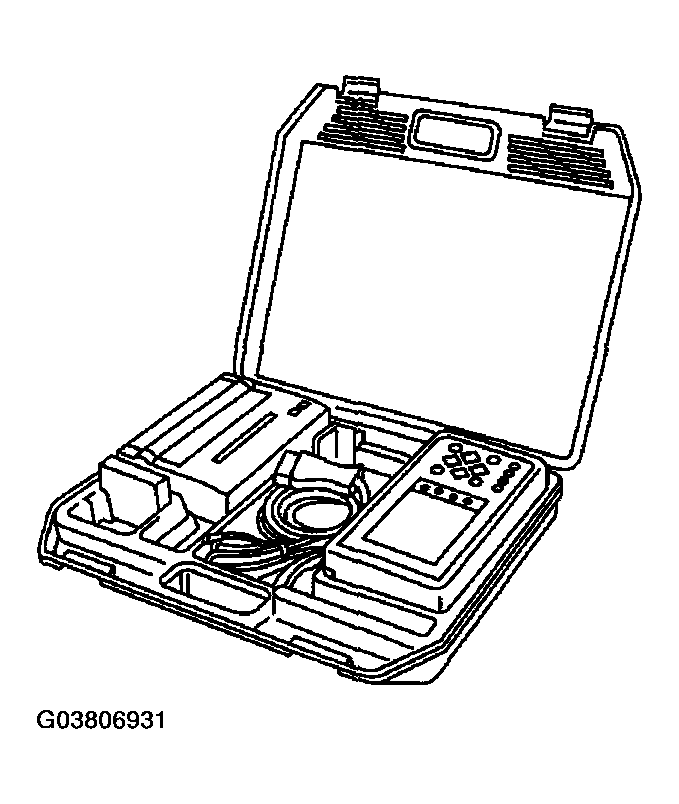

Fig 1: Identifying Subaru Select Monitor Kit
Courtesy of SUBARU OF AMERICA, INC.
Connect the diagnosis cable to Subaru Select Monitor.
Insert the cartridge into Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >

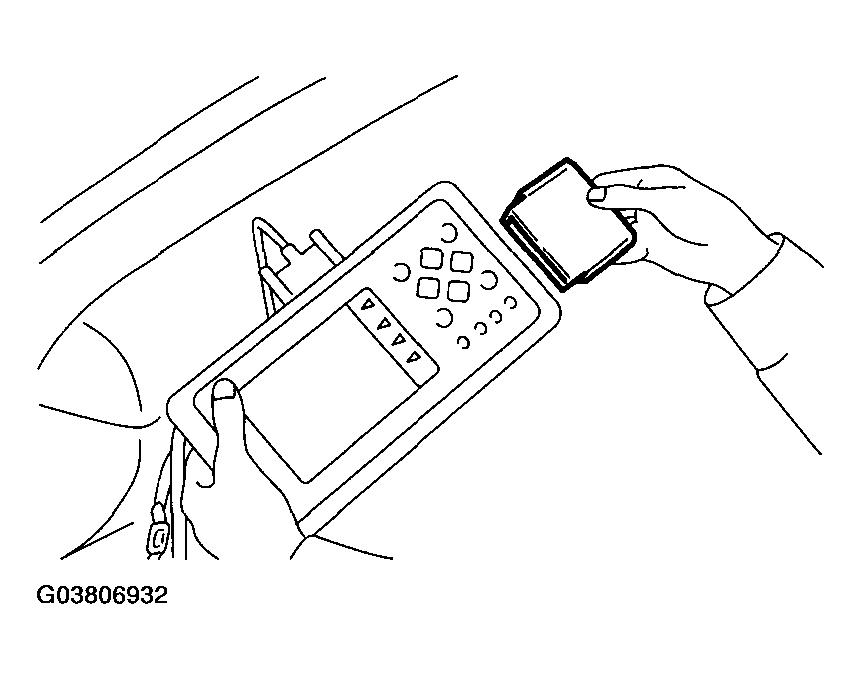

Fig 2: Inserting Cartridge Into Subaru Select Monitor
Courtesy of SUBARU OF AMERICA, INC.
Connect the test mode connector (A) at the lower portion of instrument panel (on the driver's side).

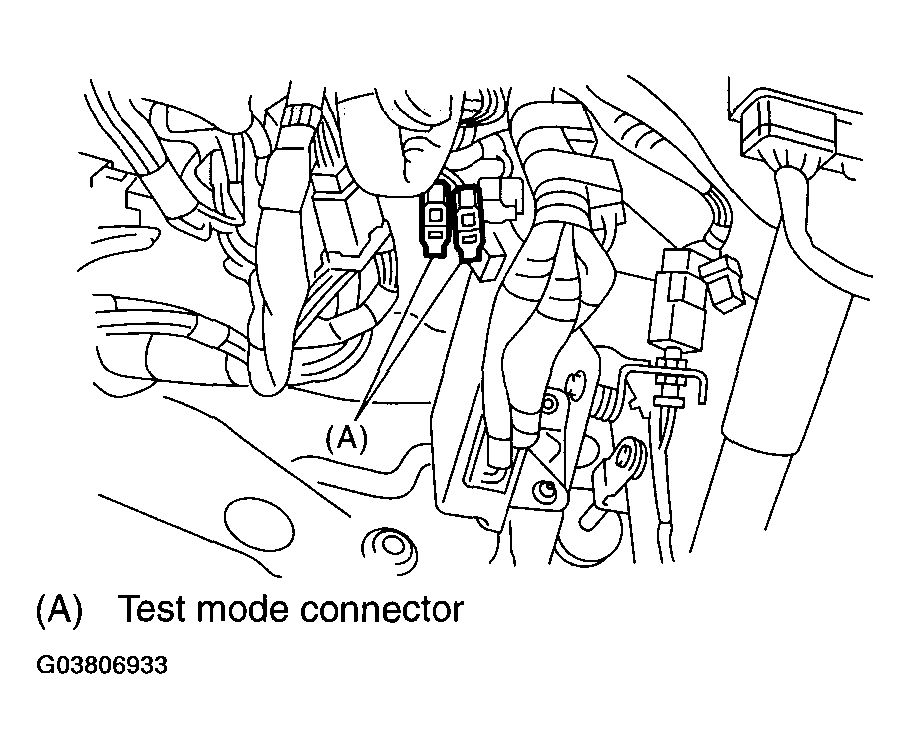

Fig 3: Connecting Test Mode Connector At Lower Portion Of Instrument Panel (On Driver's Side)
Courtesy of SUBARU OF AMERICA, INC.
Connect the Subaru Select Monitor to data link connector located in the lower portion of the instrument panel (on the driver's side).

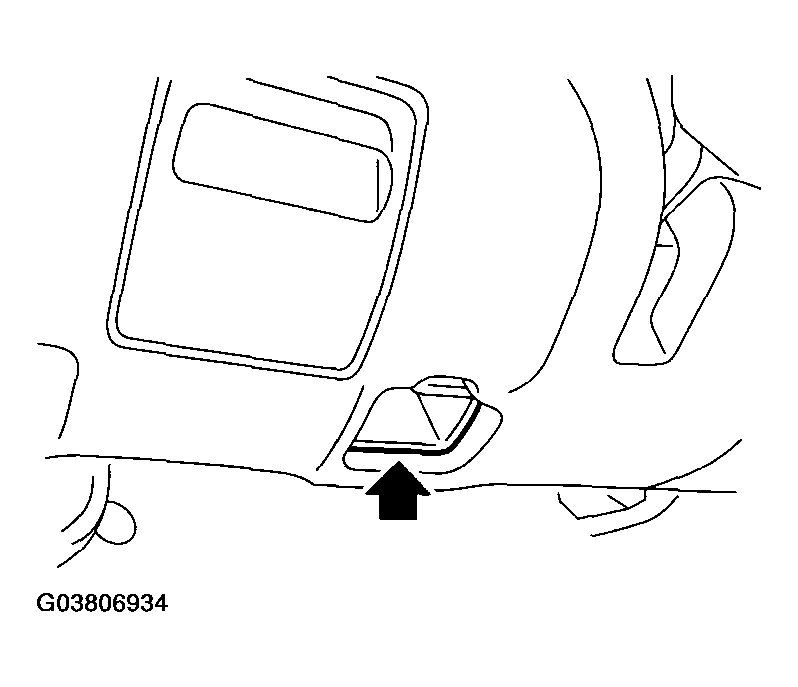

Fig 4: Identifying Data Link Connector Location In Lower Portion Of Instrument Panel (On Driver's Side)
Courtesy of SUBARU OF AMERICA, INC.
