DTC P0607 Control Module Performance
DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION < Ref. to DTC P0605 INTERNAL CONTROL MODULE READ ONLY MEMORY (ROM) ERROR , Diagnostic Trouble Code (DTC) Detecting Criteria. > < Ref. to DTC P0607 CONTROL MODULE PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. >
TROUBLE SYMPTOM:
- Erroneous idling
- Poor driving performance

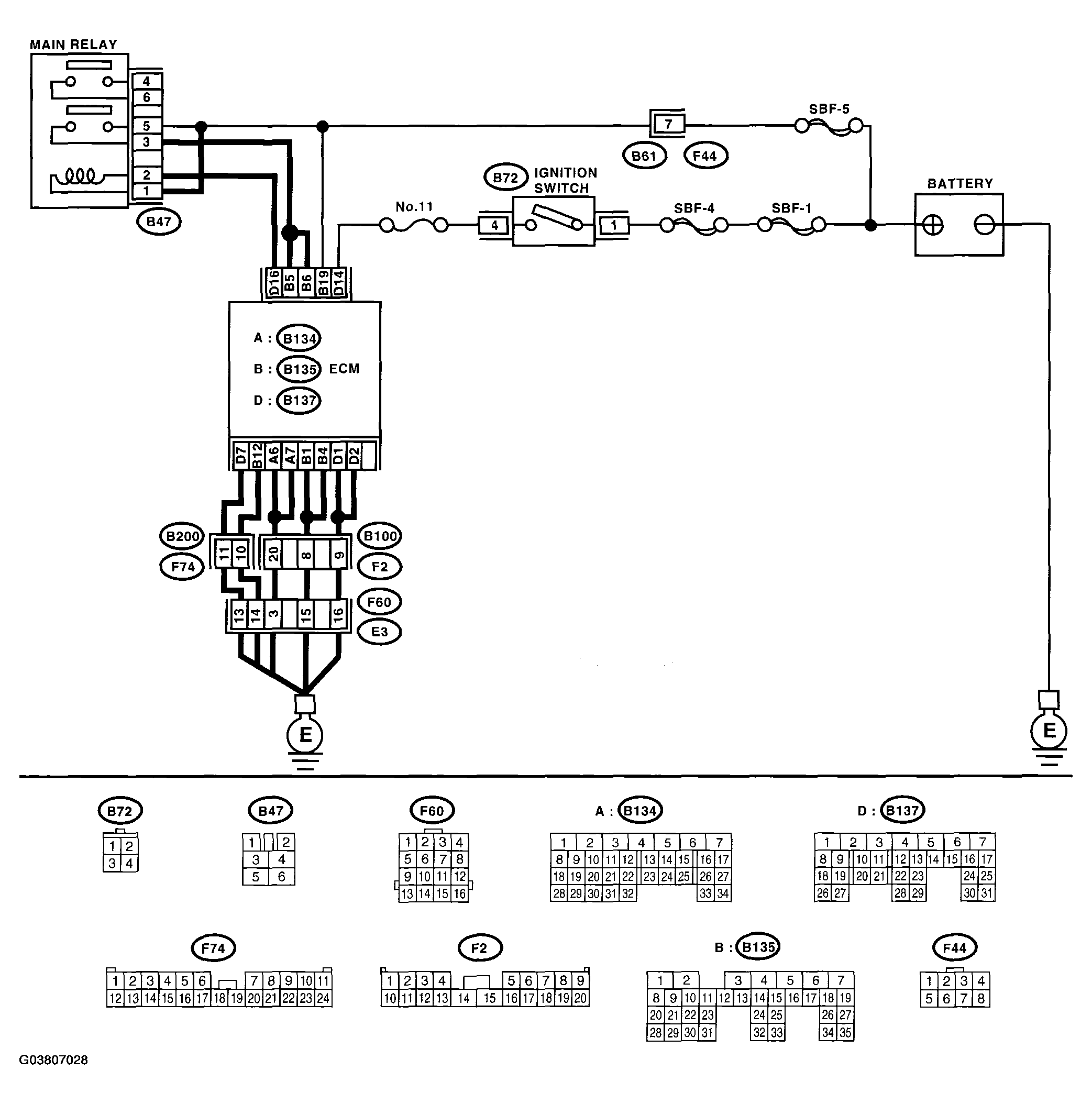

WIRING DIAGRAM:
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK INPUT VOLTAGE OF ECM.
Connector & terminal (B135) No. 5 (+)- Chassis ground (-): (B135) No. 6 (+)- Chassis ground (-): |
Is the voltage 10-13 V? | Go to step 2. | Repair the open circuit or ground short of power supply circuit. |
2 CHECK INPUT VOLTAGE OF ECM.
Connector & terminal (B135) No. 5 (+)-- Chassis ground (-): (B135) No. 6 (+)- Chassis ground (-): |
Is the voltage 13-15 V? | Go to step 3. | Repair the open circuit or ground short of power supply circuit. |
| 3 CHECK GROUND HARNESS OF ECM. Measure the voltage between ECM connector and ground. Connector & terminal (B137) No. 1 (+)- Chassis ground (-): (B137) No. 2 (+)- Chassis ground (-): |
Is the voltage less than 1 V? | Repair poor contact of ECM connector. If poor contact occur, replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . > | Retighten the engine ground terminal. |
