2005 Subaru Forester X, AutomaticFACTORY OEM SERVICE PROCEDURE

Check Power Supply And Ground Line Of Engine Control Module (ECM)

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to , PROCEDURE , Inspection Mode. >.

WIRING DIAGRAM:

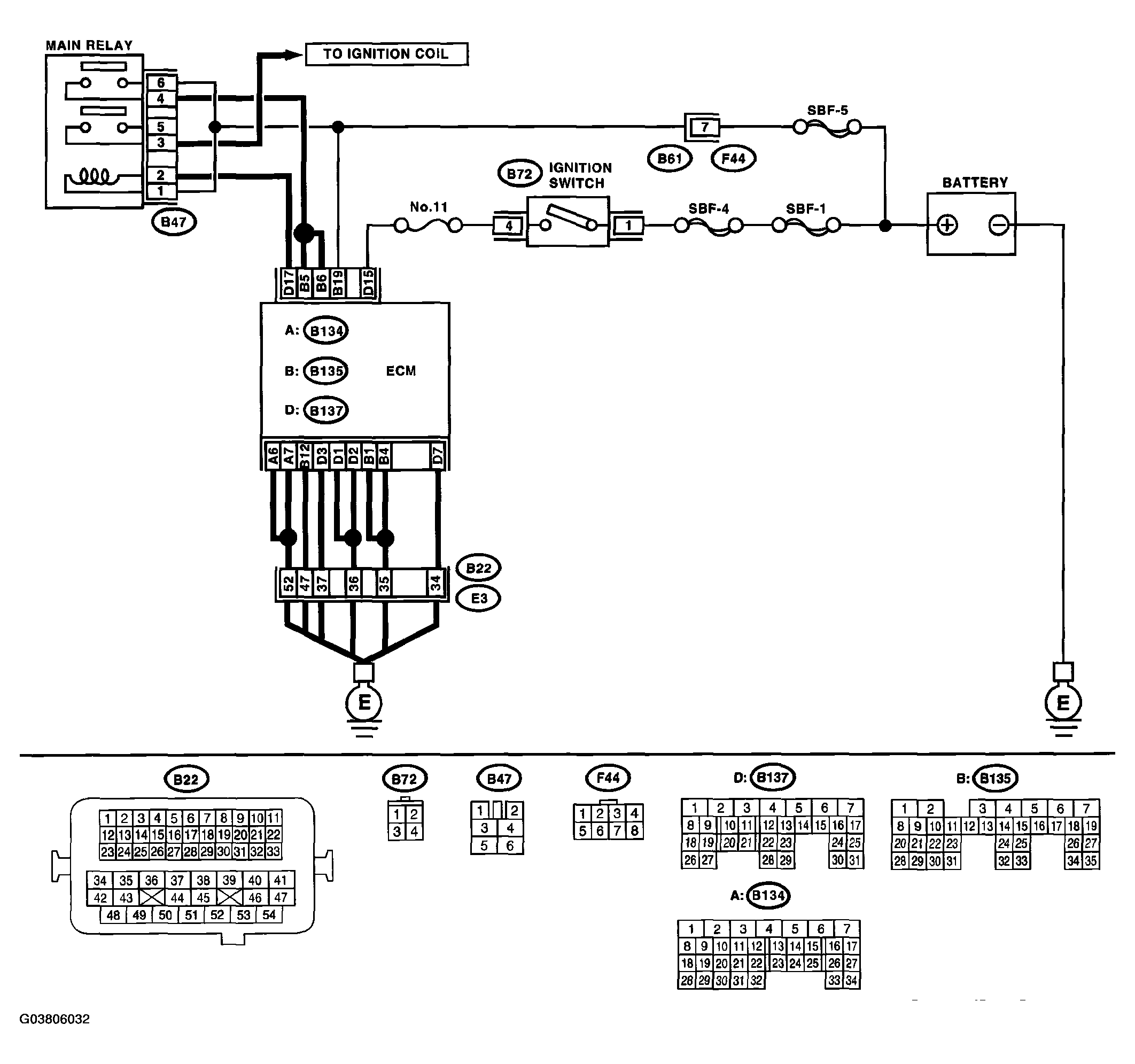

Fig 1: Wiring Diagram - Control Module Power Supply And Ground Line
G03806032Courtesy of SUBARU OF AMERICA, INC.
CONTROL MODULE POWER SUPPLY AND GROUND LINE DIAGNOSTIC STEPS

Step Check Yes No
1 CHECK MAIN RELAY.
  1. Turn the ignition switch to OFF.
  2. Remove the main relay.
  3. Connect the battery to main relay terminals No. 1 and No. 2.
  4. Measure the resistance between main relay terminals.

Terminals
No. 3 - No. 5:
No. 4 - No. 6: 		 Is the measured value less than 10 Ω? Go to step 2  . Replace the main relay.
2 CHECK GROUND CIRCUIT OF ECM.
  1. Disconnect the connector from ECM.
  2. Measure the resistance of harness between ECM and chassis ground.

Connector & terminal
(B134) No. 6 - Chassis ground:
(B134) No. 7-Chassis ground:
(B135) No. 12 - Chassis ground:
(B137) No. 1 - Chassis ground:
(B137) No. 2 - Chassis ground:
(B135) No. 1 - Chassis ground:
(B135) No. 4 - Chassis ground:
(B137) No. 7- Chassis ground: 		 Is the measured value less than 5 Ω? Go to step 3  . Repair the open circuit in harness between ECM connector and engine grounding terminal.
3 CHECK INPUT VOLTAGE OF ECM.
Measure the voltage between ECM connector and chassis ground.
Connector & terminal
(B135) No. 19 (+) - Chassis ground (-):
(B137) No. 15 (+) - Chassis ground (-): 		 Is the measured value more than 10 V? Go to step 4  . Repair the open or ground short circuit of power supply circuit.
4 CHECK INPUT VOLTAGE OF MAIN RELAY.
Measure the voltage between main relay connector and chassis ground.
Connector & terminal
(B47) No. 1 (+) - Chassis ground (-):
(B47) No. 5 (+) - Chassis ground (-):
(B47) No. 6 (+) - Chassis ground (-): 		 Is the measured value more than 10 V? Go to step 5  . Repair the open or ground short circuit in harness of power supply circuit.
5 CHECK INPUT VOLTAGE OF ECM.
  1. Connect the main relay connector.
  2. Turn the ignition switch to ON.
  3. Measure the voltage between ECM connector and chassis ground.

Connector & terminal
(B135) No. 5 (+) - Chassis ground (-):
(B135) No. 6 (+) - Chassis ground (-):
(B137) No. 17 (+) - Chassis ground (-): 		 Is the measured value more than 10 V? Check the ignition control system. < Ref. to , IGNITION CONTROL SYSTEM , Diagnostics for Engine Starting Failure. > Repair the open or ground short circuit in harness between ECM connector and main relay connector.
