Release fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , OPERATION, Fuel. >
Open fuel flap lid, and remove fuel filler cap.

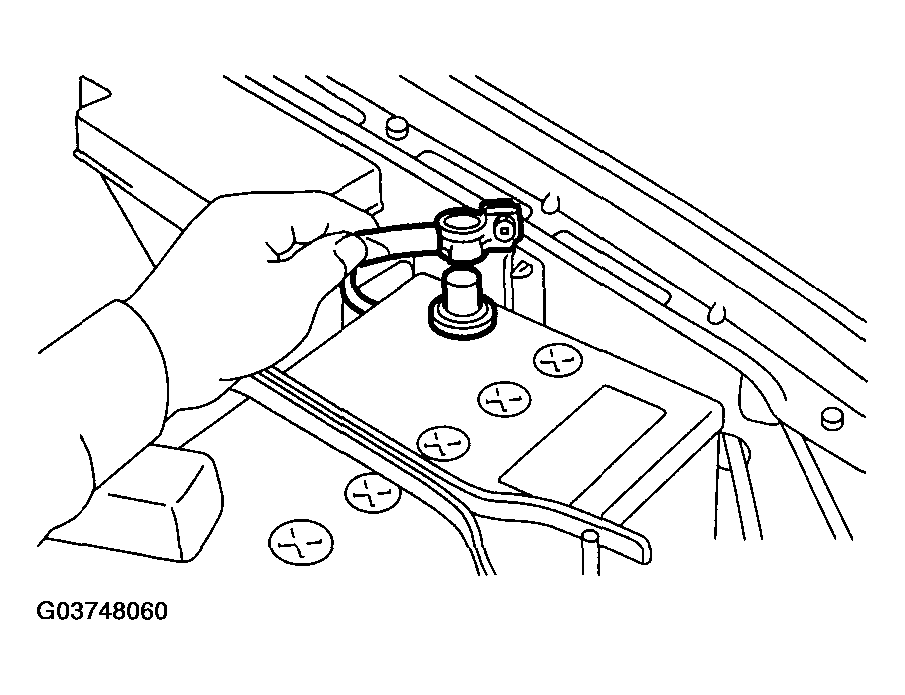

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove resonator chamber.
< Ref. to REMOVAL , Resonator Chamber. >
Remove spark plug cords from spark plugs (#1 and #3 cylinders).

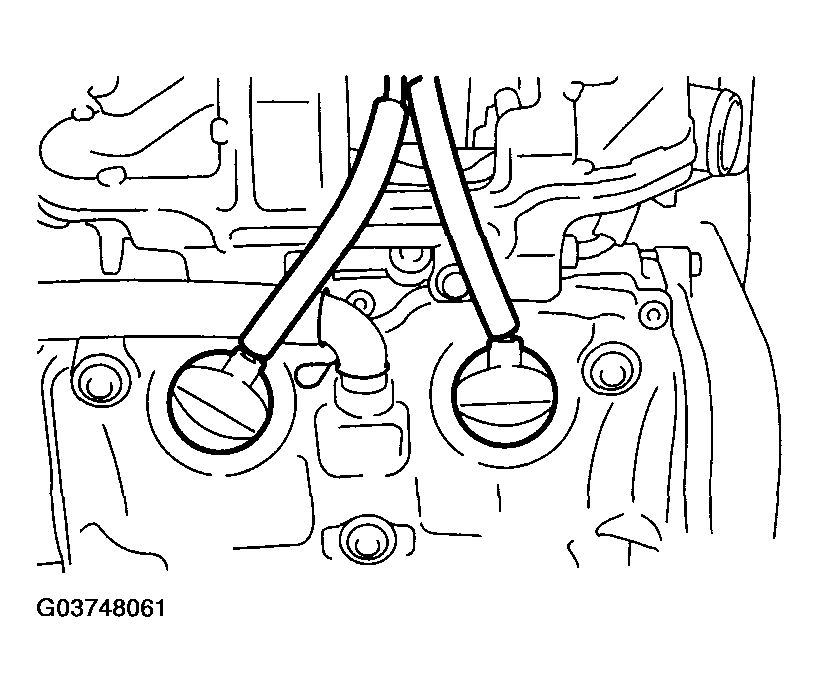

Fig 2: Removing Spark Plug Cords From Spark Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove power steering pump and tank from brackets.
1. Remove front V-belt.
  < Ref. to REMOVAL , V-belt. >

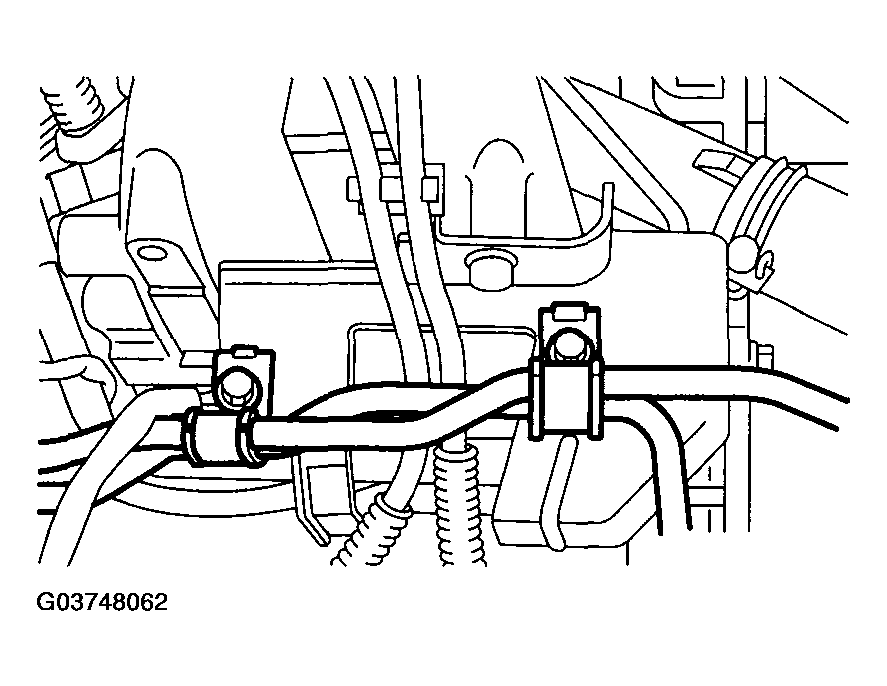

2. Remove bolts which hold power steering pipes onto intake manifold protector.

  Fig 3: Removing Bolts Holding Power Steering Pipes Onto Intake Manifold Protector
  Courtesy of SUBARU OF AMERICA, INC.

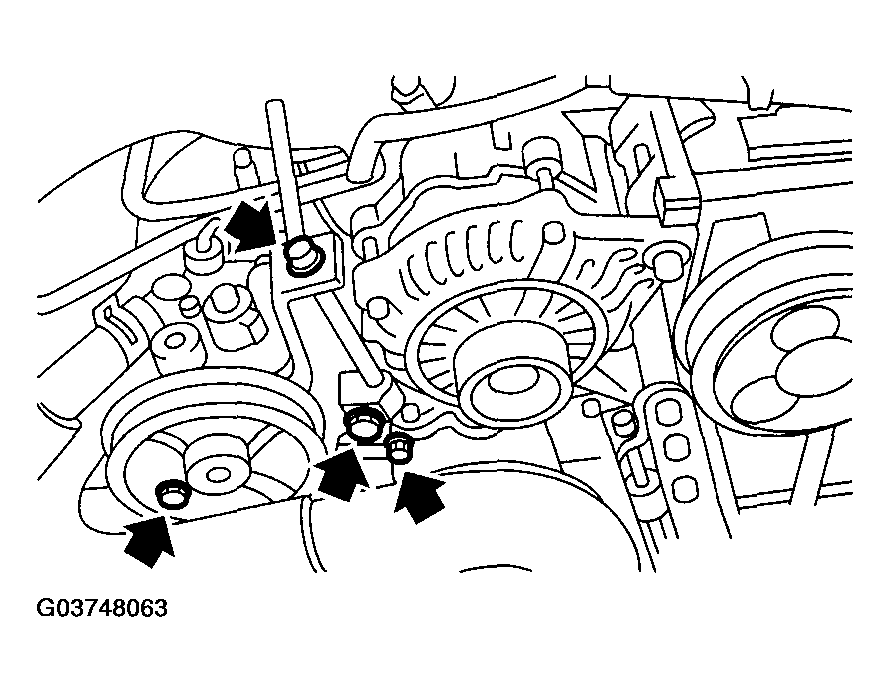

3. Remove bolts which install power steering pump to bracket.

  Fig 4: Removing Power Steering Pump To Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect connector from power steering pump switch.

  Fig 5: Disconnecting Connector From Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.

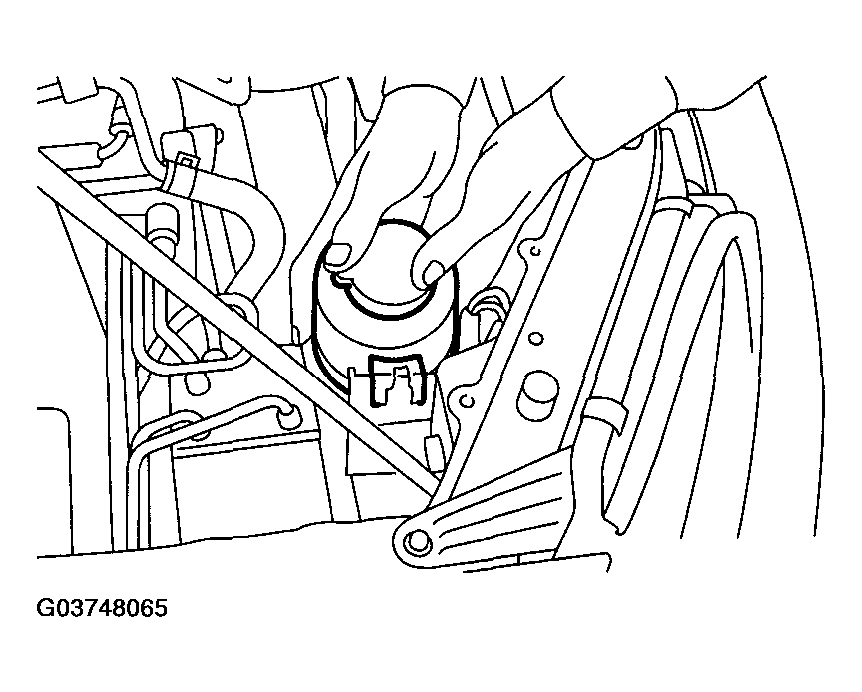

5. Remove power steering tank from the bracket by pulling it upwards.

  Fig 6: Removing Power Steering Tank From Bracket
  Courtesy of SUBARU OF AMERICA, INC.

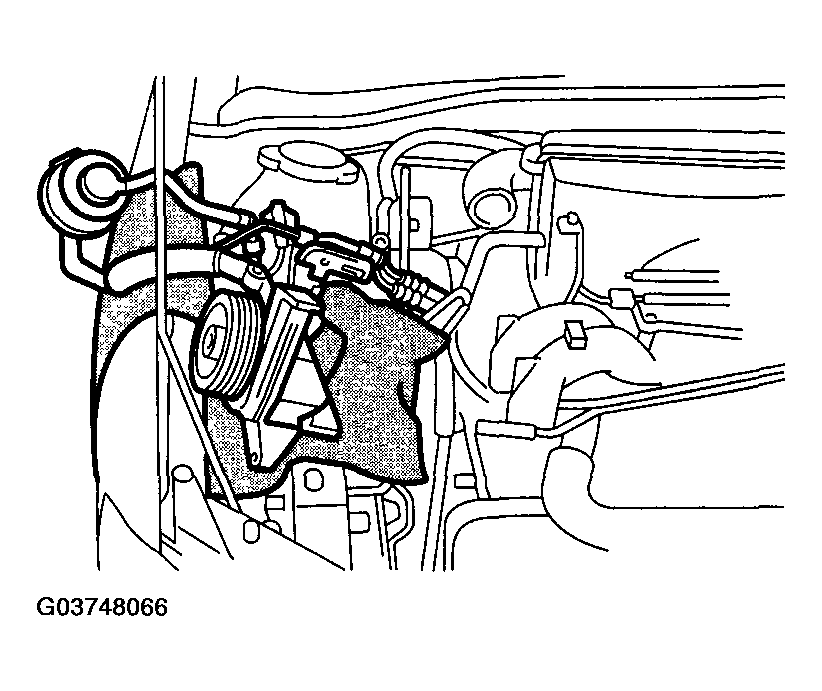

6. Place power steering pump and tank on the right side wheel apron.

  Fig 7: Placing Power Steering Pump And Tank On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.
Remove fuel pipe protector RH.

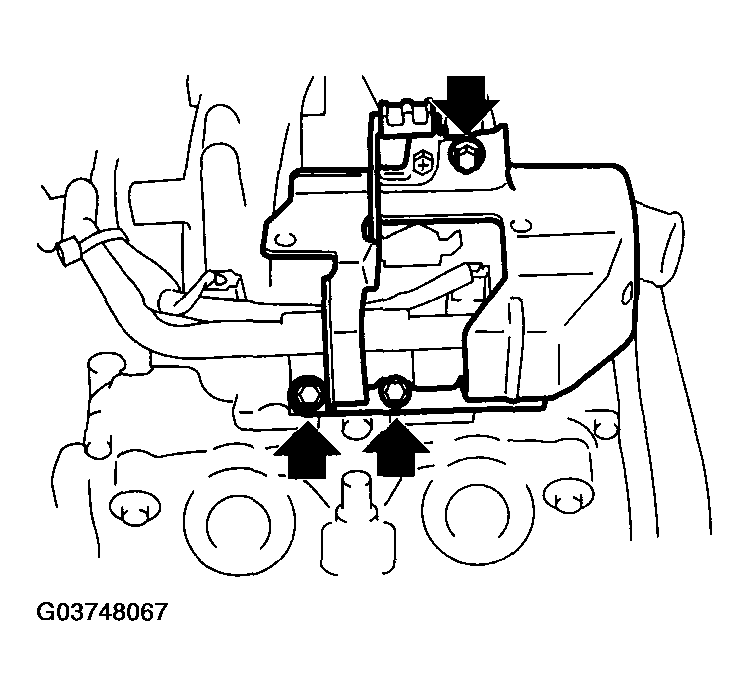

Fig 8: Removing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.

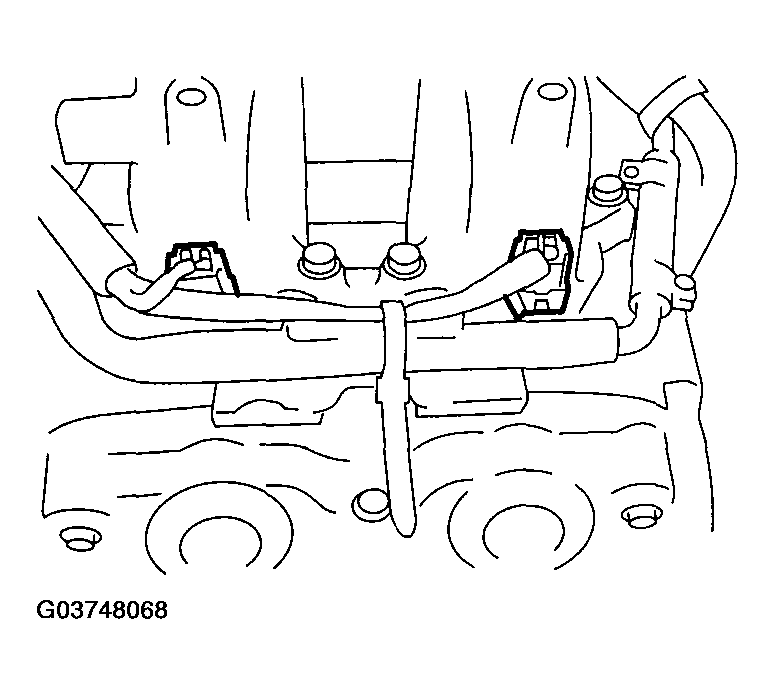

Disconnect connector from fuel injector.

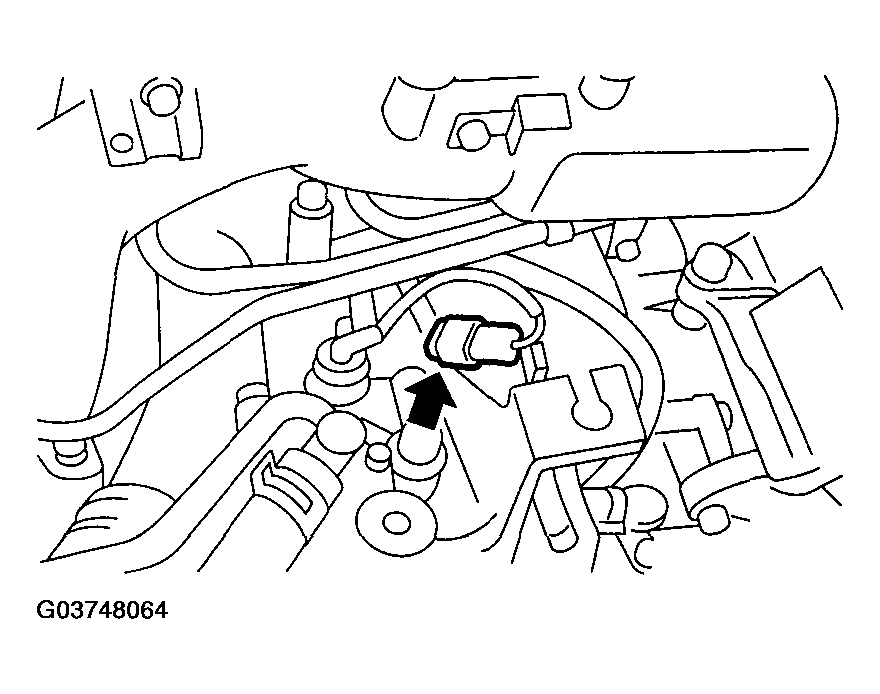

Fig 9: Disconnecting Connector From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which hold injector pipe to intake manifold.

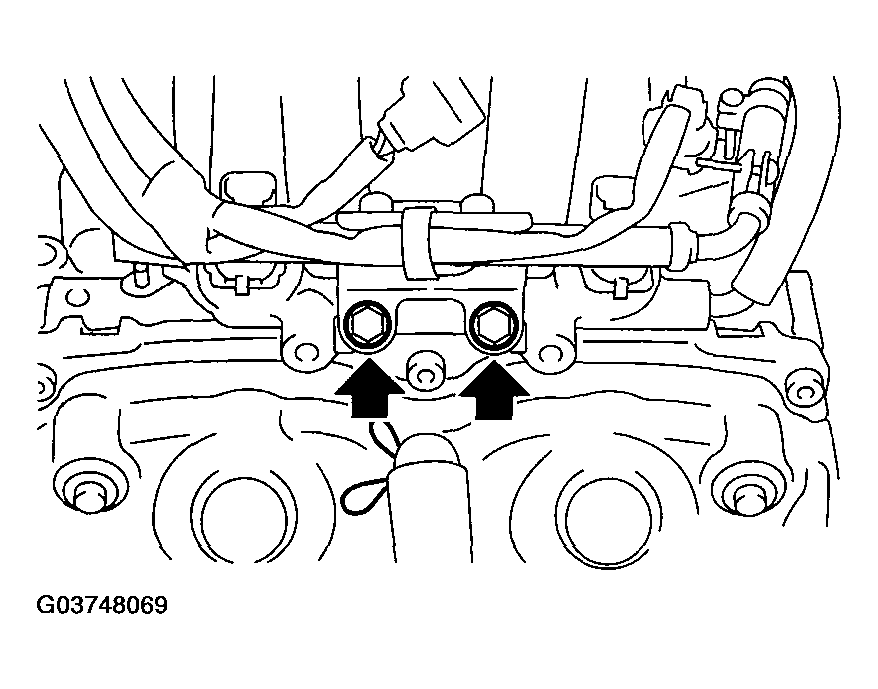

Fig 10: Removing Bolts Holding Injector Pipe To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which install injector pipe to intake manifold.

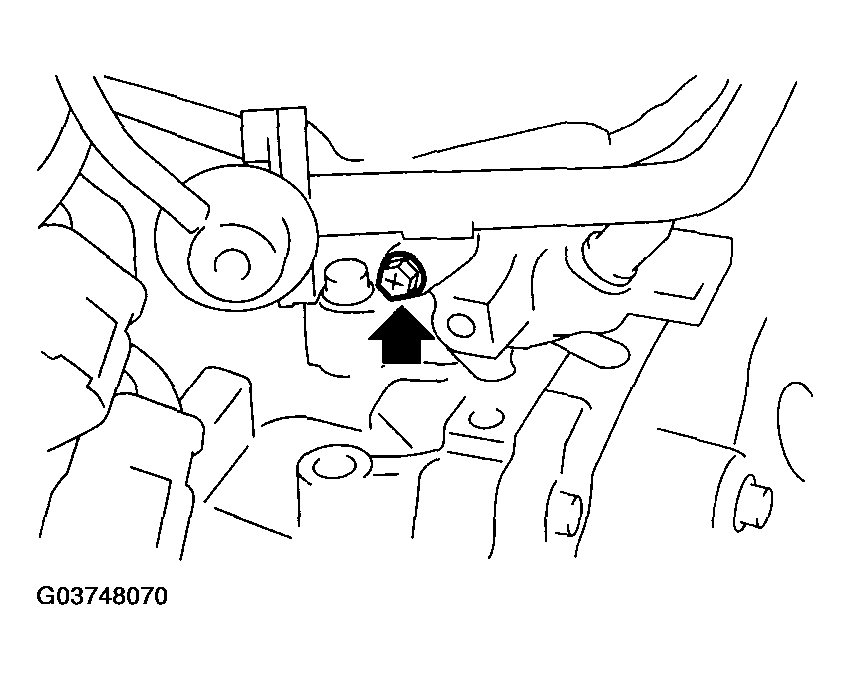

Fig 11: Removing Injector Pipe To Intake Manifold Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector from intake manifold.

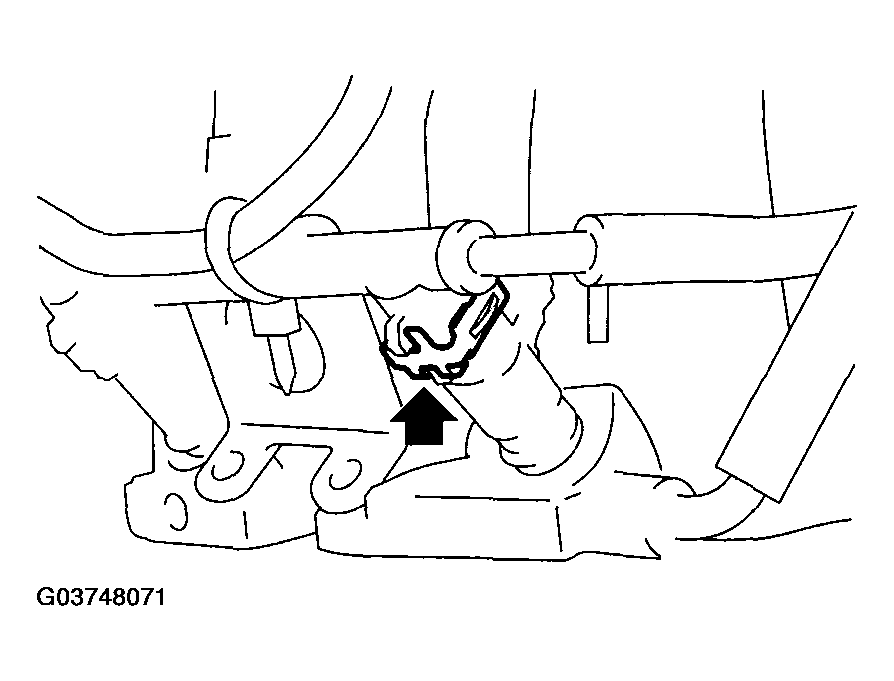

1. Remove fuel injector securing clip.

  Fig 12: Removing Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.

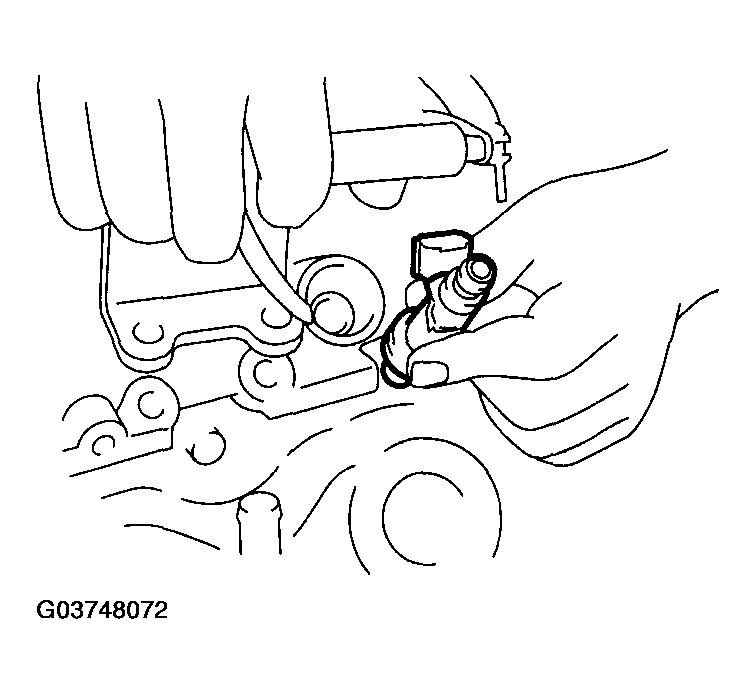

2. Remove fuel injector while lifting up fuel injector pipe.

  Fig 13: Removing Fuel Injector
  Courtesy of SUBARU OF AMERICA, INC.
