2005 Subaru Baja Base, StandardFACTORY OEM SERVICE PROCEDURE
Fuel Filler Pipe: Installation
- Hold fuel filler flap open.

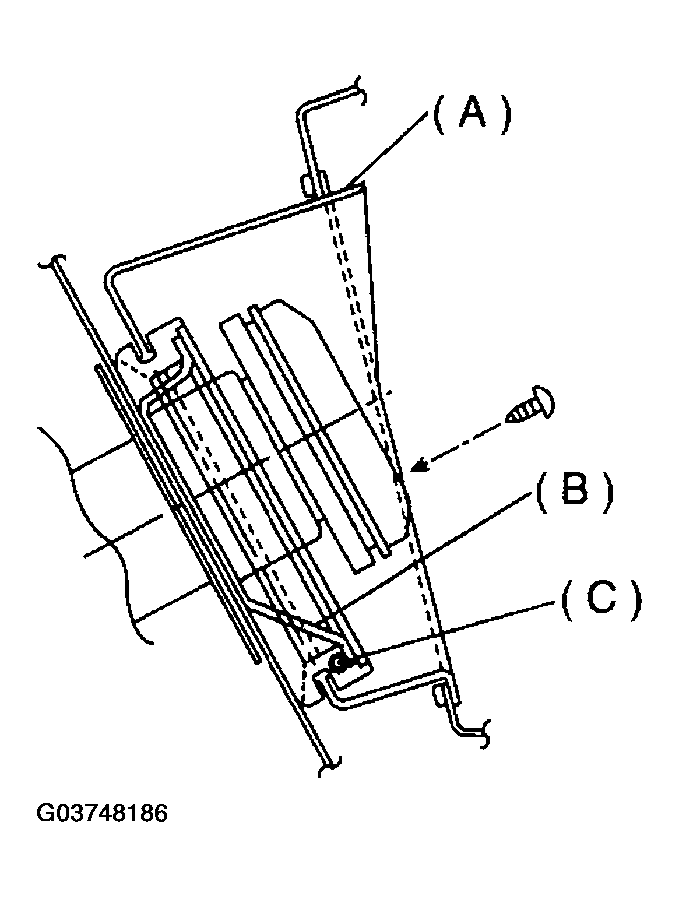

- Set fuel saucer (A) with rubber packing (C) and insert fuel filler pipe into hole from the inner side of apron.
- Align holes in fuel filler pipe neck and set cup (B), and tighten screws.NOTE: If edges of rubber packing are folded toward the inside, straighten it with a screwdriver.
