Front Oxygen (A/F) Sensor: Installation

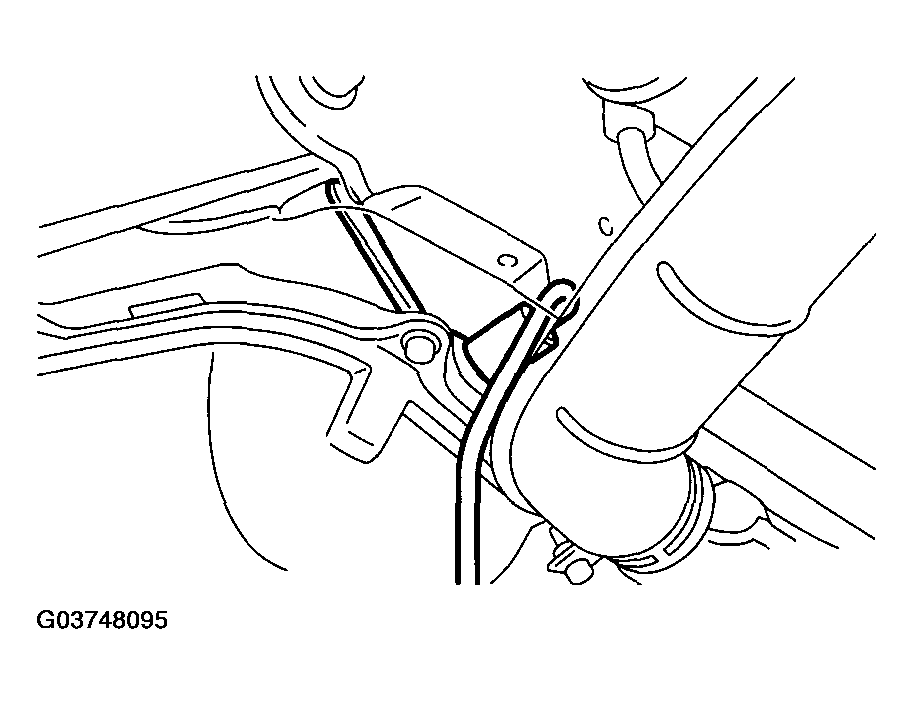

- Before installing front oxygen (A/F) sensor, apply anti-seize compound only to threaded portion of front oxygen (A/F) sensor to make the next removal easier.
Anti-seize compound:
SS-30 by JET LUBE
CAUTION: Never apply anti-seize compound to protector of front oxygen (A/F) sensor. - Install front oxygen (A/F) sensor.
Tightening torque:
21 N.m (2.1 kgf-m, 15.2 ft-lb)
- Lower the vehicle.

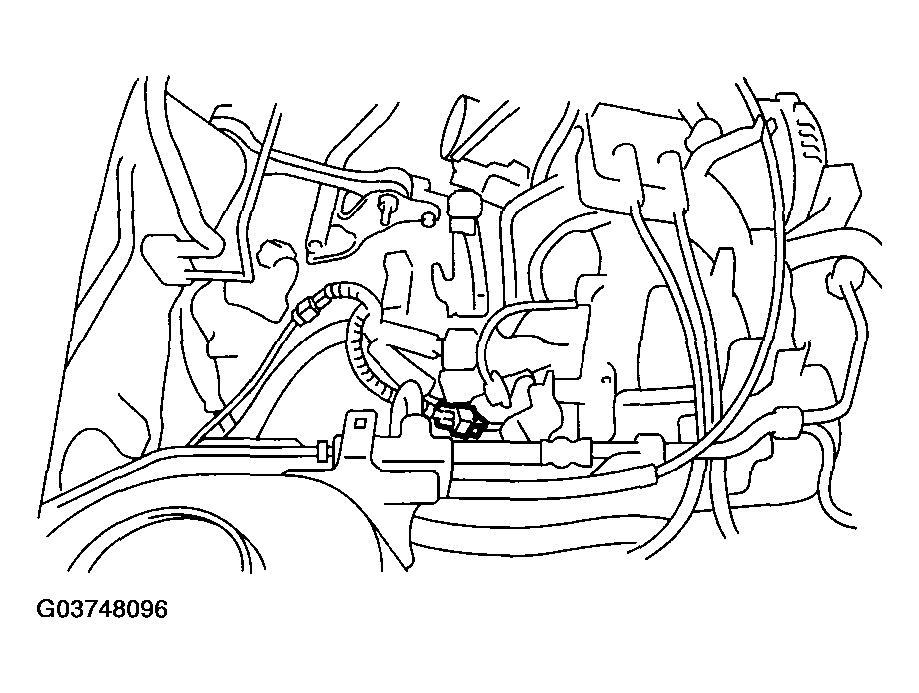

- Connect connector of front oxygen (A/F) sensor.

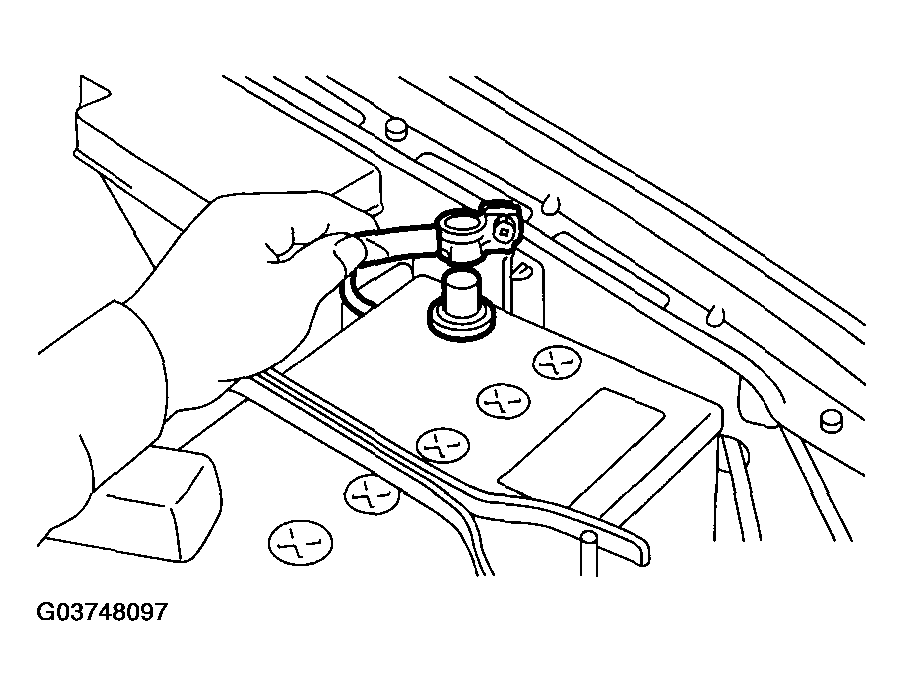

- Connect battery ground cable.
