2005 Subaru Baja Base, StandardFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Removal

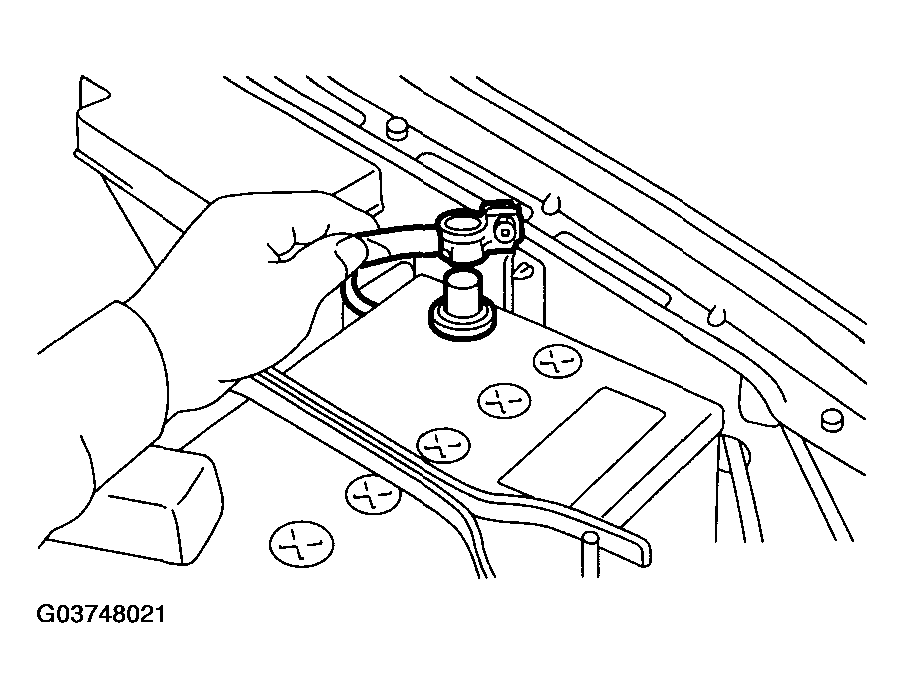

- Disconnect ground cable from battery.

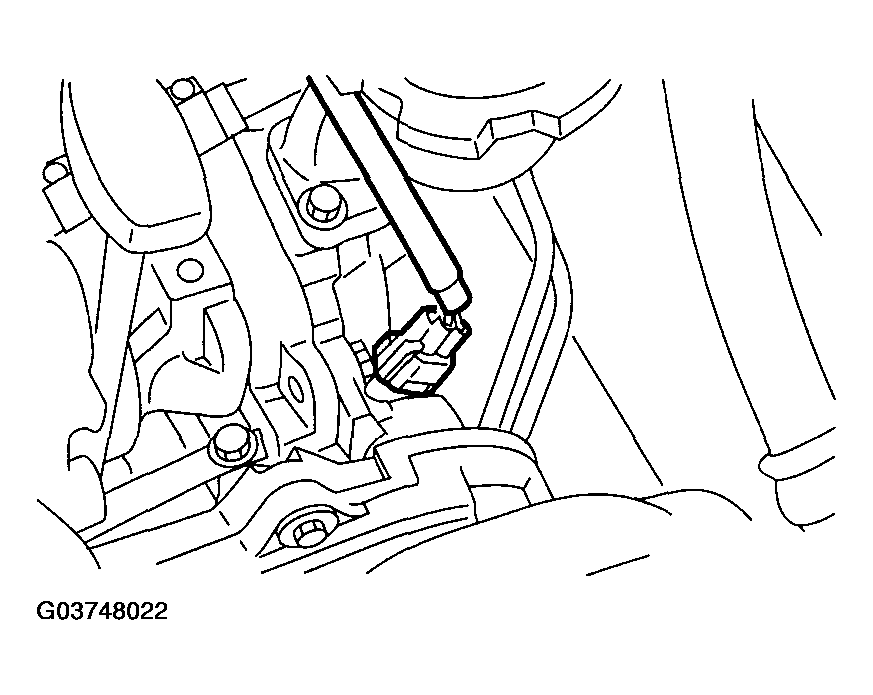

- Disconnect connector from camshaft position sensor.

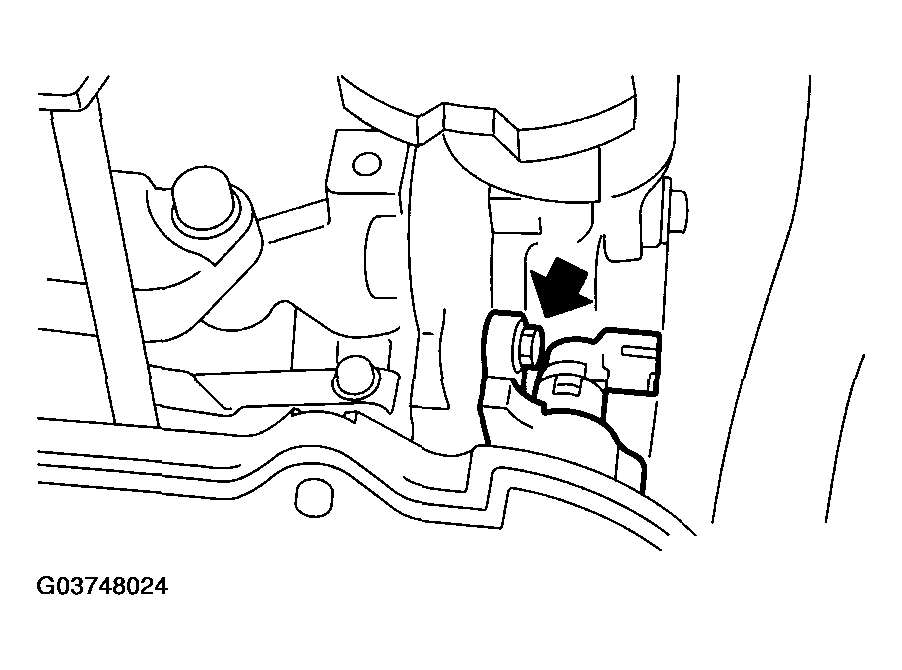

- Remove bolt which installs camshaft position sensor to camshaft position sensor support.

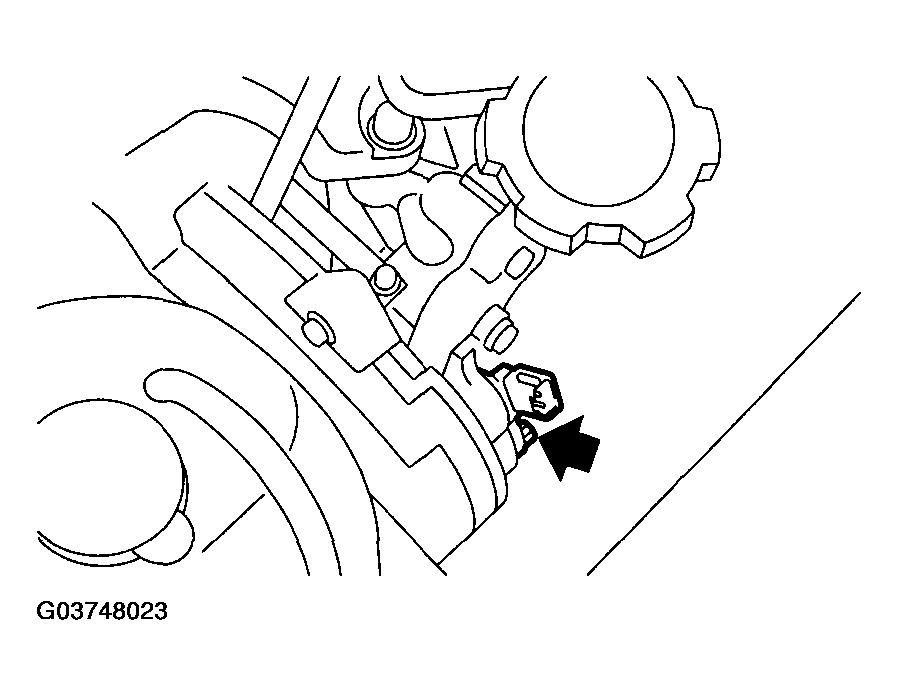

- Remove bolt which installs camshaft position sensor support to camshaft cap LH.

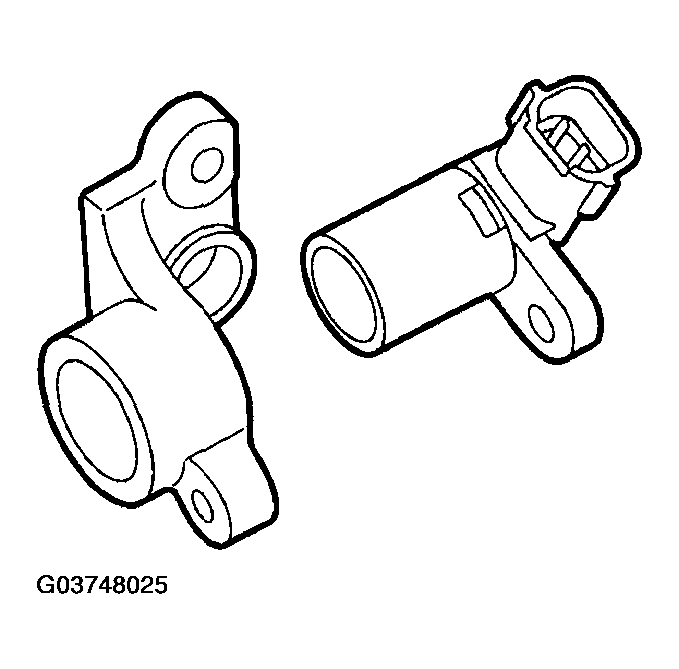

- Remove camshaft position sensor and camshaft position sensor support as a unit.
- Remove camshaft position sensor itself.
