2005 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Side Retainer

Install bearing outer race to side retainer.
Install a new oil seal using the ST and hammer.
ST 499797000 INSTALLER

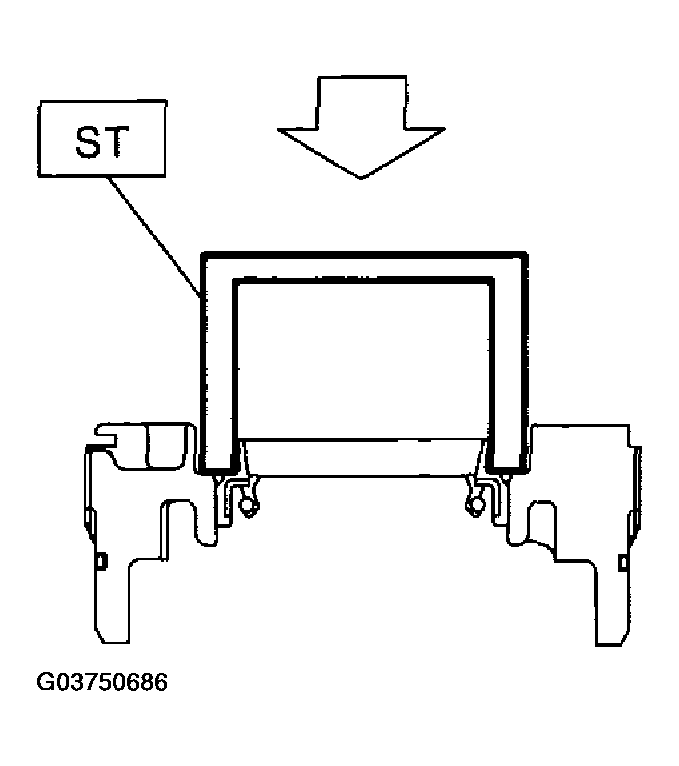

Fig 1: Installing Oil Seal Using Installer ST499797000
Courtesy of SUBARU OF AMERICA, INC.
Using the ST and hammer, install a new oil seal. (TURBO model)
ST 18675AA000 INSTALLER

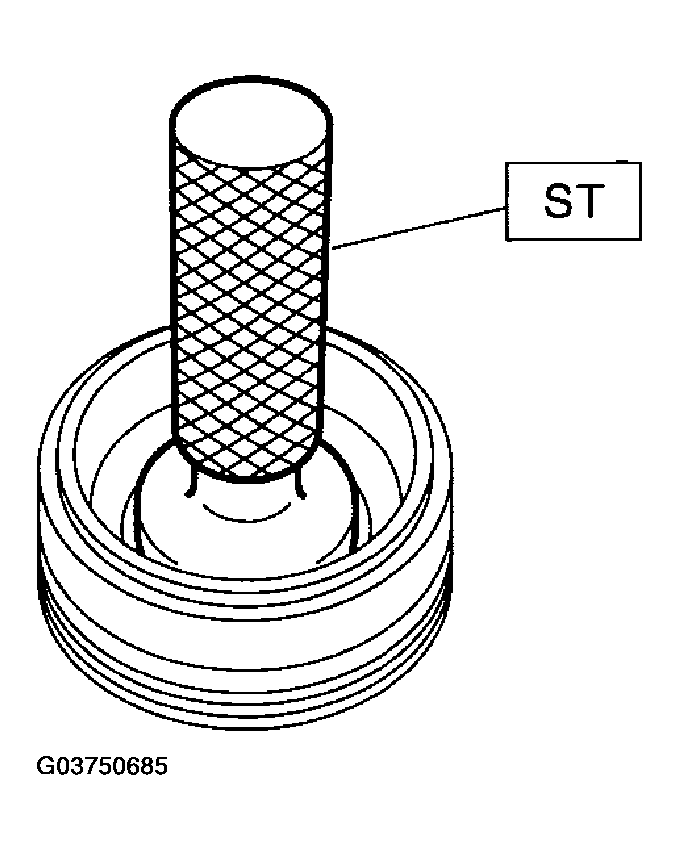

Fig 2: Installing Oil Seal Using Installer ST-18675AA000
Courtesy of SUBARU OF AMERICA, INC.
Install new O-ring.

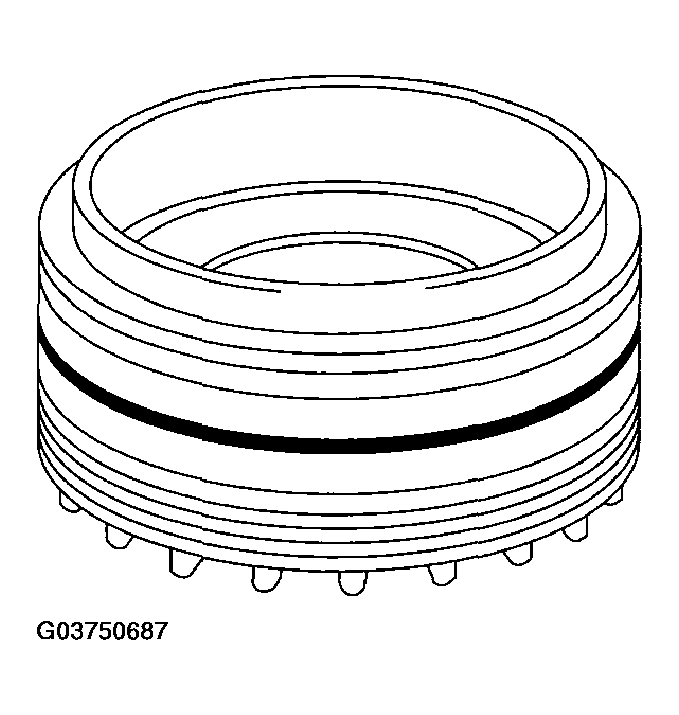

Fig 3: Installing New O-Ring
Courtesy of SUBARU OF AMERICA, INC.
