2005 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Extension Case: Installation

Attach the selected thrust needle bearing to the end surface of reduction drive gear with Vaseline.
NOTE: Install thrust needle bearing in the correct direction.
Install new gasket.
Install the extension case to the transmission case.
Tighten bolts to secure the case.
Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

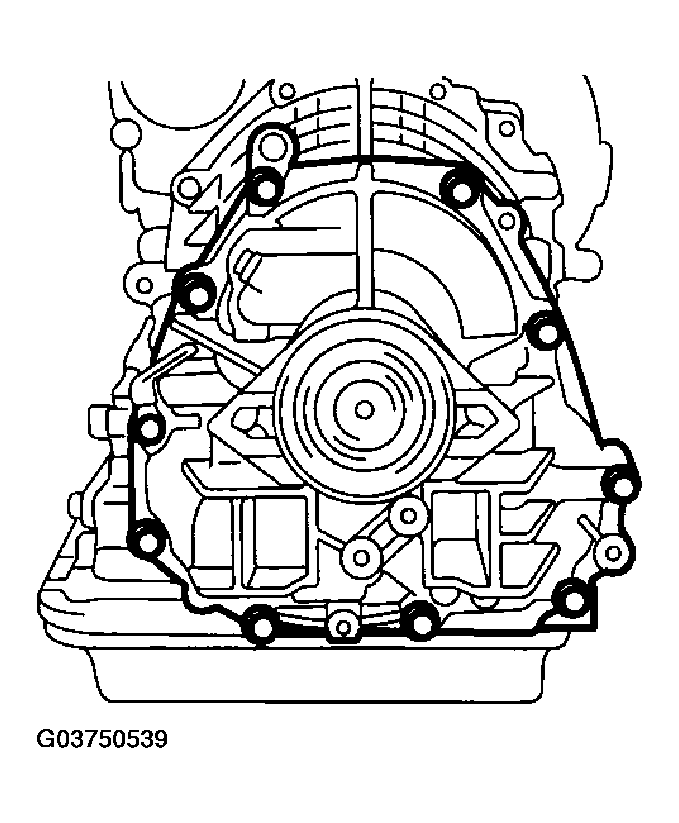

Fig 1: Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle speed sensor.
Tightening torque:

7 N.m (0.7 kgf-m, 5.1 ft-lb)
- MPT MODEL

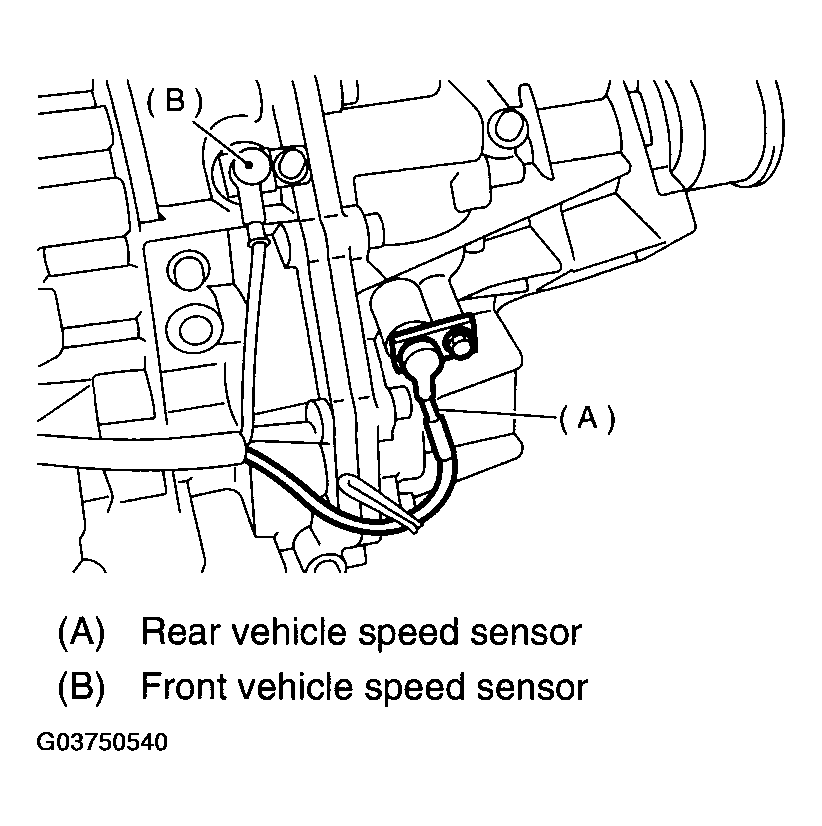

  Fig 2: Installing Rear Vehicle Speed Sensor - MPT Model
  Courtesy of SUBARU OF AMERICA, INC.
- VTD MODEL

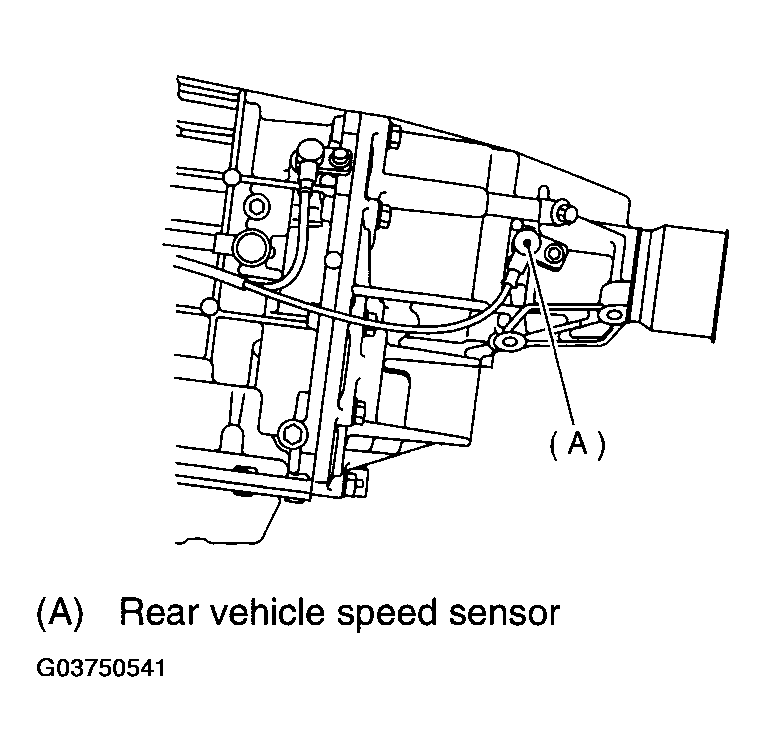

  Fig 3: Installing Rear Vehicle Speed Sensor - VTD Model
  Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. < Ref. to , INSTALLATION . >
