Non-Turbo Model
- Set the range select lever in "N" range.

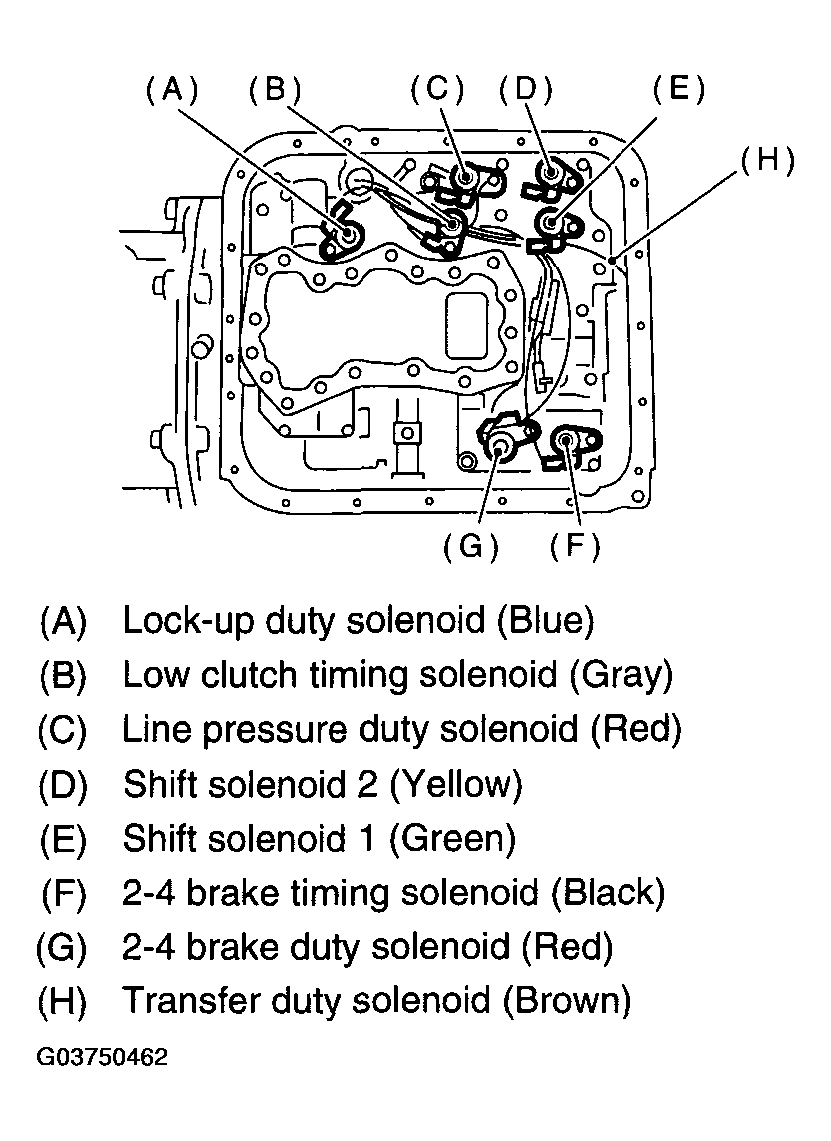

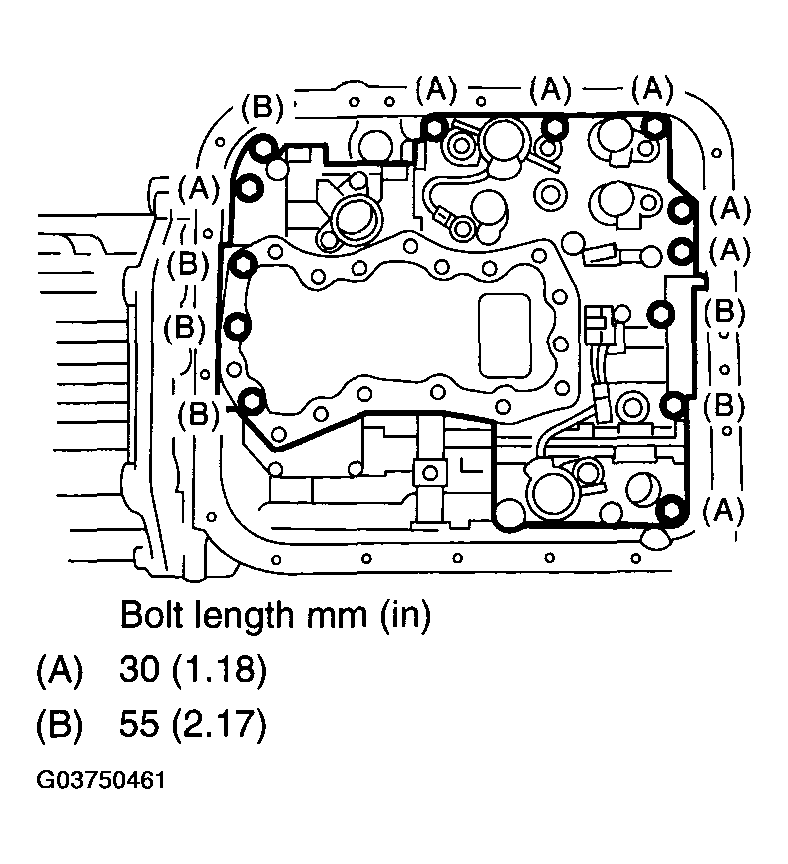

- Install the control valve, ATF temperature sensor and ground connectors.
Tightening torque:
8 N.m (0.8 kgf-m, 5.8 ft-lb)
- Connect all connectors.

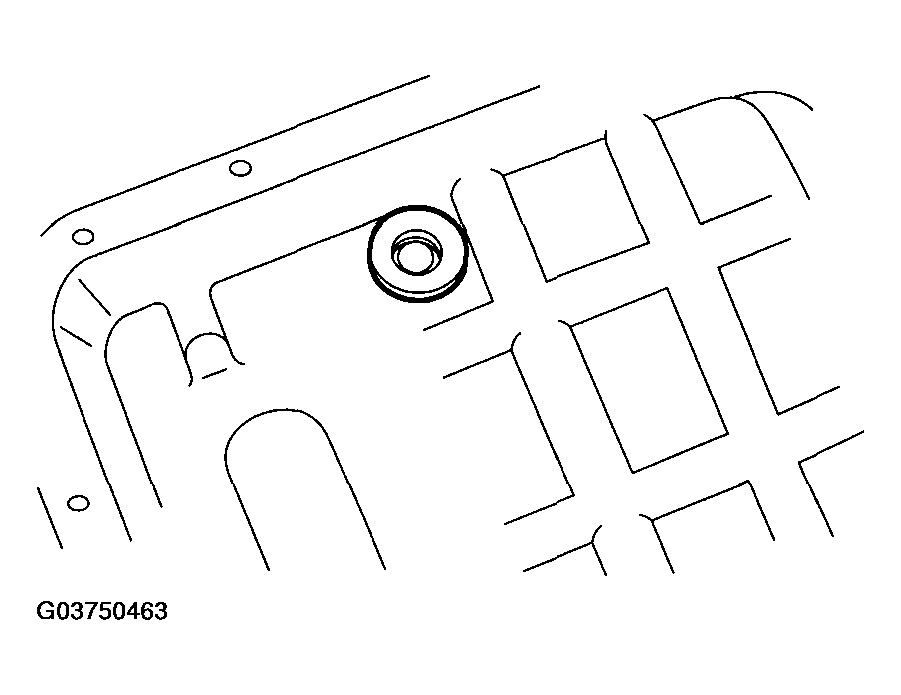

- Attach the magnet at specified position.

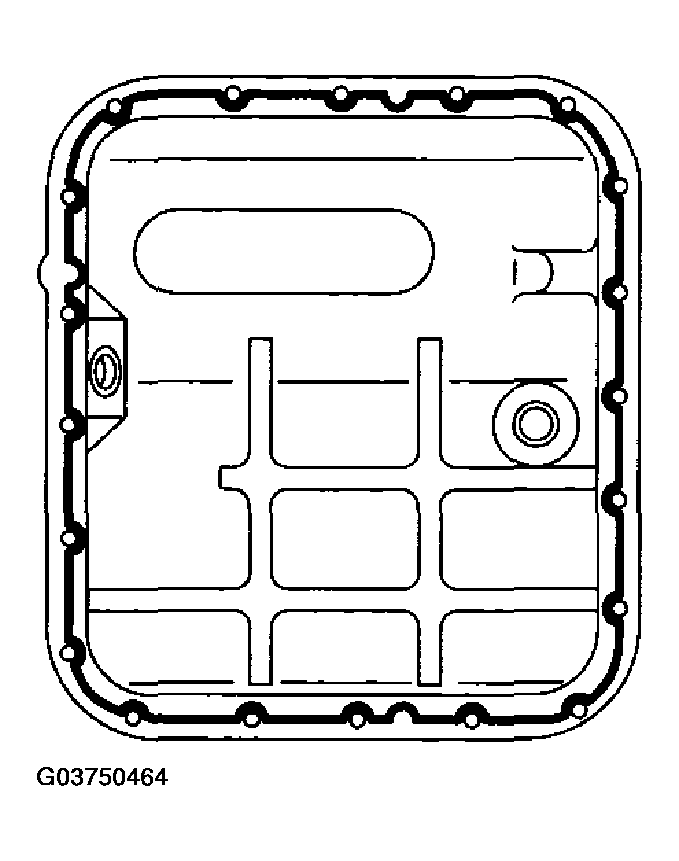

- Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:
THREE BOND 1217B (Part No. K0877YA020)

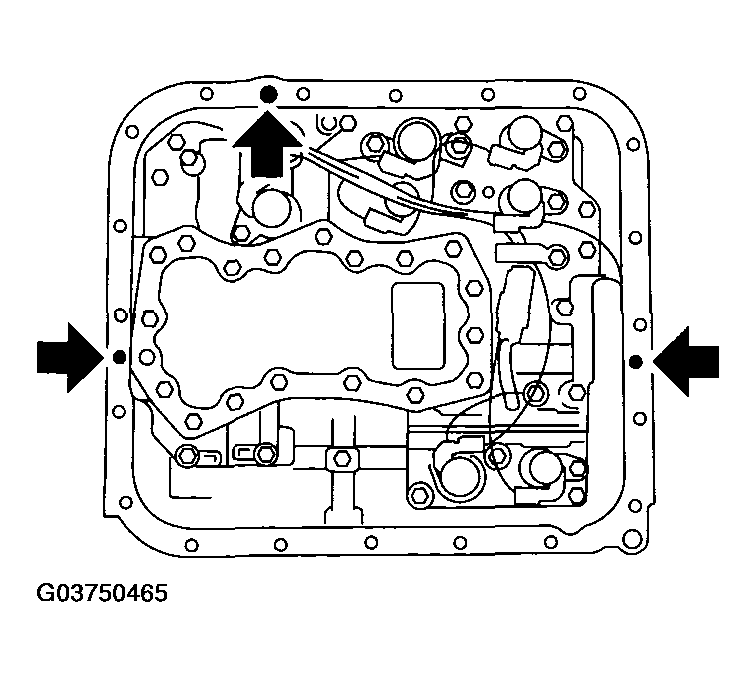

- Apply liquid gasket fully to three holes other than screw holes on transmission case.
Liquid gasket:
THREE BOND 1217B (Part No. K0877YA020)
- Install the oil pan by equally tightening the bolts.
Tightening torque:
5 N.m (0.5 kgf-m, 3.6 ft-lb)
- Pour ATF from the oil charge pipe.
Recommended fluid:
Dexron III
Fluid capacity:
Fill the same amount of fluid drained from drain plug hole.
- Check the level of ATF.
< Ref. to , AUTOMATIC TRANSMISSION FLUID . >
