2005 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Control Valve Body: Assembly

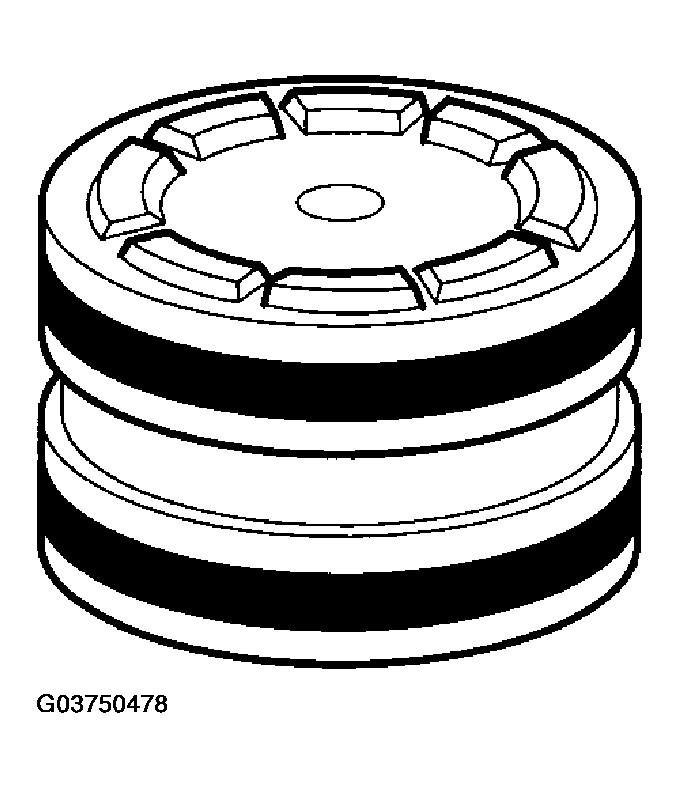

- Install a new seal ring to piston.
- Apply ATF to the seal ring.

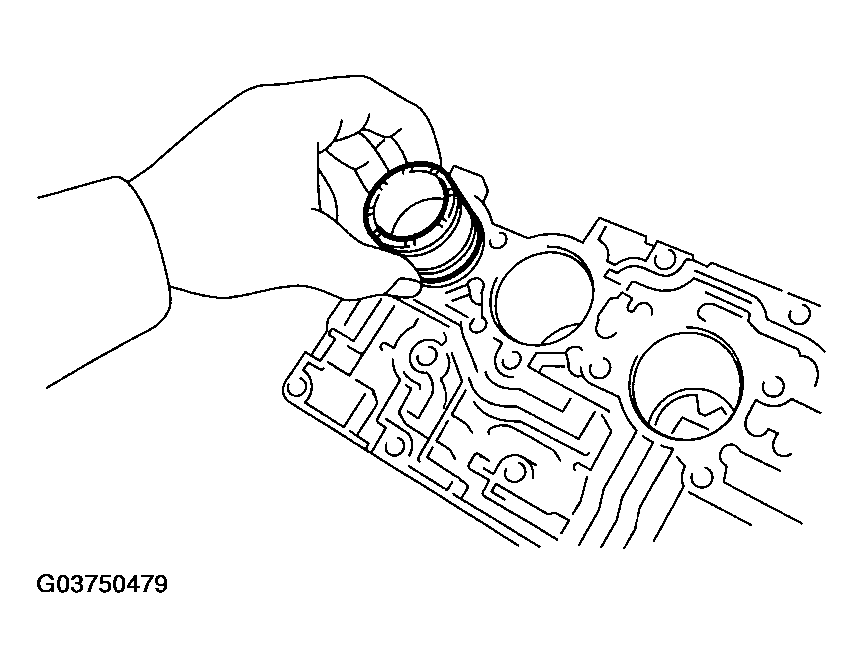

- Insert the piston fully into upper valve body.

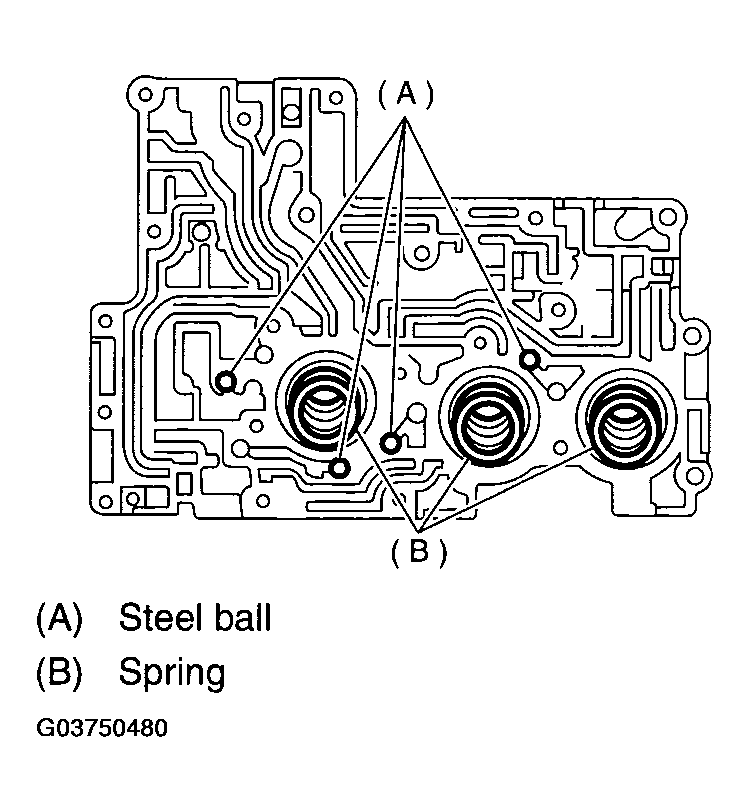

- Install the spring and four steel balls to specified positions of upper valve body.

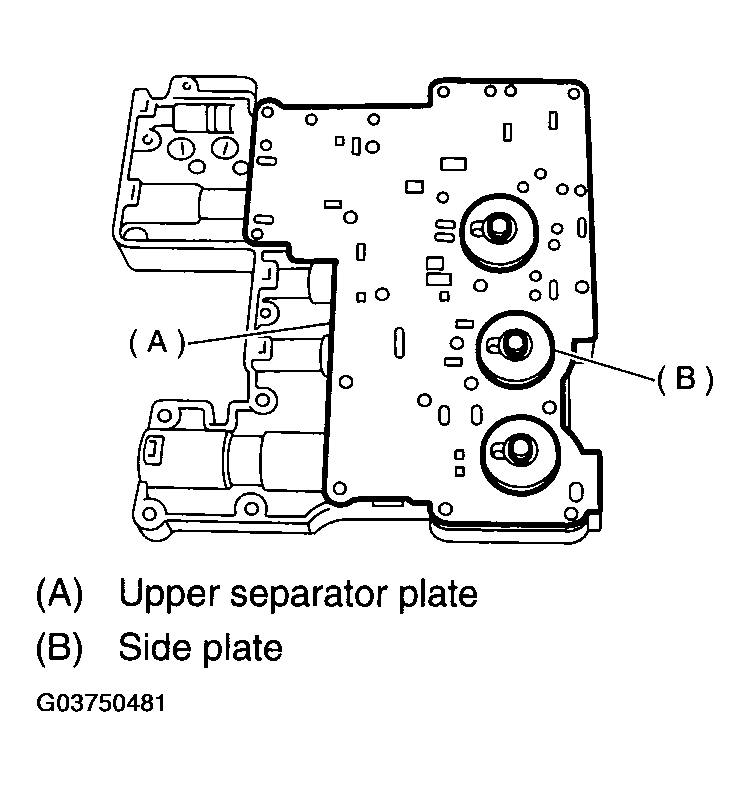

- Align the hole in side plate with the hole in separator plate, and then install support plate and upper separator plate to middle valve body.
Tightening torque:
8 N.m (0.8 kgf-m, 5.8 ft-lb)

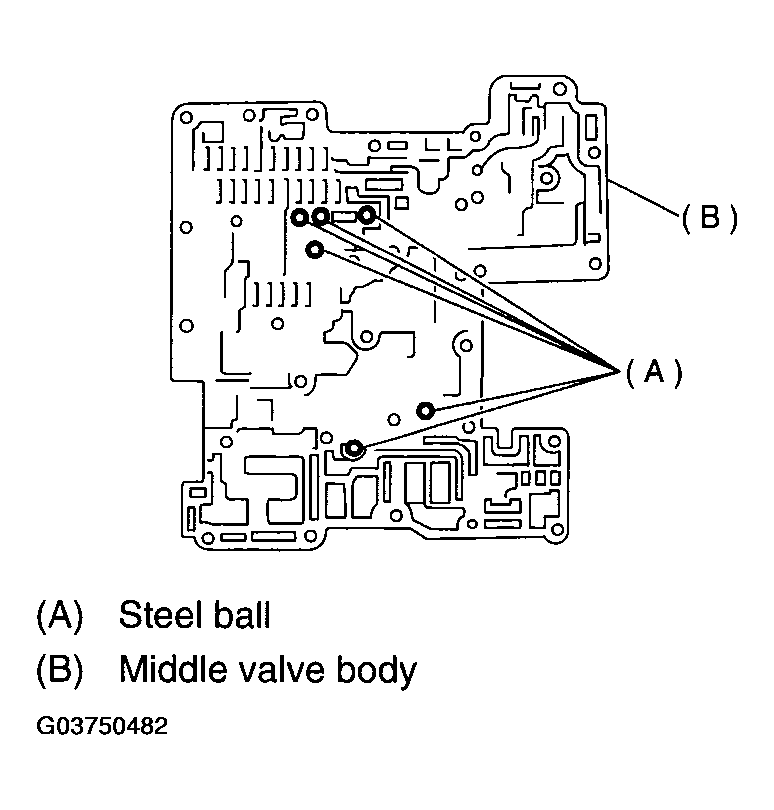

- Insert six steel balls in their proper positions to middle valve body.
- Install three filters to lower valve body.NOTE: Pay attention to the location of filters.
