2005 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE

How To Use SUBARU Select Monitor

  1. Prepare Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Description. >

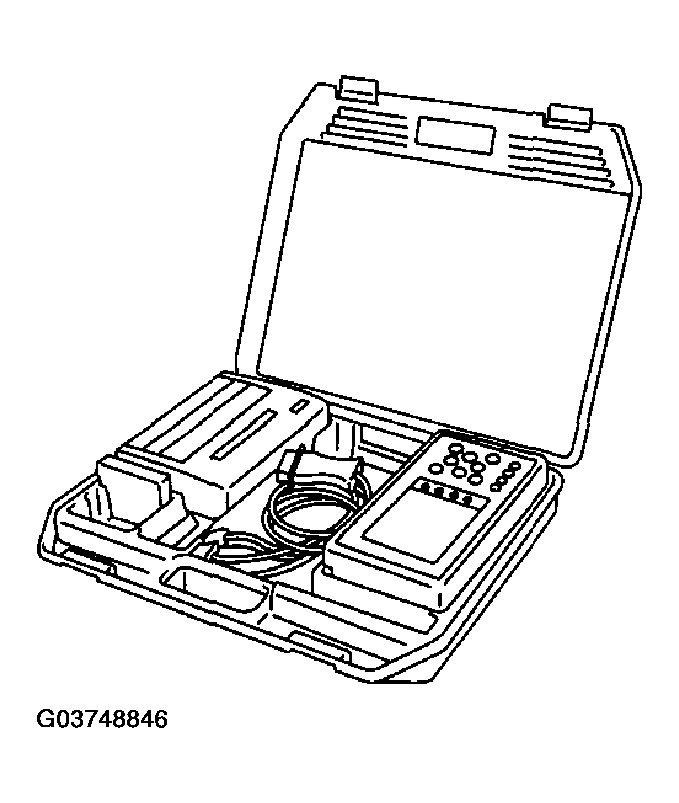

    Fig 1: View Of Subaru Select Monitor Kit
    G03748846Courtesy of SUBARU OF AMERICA, INC.
  2. Connect diagnosis cable to Subaru Select Monitor.
  3. Insert cartridge into Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >

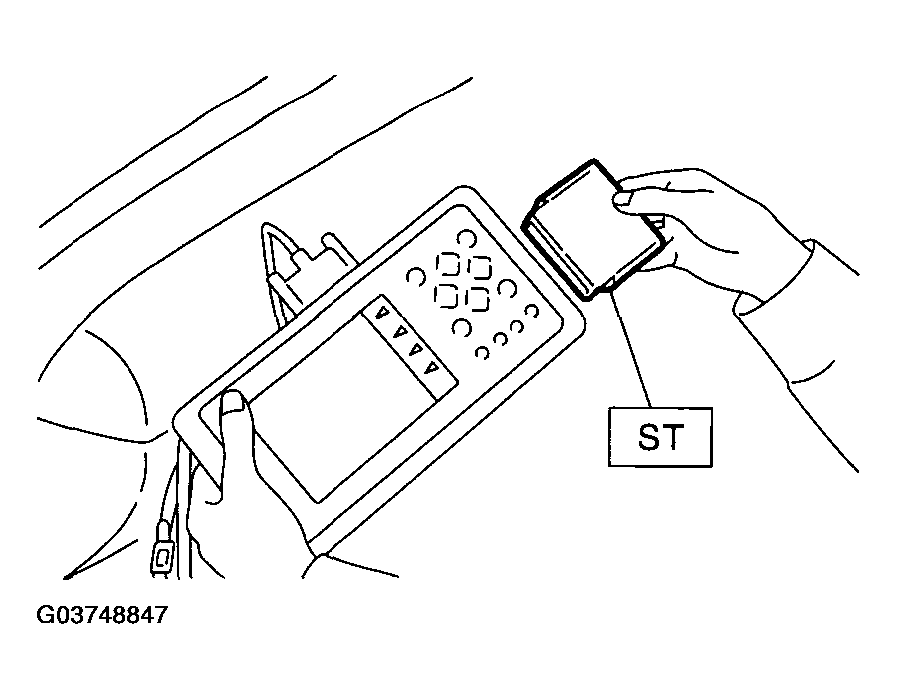

    Fig 2: Inserting Cartridge Into Subaru Select Monitor
    G03748847Courtesy of SUBARU OF AMERICA, INC.
  4. Connect Subaru Select Monitor to data link connector.
    1. Data link connector (A) located in the lower portion of the instrument panel (on the driver's side).

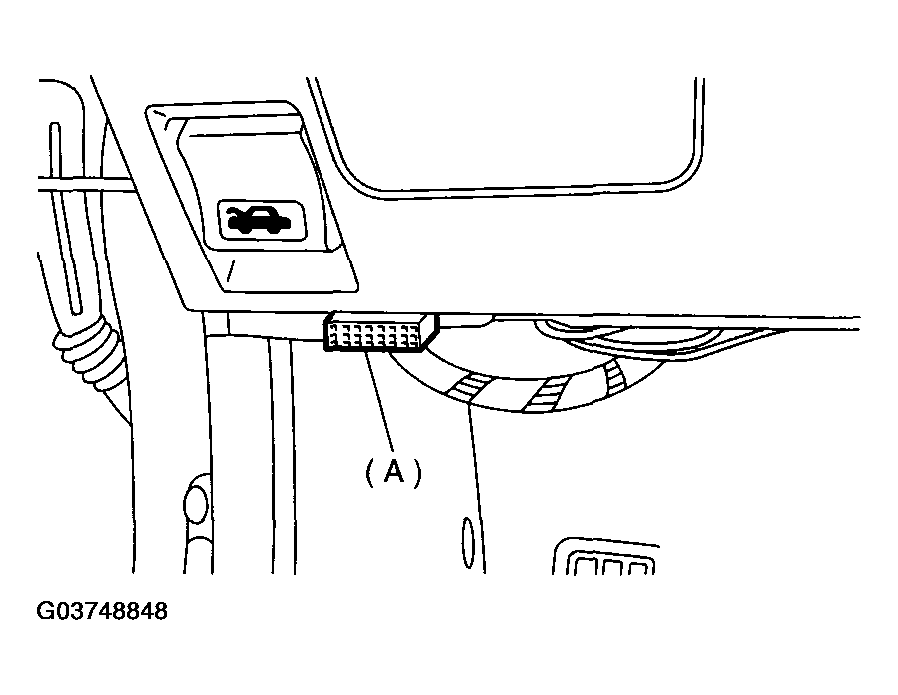

      Fig 3: Connecting Subaru Select Monitor To Data Link Connector
      G03748848Courtesy of SUBARU OF AMERICA, INC.
    2. Connect diagnosis cable to data link connector.
    CAUTION: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.
  5. Turn ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.

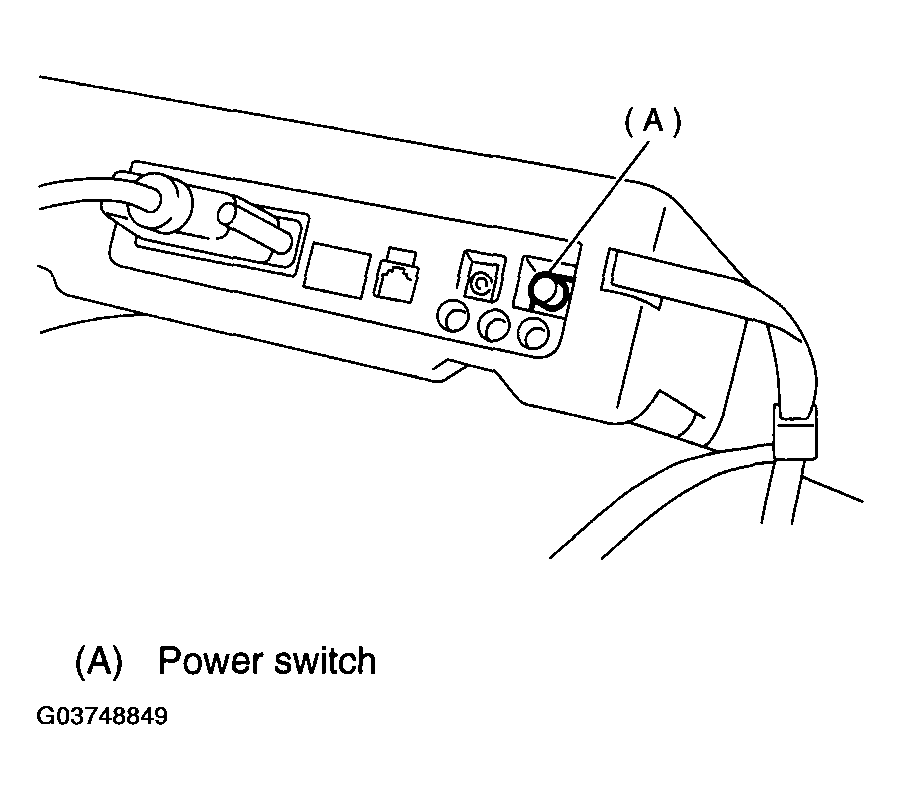

    Fig 4: Identifying Power Switch
    G03748849Courtesy of SUBARU OF AMERICA, INC.
  6. Using Subaru Select Monitor, call up diagnostic trouble code(s) and various data, then record them.
