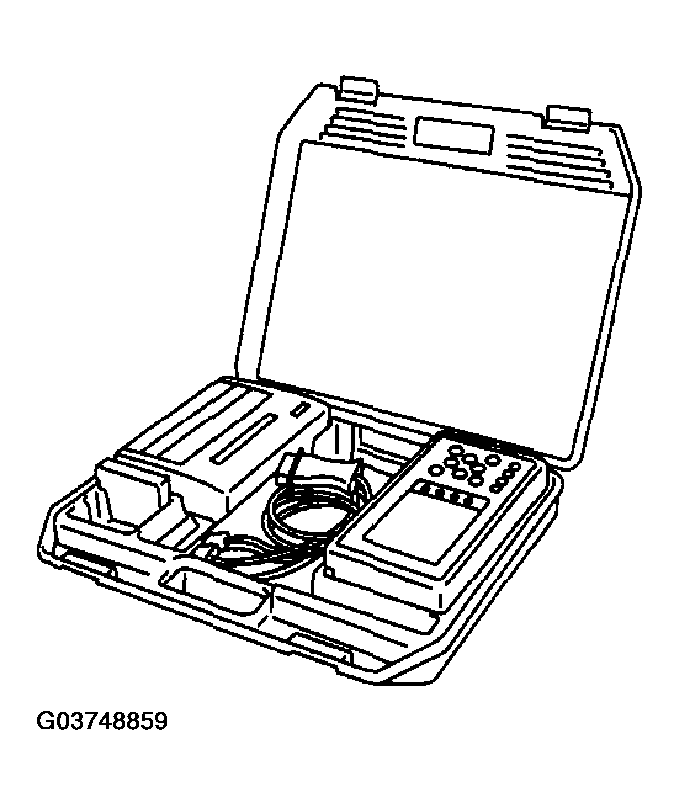

Prepare Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Description. >

Fig 1: Subaru Select Monitor Kit
Courtesy of SUBARU OF AMERICA, INC.
Connect diagnosis cable to Subaru Select Monitor.

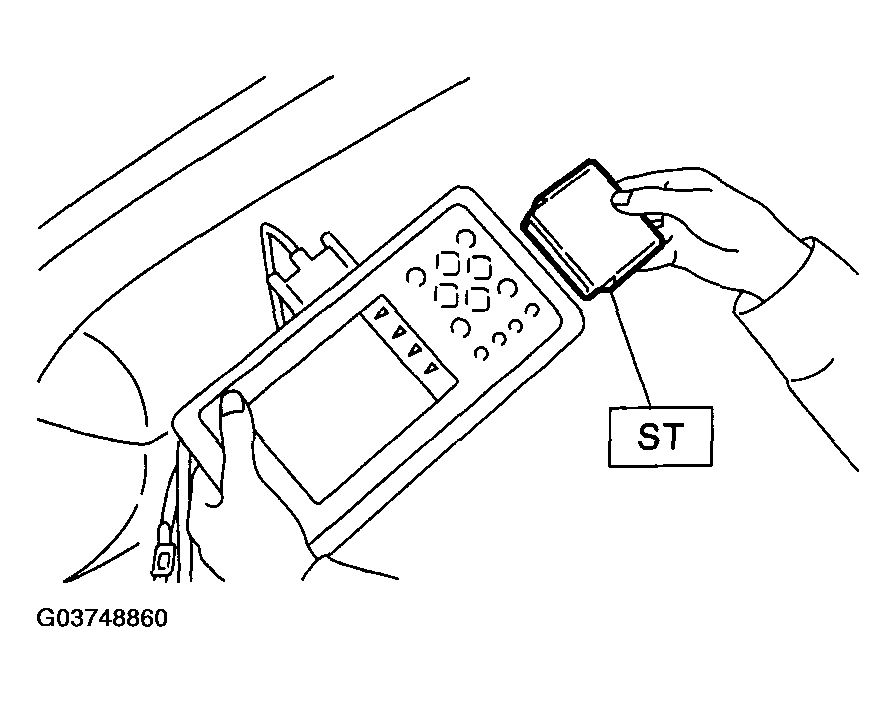

Insert cartridge into Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >

Fig 2: Inserting Cartridge Into Subaru Select Monitor
Courtesy of SUBARU OF AMERICA, INC.

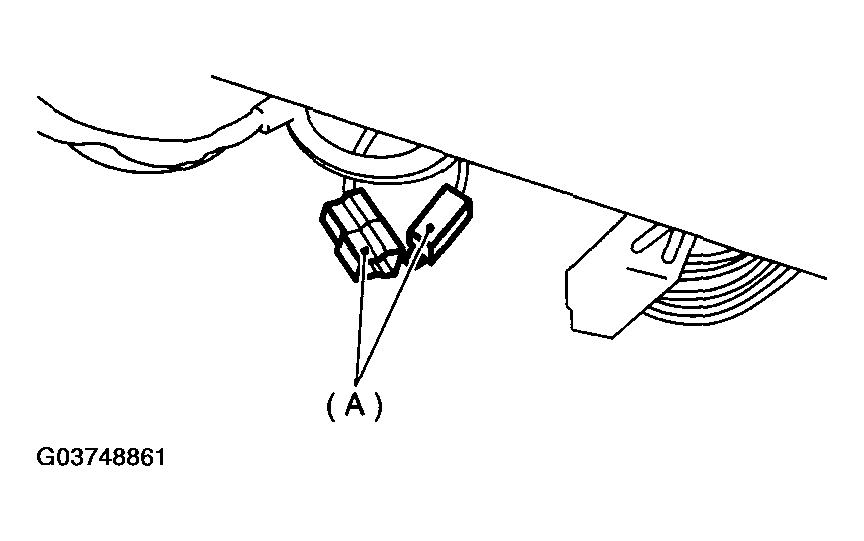

Connect test mode connector (A) at the lower portion of instrument panel (on the driver's side), to the side of the center console box.

Fig 3: Connecting Test Mode Connector At Lower Portion Of Instrument Panel (On Driver's Side), To Side Of Center Console Box
Courtesy of SUBARU OF AMERICA, INC.
Connect Subaru Select Monitor to data link connector.

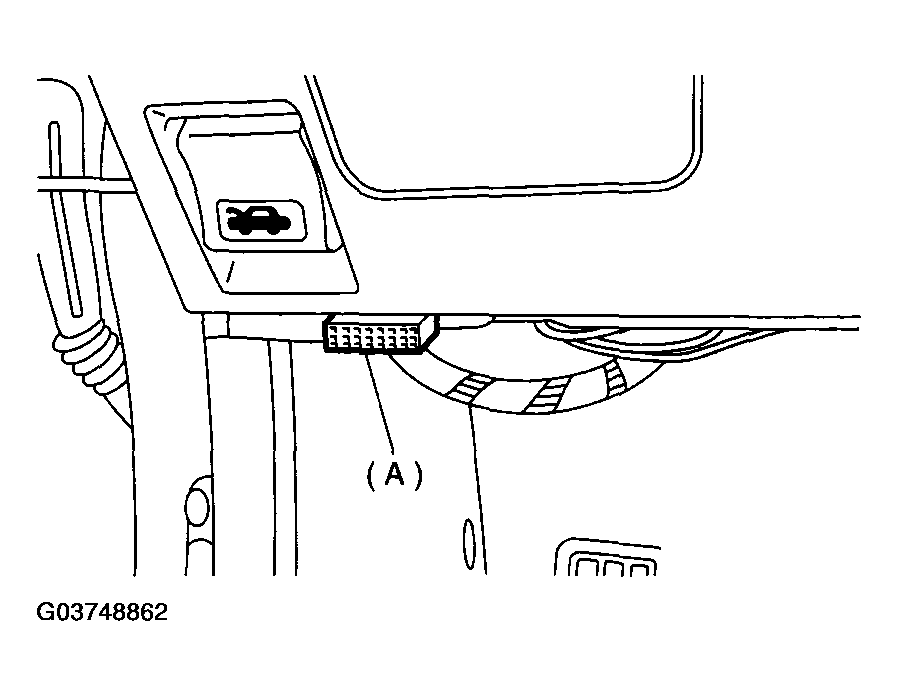

1. Connect Subaru Select Monitor to data link connector (A) located in the lower portion of the instrument panel (on the driver's side).

  Fig 4: Connecting Subaru Select Monitor To Data Link Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect diagnosis cable to data link connector.
CAUTION: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.

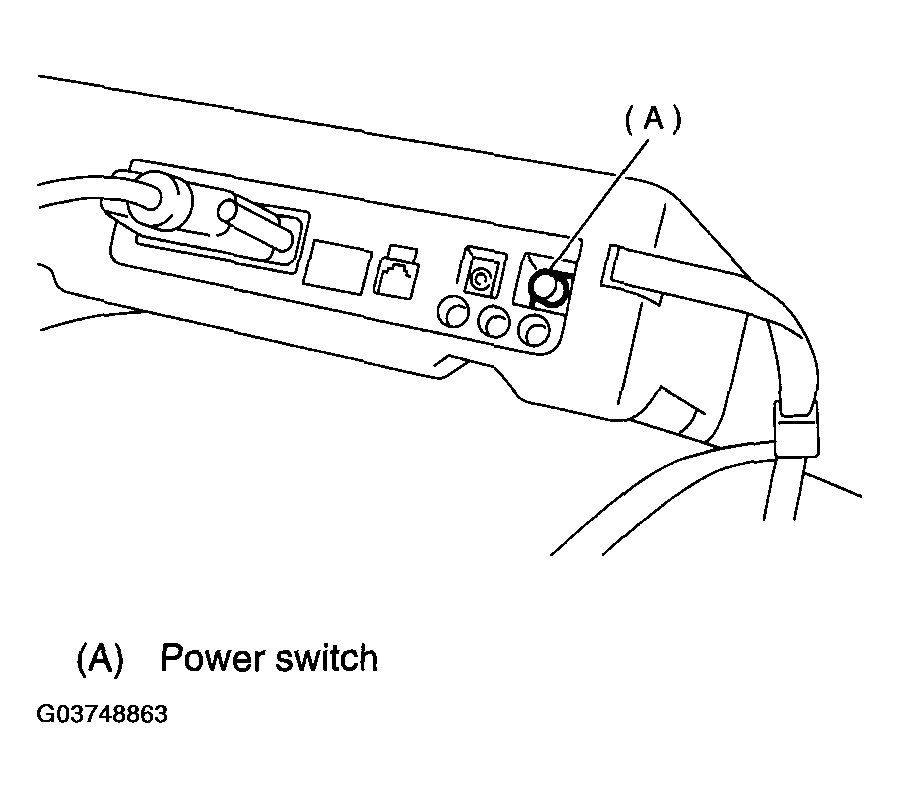

Turn ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.

Fig 5: Identifying Power Switch
Courtesy of SUBARU OF AMERICA, INC.
On the << Main Menu >> display screen, select the {2. Each System Check} and press the [YES] key.
On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
Press the [YES] key after displayed the information of engine type.
On the << Engine Diagnosis >> display screen, select the {System Operation Check Mode} and press the [YES] key.
On the << System Operation Check Mode >> display screen, select the {Actuator ON/OFF Operation} and press the [YES] key.
Select the desired compulsory actuator on the << Actuator ON/OFF Operation >> display screen and press the [YES] key.

Pressing the [NO] key completes the compulsory operation check mode. The display will then return to the << Actuator ON/OFF Operation >> screen.

A list of the support data is shown in the following table.

SUPPORT DATA LIST

Contents	Display
Compulsory fuel pump relay operation check	Fuel Pump Relay
Compulsory radiator fan relay operation check	Radiator Fan Relay
Compulsory air conditioning relay operation check	A/C Compressor Relay
Compulsory purge control solenoid valve operation check	CPC Solenoid Valve
Compulsory air assist injector solenoid valve operation check	AAI Solenoid Valve
Compulsory fuel tank pressure control solenoid valve operation check	PCV Solenoid Valve
Compulsory drain valve operation check	Vent Control Solenoid Valve
Fuel tank sensor control valve operation check	Fuel Tank Sensor Control Valve

NOTE:

The following parts will be displayed but not functional.

PART DISPLAYED

Display
ASV Solenoid Valve
FICD Solenoid
Pressure Switching Sol. 1
Pressure Switching Sol. 2
Turbo Pressure Control Solenoid
Exhaust Bypass Valve
EGR Valve Solenoid

For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
